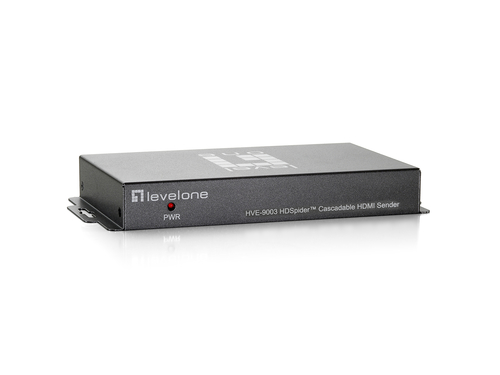

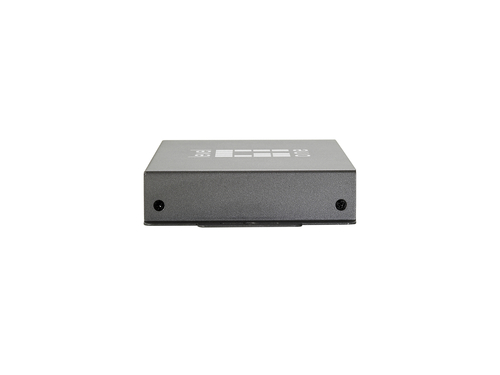

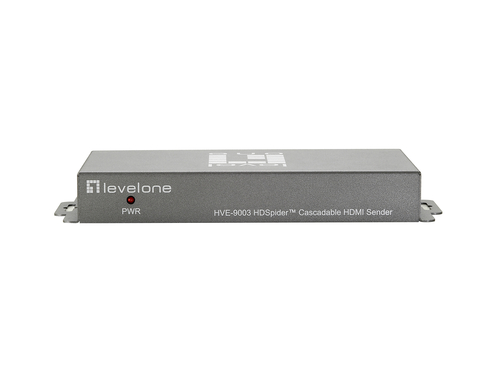

HDSpider™ HDMI over Cat.5 Cascadable Transmitter
Model HVE-9003EAN 4015867145371
32 specifications
- TypeAV transmitter
- Weight530 g
- ColourGrey
- RJ-45 input ports1
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Type
- AV transmitter
- Weight
- 530 g
- Colour
- Grey
- RJ-45 input ports
- 1
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9003
- Part number
- HVE-9003
- EAN / UPC
- 4015867145371, 4015867145388
- Also known as
- LevelOne HDSpider™ HDMI over Cat.5 Cascadable Transmitter
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 60 m |
| Audio system | Multichannel |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Supported video modes | 720p, 1080i, 1080p |
| Product colour | Grey |

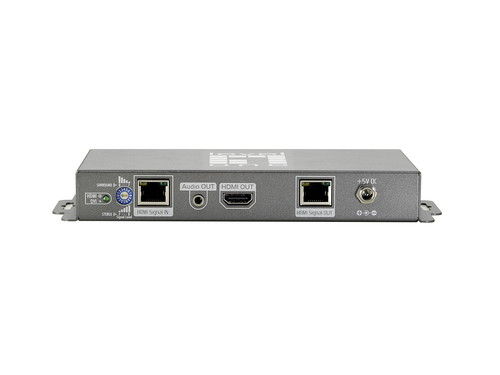

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI version | 1.3c |
| Number of HDMI outputs | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Current | 4 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 210 x 108 x 27 mm |
| Width | 210 mm |
| Depth | 108 mm |
| Height | 27 mm |
| Weight | 530 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 320 mm |
| Package height | 120 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
