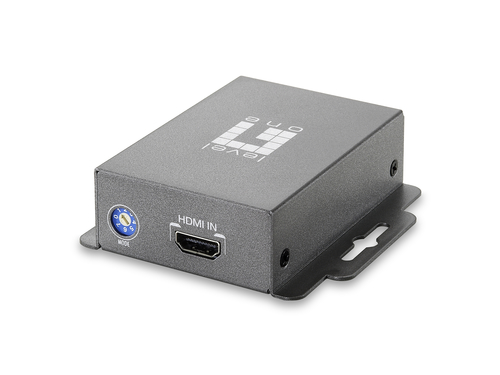

HDSpider™ HDMI over Cat.5 Transmitter
Model HVE-9001EAN 878742005412
31 specifications
- TypeAV transmitter
- Weight405 g
- ColourGrey
- RJ-45 output ports1
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Type
- AV transmitter
- Weight
- 405 g
- Colour
- Grey
- RJ-45 output ports
- 1
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9001
- Part number
- HVE-9001
- EAN / UPC
- 878742005412, 4015867145340
- Also known as
- LevelOne HDSpider™ HDMI over Cat.5 Transmitter
Specifications
31 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 60 m |
| Audio system | Multichannel |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Supported video modes | 720p, 1080i, 1080p |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|

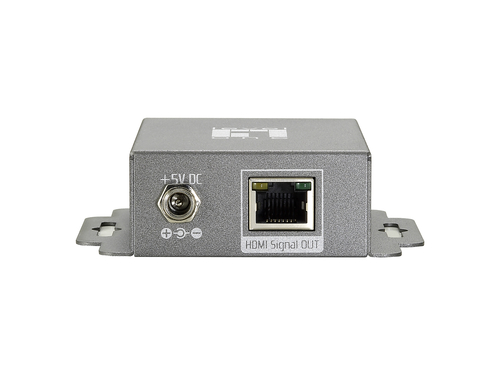

| RJ-45 output ports | 1 |

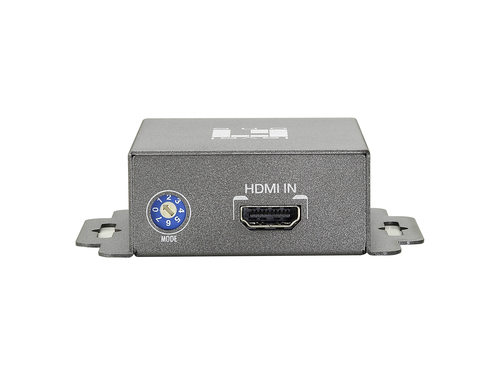

| HDMI in | 1 |
| HDMI version | 1.3c |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (max) | 3 W |
| Current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 90 x 93 x 25 mm |
| Width | 60 mm |
| Depth | 93 mm |
| Height | 25 mm |
| Weight | 405 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 200 mm |
| Package height | 75 mm |
| Package weight | 460 g |

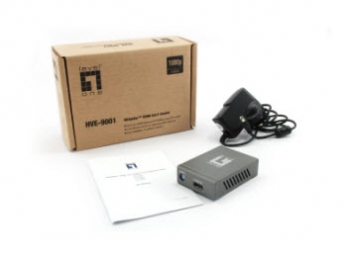

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
