HVE-8111 AV extender AV transmitter & receiver Black
Model HVE-8111EAN 4015867239049
33 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%

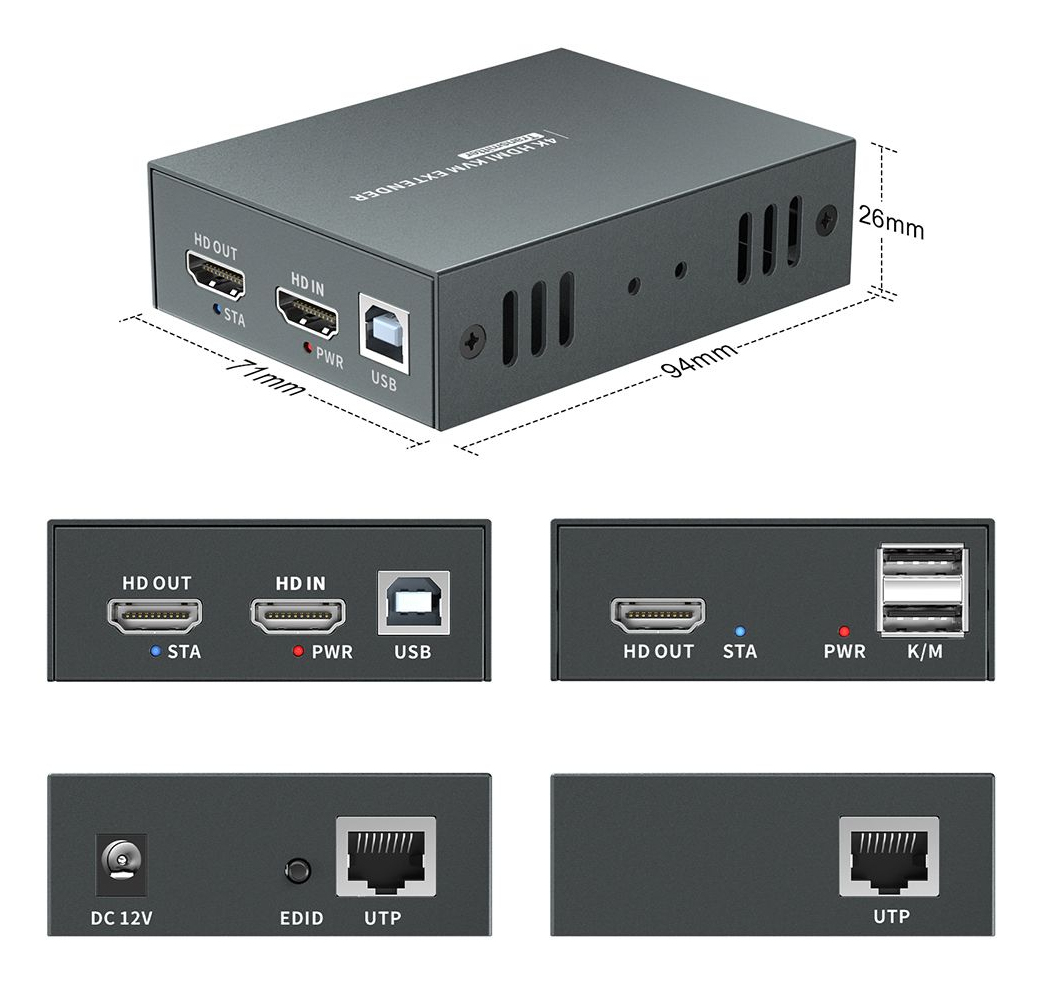

- Receiver dimensions (WxDxH)94 x 70 x 28 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 94 x 70 x 28 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-8111
- Part number
- HVE-8111
- EAN / UPC
- 4015867239049
- Also known as
- LevelOne HVE-8111 AV extender AV transmitter & receiver Black
Specifications
33 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| USB ports quantity | 3 |
| USB version | 1.1 |
| USB connector type | USB Type-A, USB Type-B |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 5.16 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 94 x 70 x 28 mm |
| Receiver weight | 500 g |
| Transmitter dimensions (WxDxH) | 94 x 70 x 28 mm |
| Transmitter weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
