LevelOne HDMI over IP PoE Receiver

LevelOne HDMI over IP PoE Receiver

Model HVE-6501REAN 846359019849

39 specifications
  • TypeAV receiver
  • Weight800 g
  • ColourGrey
  • VGA (D-Sub) input ports1
  • Operating voltage5 V
  • Operating relative humidity (H-H)10 - 85%
See all specifications

Overview

Type
AV receiver
Weight
800 g
Colour
Grey
VGA (D-Sub) input ports
1
Operating voltage
5 V
Operating relative humidity (H-H)
10 - 85%
Brand
LevelOne
Category
AV Extender
Model
HVE-6501R
Part number
HVE-6501R
EAN / UPC
846359019849, 4015867174876
Also known as
LevelOne HDMI over IP PoE Receiver

Specifications

39 specifications in 8 groups

Features

TypeAV receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6, Cat7
HDCPYes
HDCP & EDID bypassYes

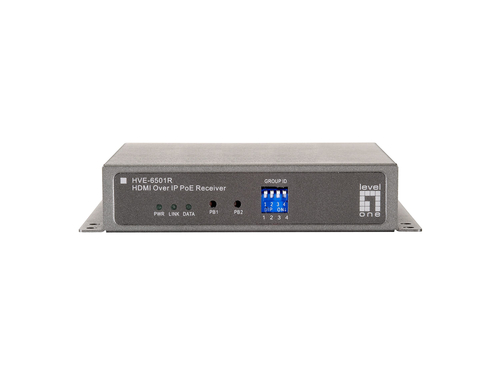

LED indicatorsData, Link, Power
Networking standardsIEEE 802.3af
Supported video modes720p, 1080p
Product colourGrey
CertificationCE, FCC

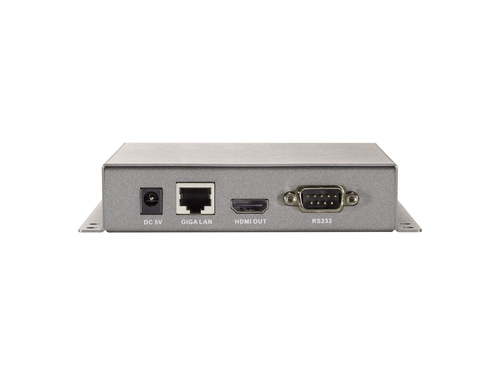

Ports & interfaces

VGA (D-Sub) input ports1
HDMI version1.3
Number of HDMI outputs1
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

Operating voltage5 V
Power consumption (receiver) (max)8 W
Current1 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)10 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-10 - 80 °C

Weight & dimensions

Width114 mm
Depth140 mm
Height28 mm
Weight800 g
Receiver dimensions (WxDxH)140 x 114 x 28 mm
Receiver weight800 g

Packaging data

Package width148 mm
Package depth240 mm
Package height80 mm
Package weight740 g

Packaging content

AC adapter includedYes
Quick start guideYes
ManualYes

Technical details

Country of originTaiwan
Audio supportYes
