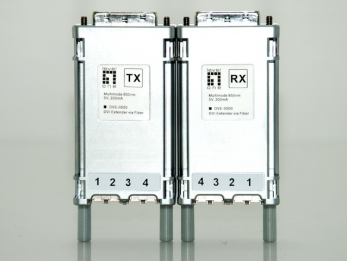

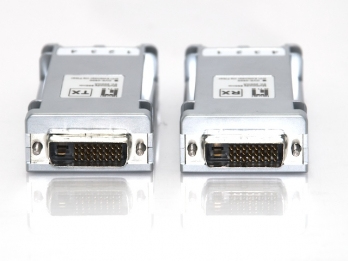

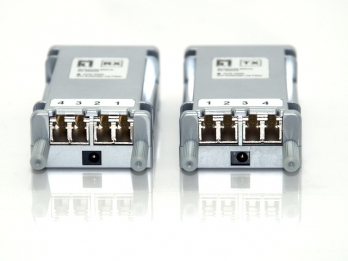

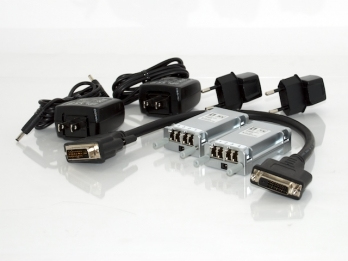

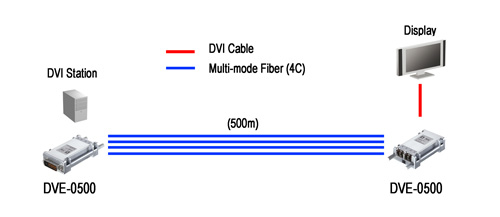

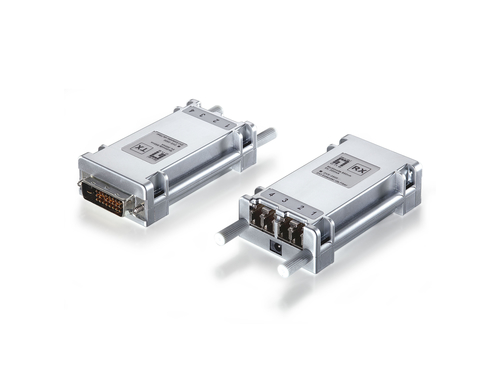

DVI Extender via 4 Fiber Channel, LC 500m
Model DVE-0500EAN 4015867136621
17 specifications
- TypeAV transmitter & receiver
- Weight65 g
- ColourGrey
- AC input voltage100-240 V
- Operating temperature (T-T)0 - 50 °C
- Dimensions (WxDxH)40 x 90 x 193.6 mm
Overview
- Type
- AV transmitter & receiver
- Weight
- 65 g
- Colour
- Grey
- AC input voltage
- 100-240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Dimensions (WxDxH)
- 40 x 90 x 193.6 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- DVE-0500
- Part number
- DVE-0500
- EAN / UPC
- 4015867136621
- Also known as
- LevelOne DVI Extender via 4 Fiber Channel, LC 500m
Specifications
17 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 500 m |
| Bandwidth | 1.65 Gbit/s |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA) |
| Wavelengths supported | 850 nm |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 180 mA |
| Power consumption (receiver) (max) | 280 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 40 x 90 x 193.6 mm |
| Weight | 65 g |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
