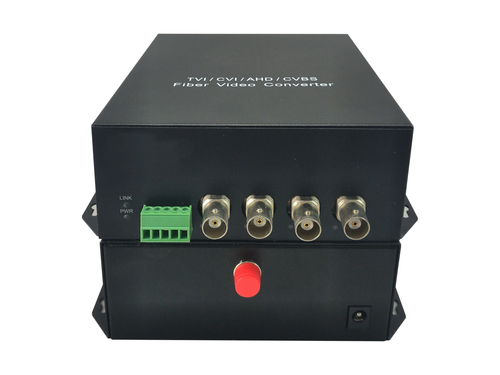

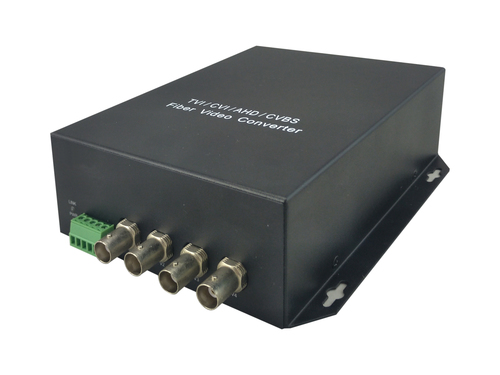

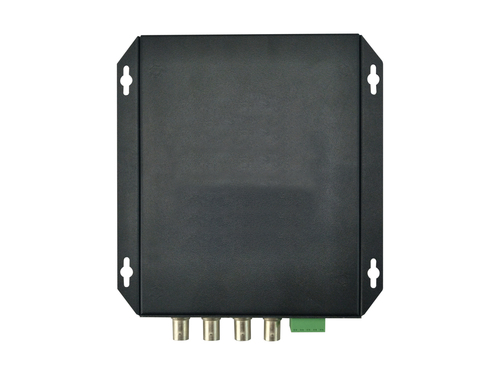

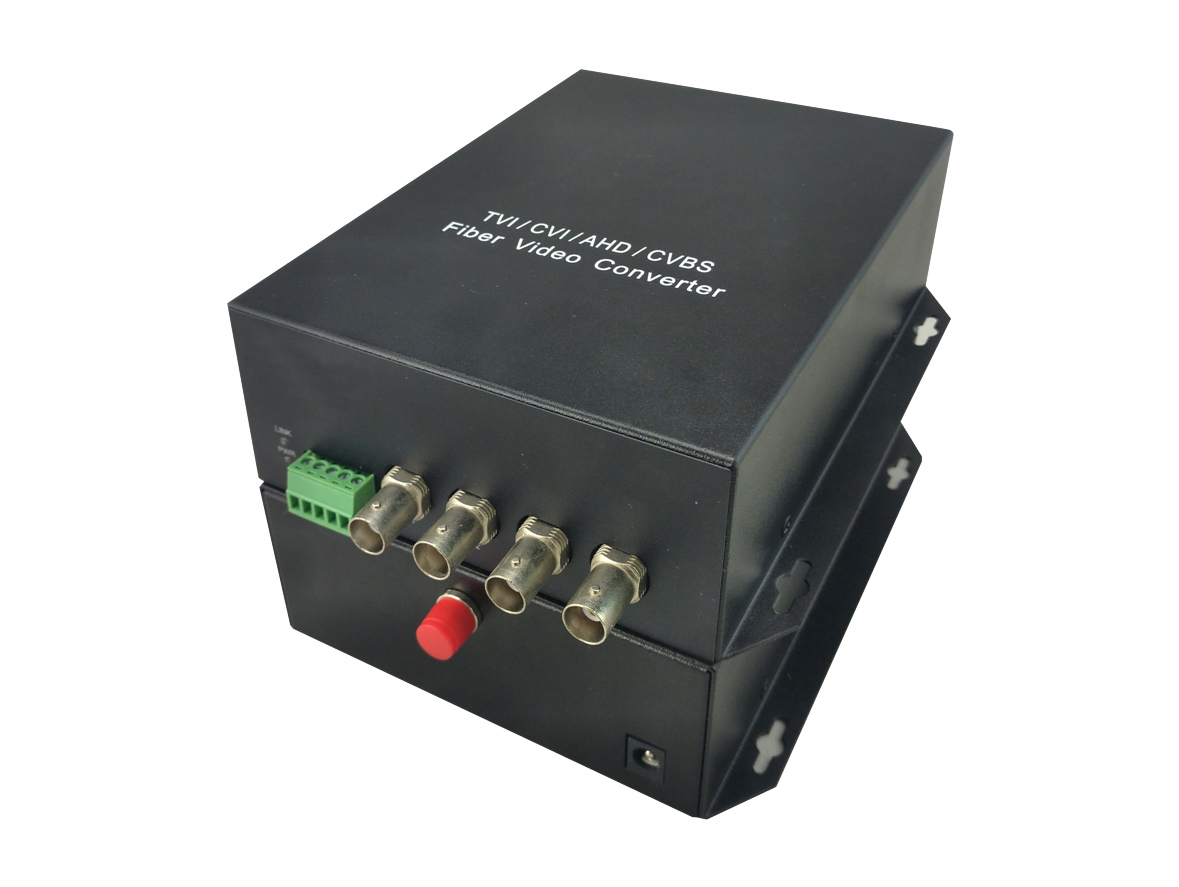

LevelOne 4-Channel BNC over Fiber Optic Extender Kit, 20km

LevelOne 4-Channel BNC over Fiber Optic Extender Kit, 20km

Model AVF-1401EAN 4015867206706

36 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight1.38 kg
  • ColourBlack
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 95%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
1.38 kg
Colour
Black
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 95%
Brand
LevelOne
Category
AV Extender
Model
AVF-1401
Part number
AVF-1401
EAN / UPC
4015867206706, 4015867222010
Also known as
LevelOne 4-Channel BNC over Fiber Optic Extender Kit, 20km

Specifications

36 specifications in 9 groups

Features

TypeAV transmitter
Maximum transfer distance20000 m
Fiber optic wavelengths supported1470-1610,1310 nm
Bandwidth6.5 MHz
Impedance75 Ω
LED indicatorsYes
Linearity1.3%DG 1.3%DP
Plug and PlayYes
RX sensitivity-26 dB
Signal-to-Noise Ratio (SNR)60 dB
Uncorrectable Bit Error Rate (UBER)< 1 per 10^9 bits read
Wavelengths supported1310 nm
Product colourBlack
CertificationCE, FCC

Ports & interfaces

Connectivity technologyWired
Fiber optic connectorFC
BNC input ports4
DC-in jackYes

Power

Operating voltage5 V
Input current3 A

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-20 - 70 °C

Weight & dimensions

Width116.5 mm
Depth48 mm
Height157.1 mm
Weight1.38 kg

Packaging data

Package width250 mm
Package depth115 mm
Package height405 mm
Package weight1.54 kg
Package typeBox

Packaging content

AC adapter includedYes
Quick start guideYes

Technical details

Country of originChina

Logistics data

Master (outer) case gross weight11.9 kg
Products per master (outer) case4 pc(s)
