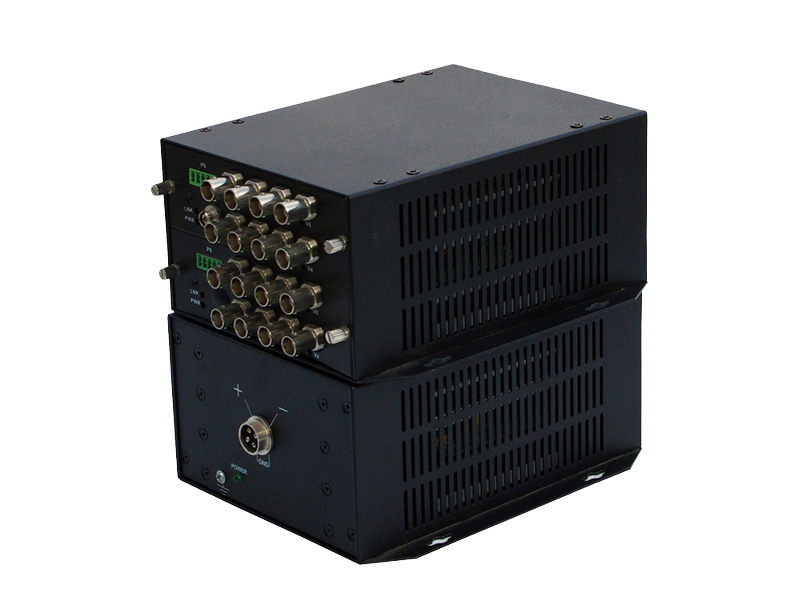

LevelOne 16-Channel BNC over Fiber Extender Kit, 20km

LevelOne 16-Channel BNC over Fiber Extender Kit, 20km

Model AVF-1160EAN 4015867189290

33 specifications
  • TypeAV transmitter
  • Weight1.7 kg
  • ColourBlack
  • BNC input ports16
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 95%
See all specifications

Overview

Type
AV transmitter
Weight
1.7 kg
Colour
Black
BNC input ports
16
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 95%
Brand
LevelOne
Category
AV Extender
Model
AVF-1160
Part number
AVF-1160
EAN / UPC
4015867189290
Also known as
LevelOne 16-Channel BNC over Fiber Extender Kit, 20km

Specifications

33 specifications in 8 groups

Features

TypeAV transmitter
Cable types supportedFiber
Maximum transfer distance20000 m
Bandwidth6.5 MHz
Colour depth8 bit
Impedance75 Ω
LED indicatorsActivity, Link, Status
Linearity<1.3%DG <1.3°DP
Plug and PlayYes
RX sensitivity-18 dB
Signal-to-Noise Ratio (SNR)63 dB
Tx power (max)-12 dBmW
Tx power (min)-6 dBmW
Uncorrectable Bit Error Rate (UBER)< 1 per 10^9 bits read
Wavelengths supported1310,1550 nm
Product colourBlack
CertificationCE, FCC

Ports & interfaces

BNC input ports16
Serial interface typeRS-485
Serial ports quantity1
DC-in jackYes

Power

Operating voltage5 V
Power consumption (typical)15 W
Current3 A

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-20 - 70 °C

Weight & dimensions

Dimensions (WxDxH)182 x 160 x 84 mm
Weight1.7 kg

Packaging data

Package dimensions (WxDxH)415 x 250 x 115 mm

Packaging content

AC adapter includedYes
Quick start guideYes

Technical details

Compliance certificatesRoHS
Country of originChina
