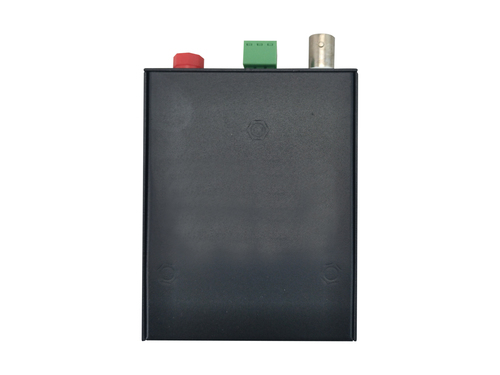

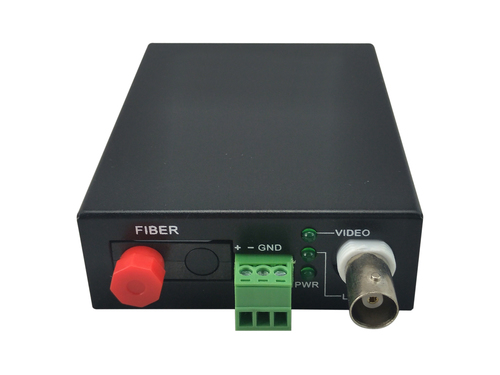

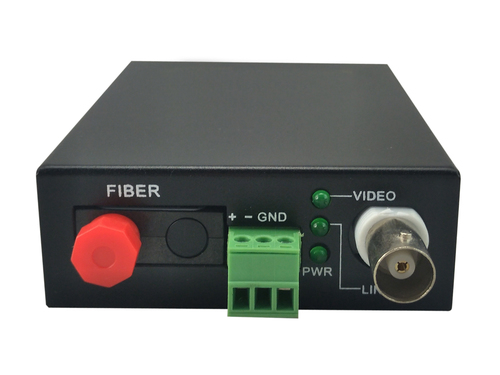

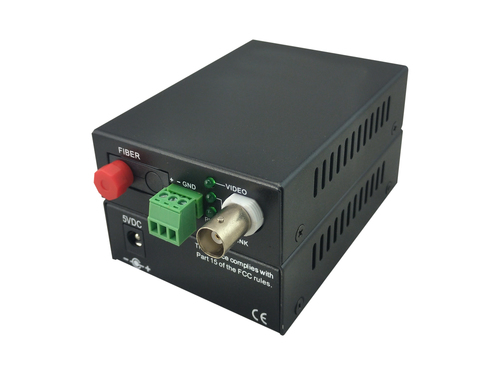

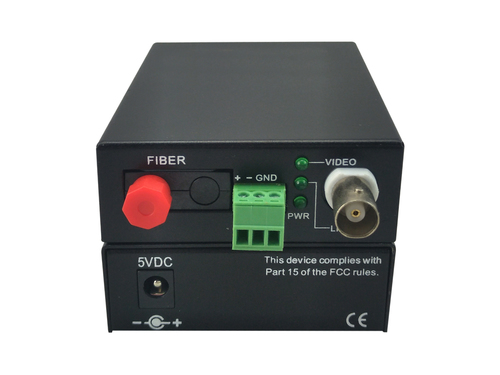

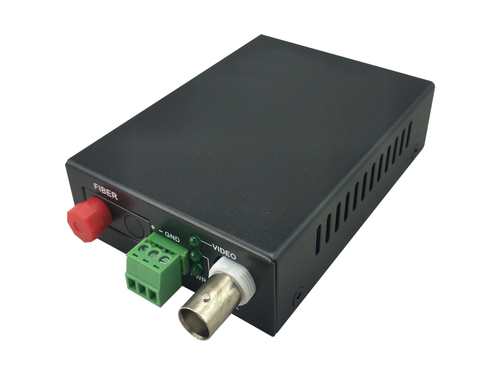

1-Channel BNC over Fiber Optic Extender Kit, 20km
Model AVF-1101EAN 4015867206690
35 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight460 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 95%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 460 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 95%
- Brand
- LevelOne
- Category
- AV Extender
- Model
- AVF-1101
- Part number
- AVF-1101
- EAN / UPC
- 4015867206690, 4015867222003, 4015867238684
- Also known as
- LevelOne 1-Channel BNC over Fiber Optic Extender Kit, 20km
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum transfer distance | 20000 m |
| Fiber optic wavelengths supported | 1470-1610,1310 nm |
| Bandwidth | 6.5 MHz |
| Impedance | 75 Ω |
| LED indicators | Yes |
| Linearity | 1.3%DG, 1.3°DP |
| Plug and Play | Yes |
| RX sensitivity | -26 dB |
| Signal-to-Noise Ratio (SNR) | 60 dB |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^9 bits read |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | FC |
| BNC input ports | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 25 mm |
| Height | 90 mm |
| Weight | 460 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 62 mm |
| Package height | 275 mm |
| Package weight | 600 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 17 pc(s) |
