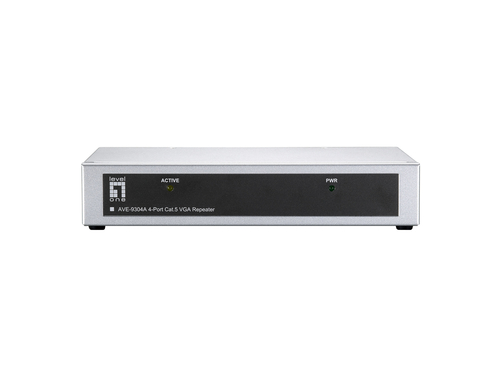

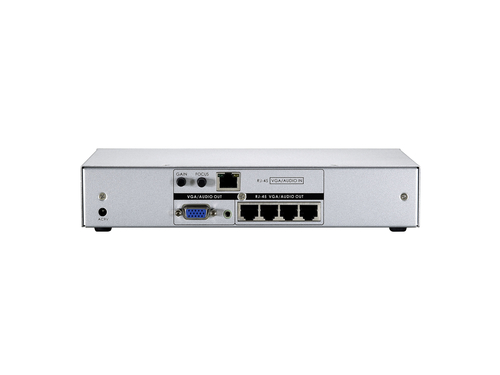

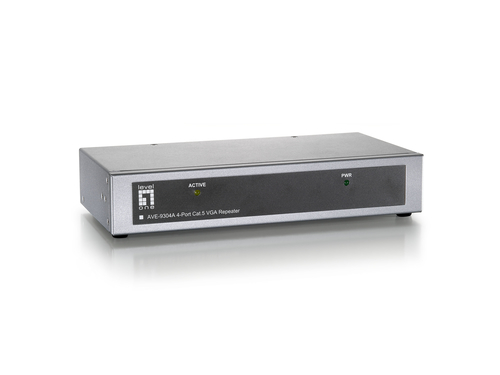

4-Port Cat.5 VGA Repeater
Model AVE-9304AEAN 4015867141137
22 specifications
- TypeAV repeater
- ColourBlack, Silver
- RJ-45 output ports4
- Operating voltage5 V
- Operating relative humidity (H-H)10 - 90%
- Dimensions (WxDxH)240 x 130 x 144 mm
Overview
- Type
- AV repeater
- Colour
- Black, Silver
- RJ-45 output ports
- 4
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 10 - 90%
- Dimensions (WxDxH)
- 240 x 130 x 144 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- AVE-9304A
- Part number
- AVE-9304A
- EAN / UPC
- 4015867141137
- Also known as
- LevelOne 4-Port Cat.5 VGA Repeater
Specifications
22 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 2048 x 1536 pixels |
| Cable types supported | Cat5, Cat6, Cat7 |
| Audio system | stereo |
| LED indicators | Activity, Power |
| Product colour | Black, Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 4 |
| VGA (D-Sub) output ports | 1 |
| Audio output | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 240 x 130 x 144 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 85 mm |
| Package height | 370 mm |
| Package weight | 2.18 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
