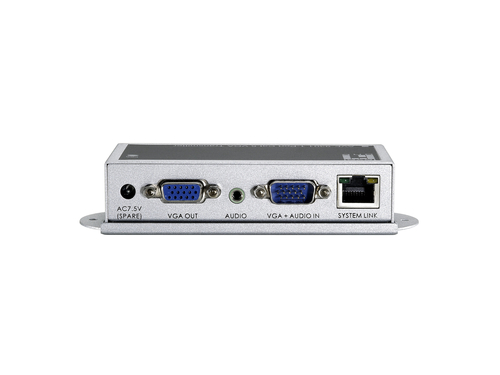

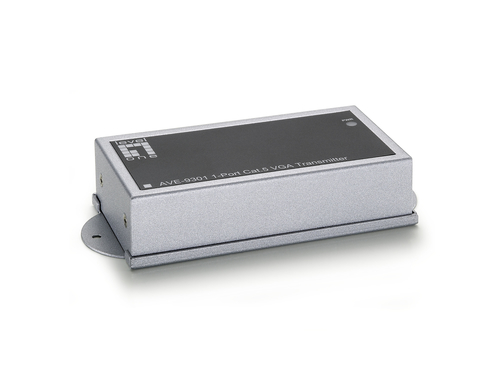

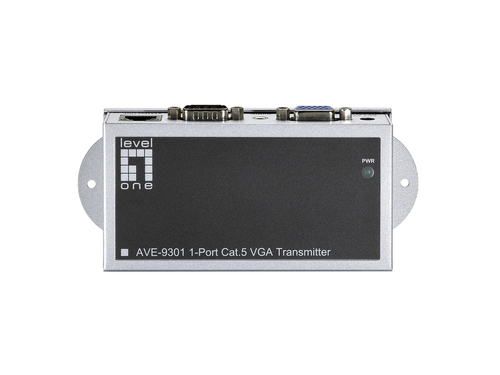

1-Port Cat.5 VGA Transmitter
Model AVE-9301EAN 878742003760
26 specifications
- TypeAV transmitter
- ColourBlack, Grey
- RJ-45 output ports1
- Operating voltage5 V
- Operating relative humidity (H-H)10 - 90%
- Transmitter dimensions (WxDxH)62 x 113 x 27 mm
Overview
- Type
- AV transmitter
- Colour
- Black, Grey
- RJ-45 output ports
- 1
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 10 - 90%
- Transmitter dimensions (WxDxH)
- 62 x 113 x 27 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- AVE-9301
- Part number
- AVE-9301
- EAN / UPC
- 878742003760, 4014619490776, 4015867141106
- Also known as
- LevelOne 1-Port Cat.5 VGA Transmitter
Specifications
26 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 2048 x 1536 pixels |
| Cable types supported | Cat5, Cat6, Cat7 |
| Maximum transfer distance | 300 m |
| Audio system | stereo |
| LED indicators | Activity, Power |
| Supported video modes | 480i, 480p, 720i, 1080p |
| Product colour | Black, Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter dimensions (WxDxH) | 62 x 113 x 27 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 147 mm |
| Package depth | 200 mm |
| Package height | 64 mm |
| Package weight | 430 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
