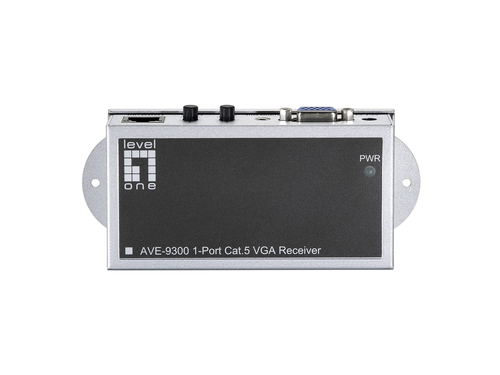

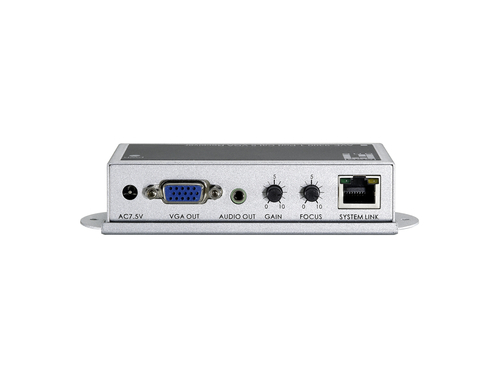

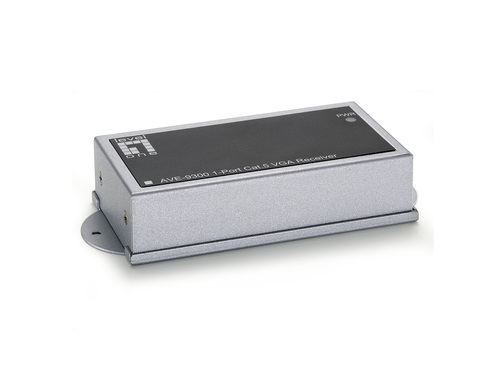

1-Port Cat.5 VGA Receiver
Model AVE-9300EAN 4014619490820
18 specifications
- TypeAV receiver
- ColourBlack, Grey
- RJ-45 input ports1
- Operating voltage5 V
- Operating relative humidity (H-H)10 - 90%
- Receiver dimensions (WxDxH)60 x 113 x 27 mm
Overview
- Type
- AV receiver
- Colour
- Black, Grey
- RJ-45 input ports
- 1
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 10 - 90%
- Receiver dimensions (WxDxH)
- 60 x 113 x 27 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- AVE-9300
- Part number
- AVE-9300
- EAN / UPC
- 4014619490820, 4015867141090, 5050914832100, 5711045273377
- Also known as
- LevelOne 1-Port Cat.5 VGA Receiver
Specifications
18 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 2048 x 1536 pixels |
| Cable types supported | Cat5, Cat6, Cat7 |
| Audio system | stereo |
| LED indicators | Activity, Power |
| Product colour | Black, Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 60 x 113 x 27 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
