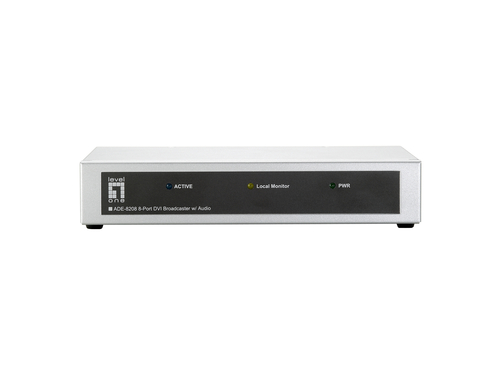

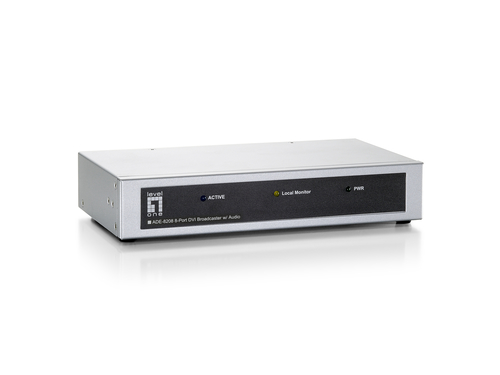

8-Port DVI Transmitter with Audio
Model ADE-8208EAN 4015867133903
26 specifications
- TypeAV transmitter & receiver
- ColourBlack, Grey
- RJ-45 output ports8
- Operating voltage5 V
- Operating relative humidity (H-H)25 - 70%
- Dimensions (WxDxH)240 x 130 x 44 mm
Overview
- Type
- AV transmitter & receiver
- Colour
- Black, Grey
- RJ-45 output ports
- 8
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 25 - 70%
- Dimensions (WxDxH)
- 240 x 130 x 44 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- ADE-8208
- Part number
- ADE-8208
- EAN / UPC
- 4015867133903
- Also known as
- LevelOne 8-Port DVI Transmitter with Audio
Specifications
26 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | stereo |
| Product colour | Black, Grey |

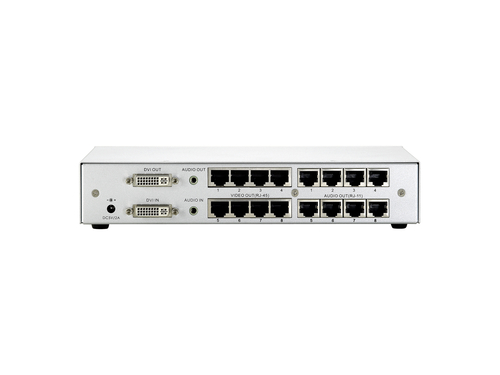

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 8 |
| DVI input ports | 1 |
| DVI output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| RJ-11 ports quantity | 8 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 25 - 70% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 240 x 130 x 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 85 mm |
| Package height | 372 mm |
| Package weight | 1.92 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
