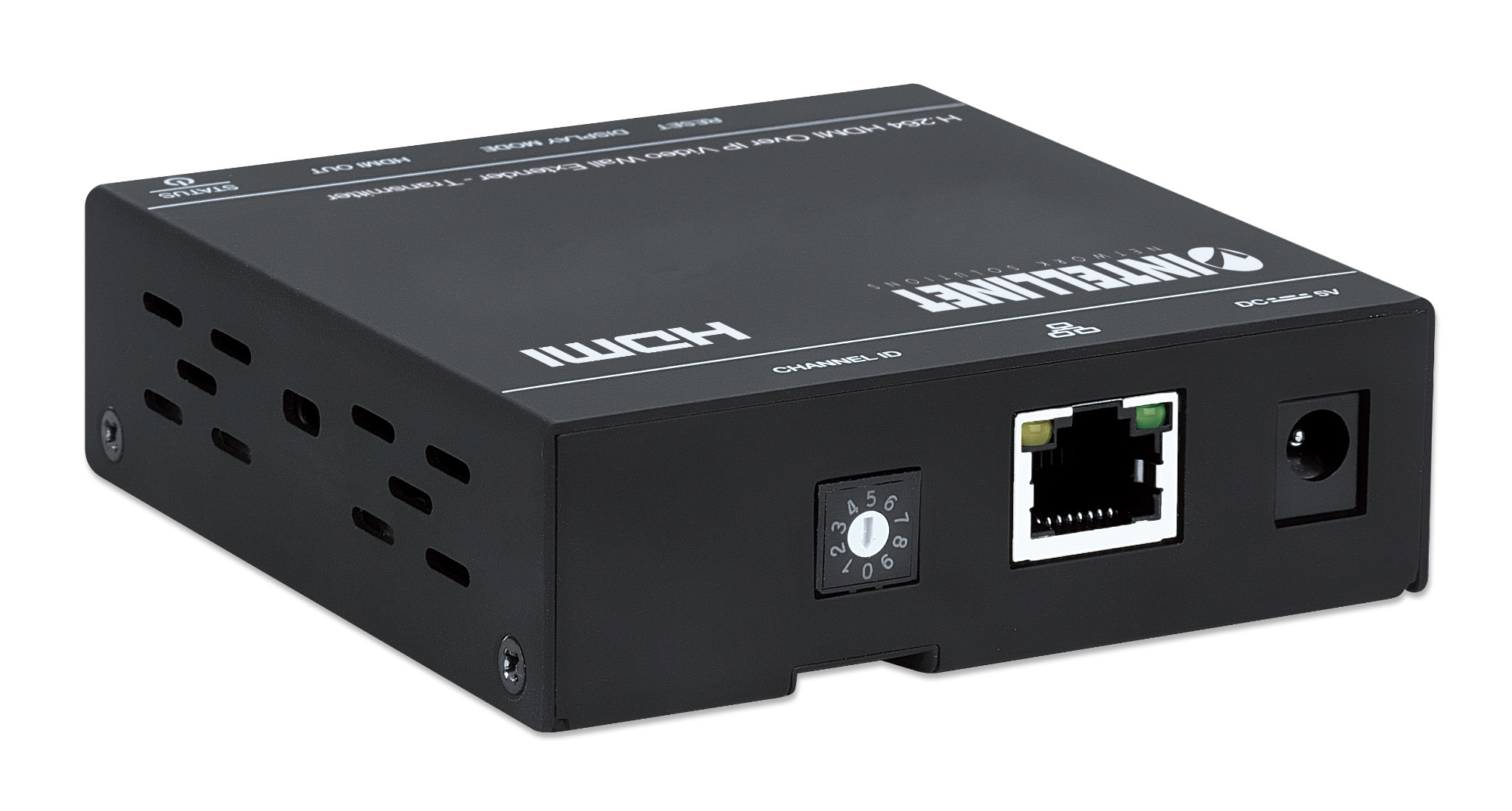

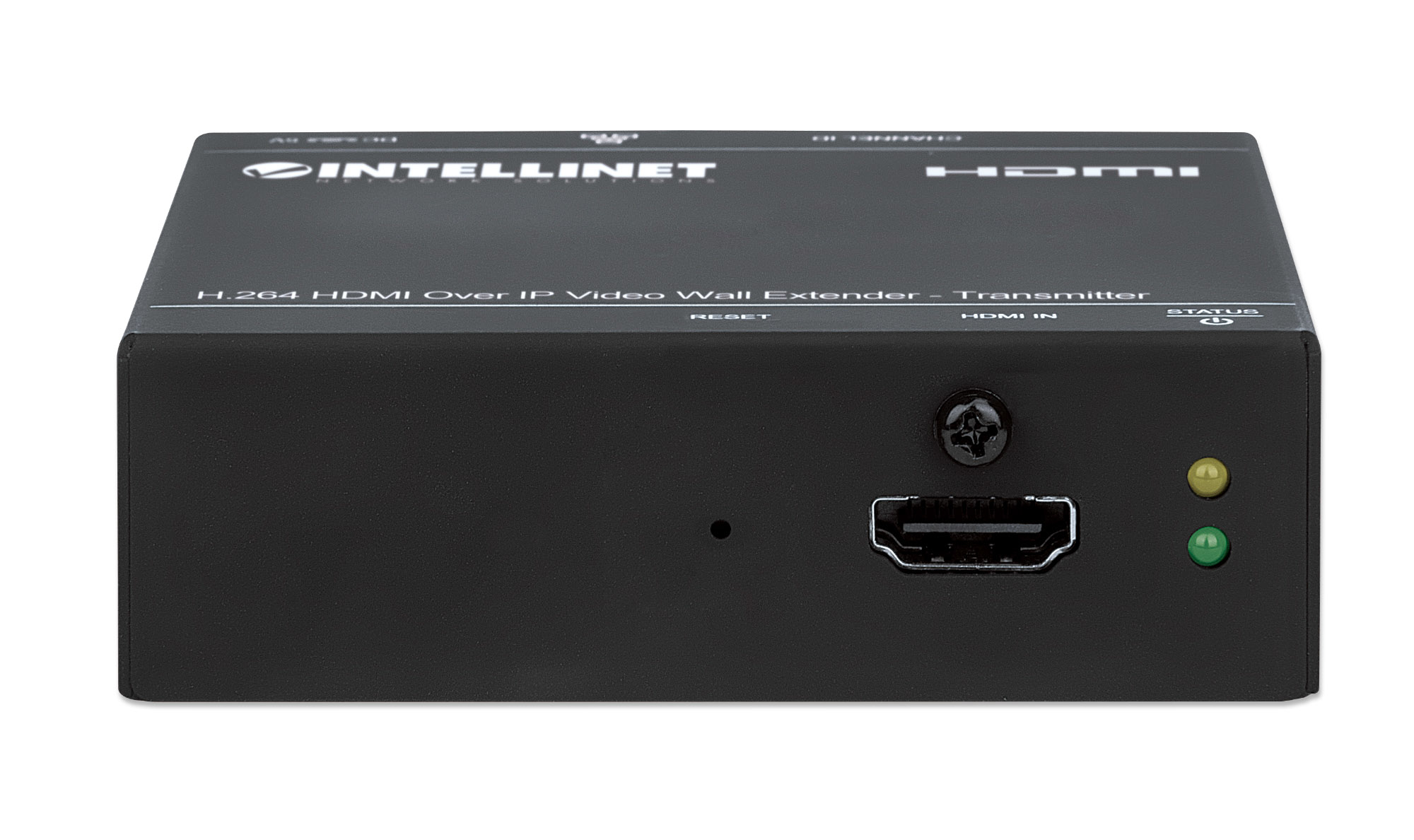

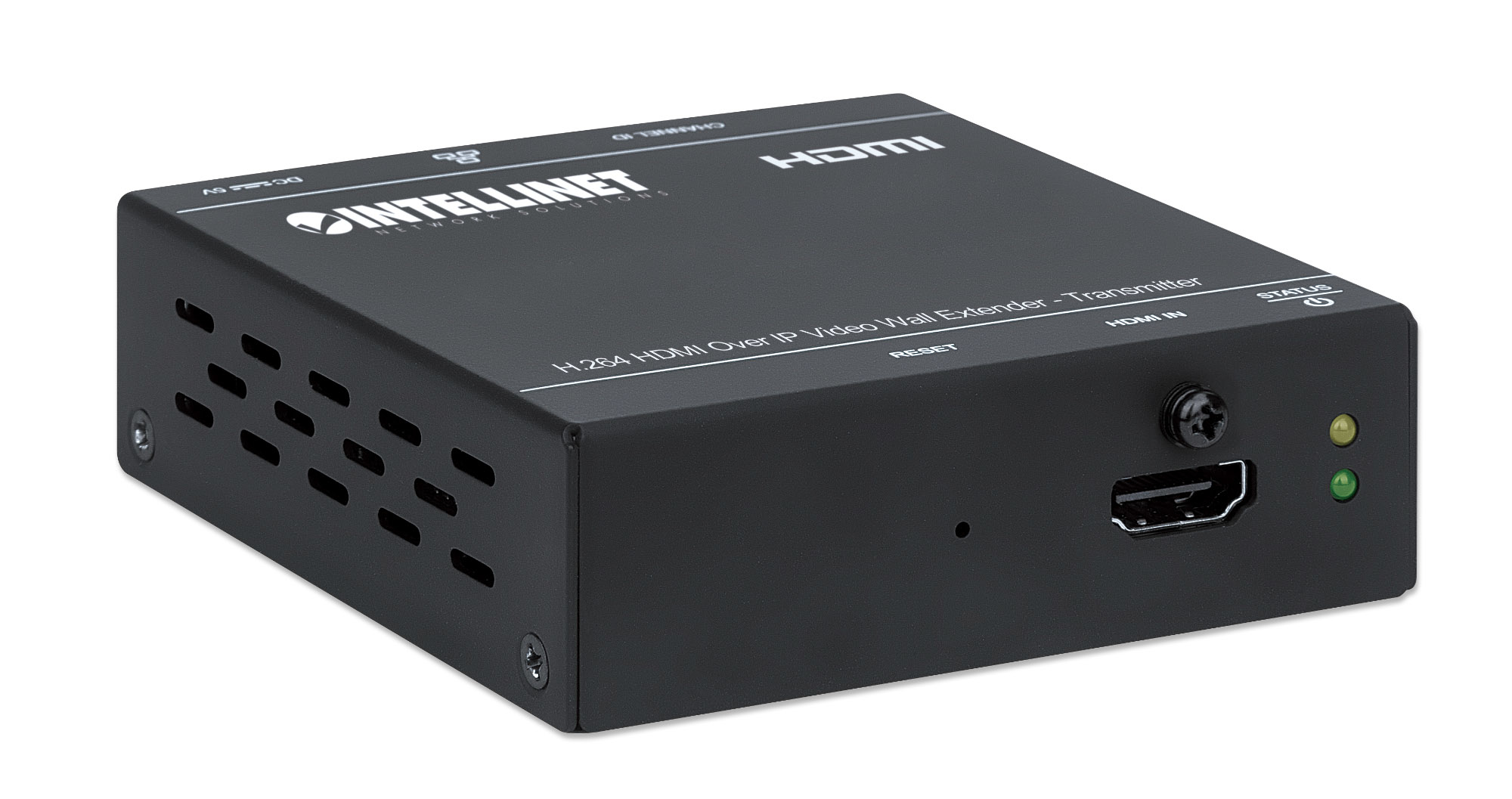

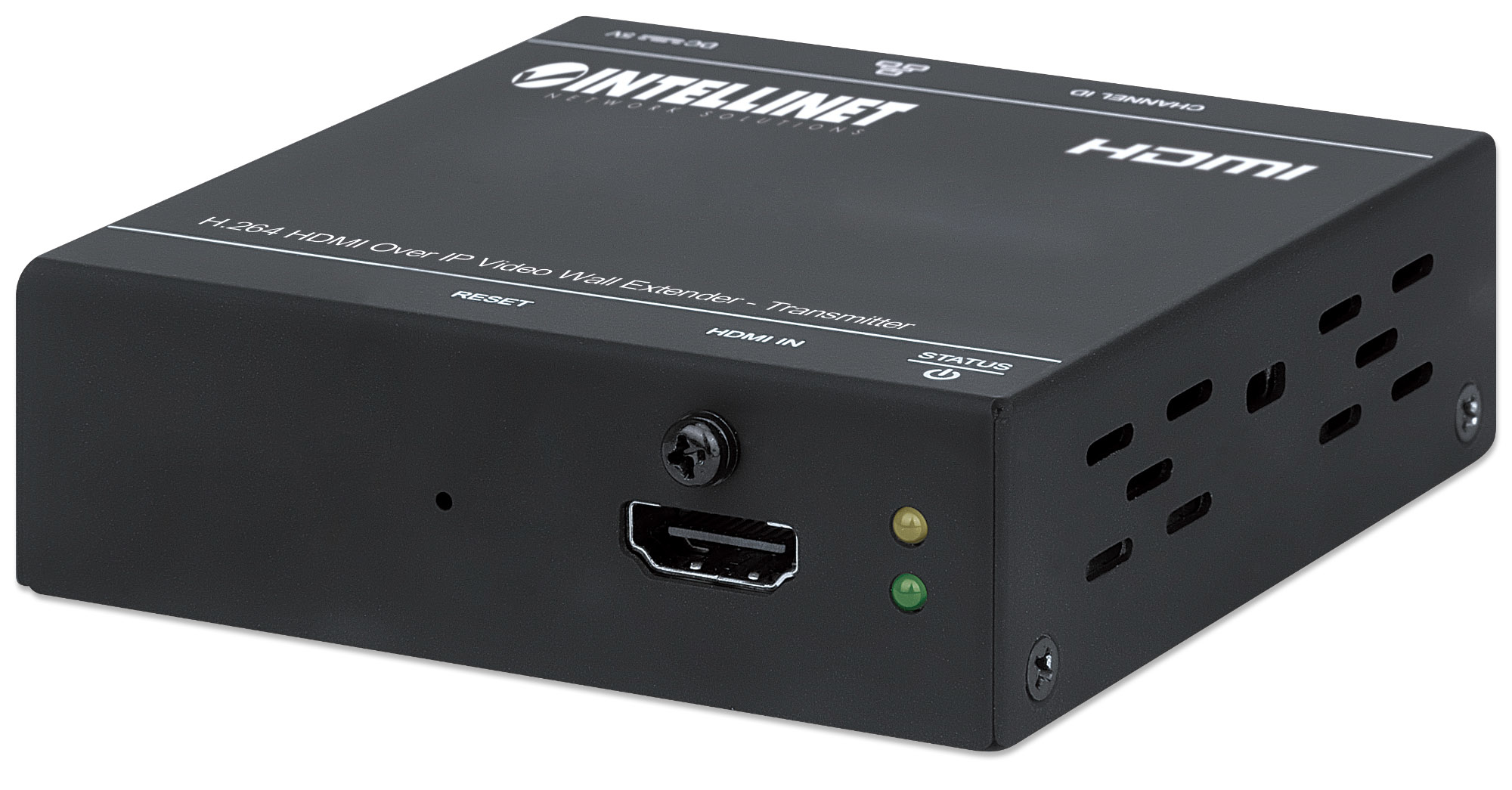

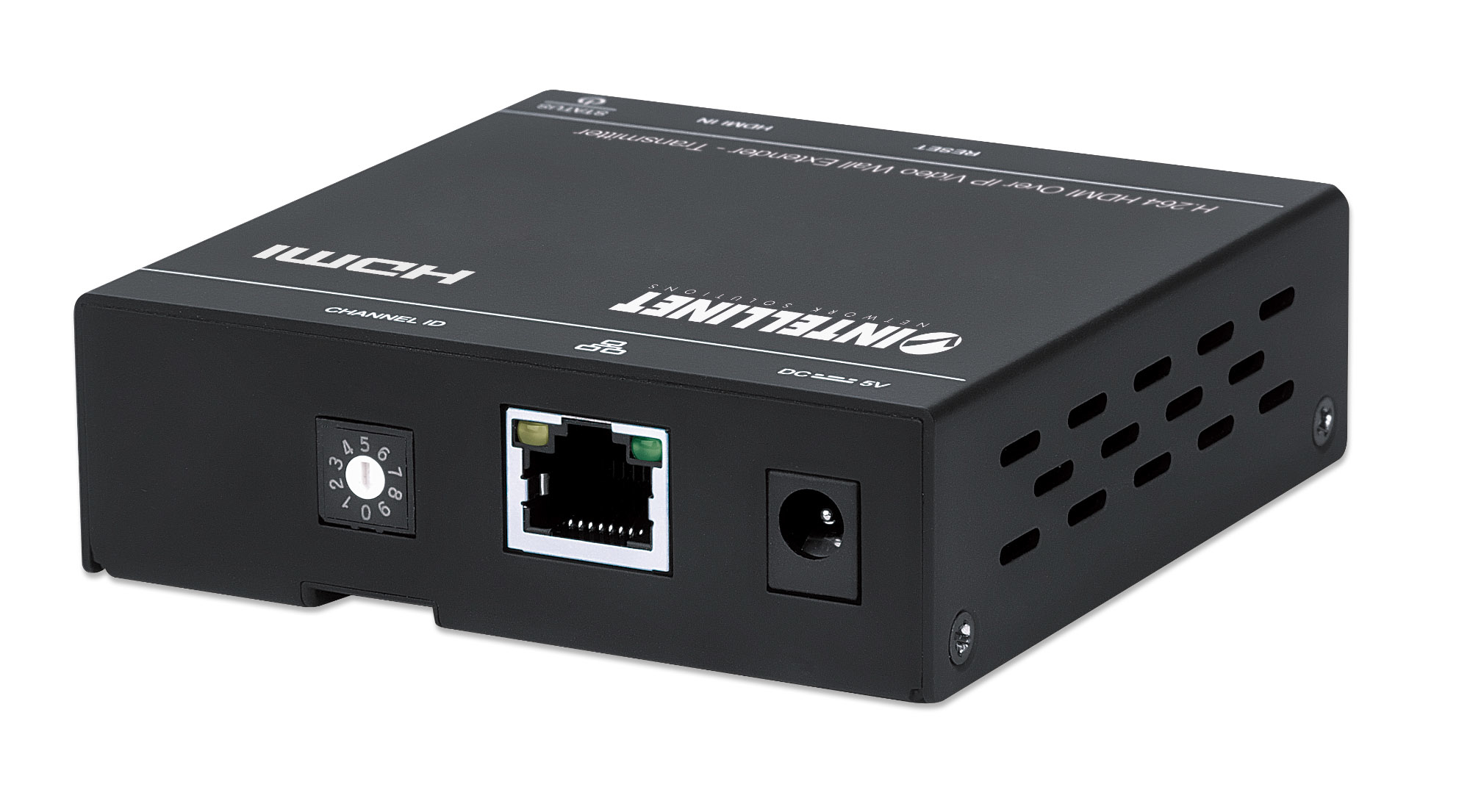

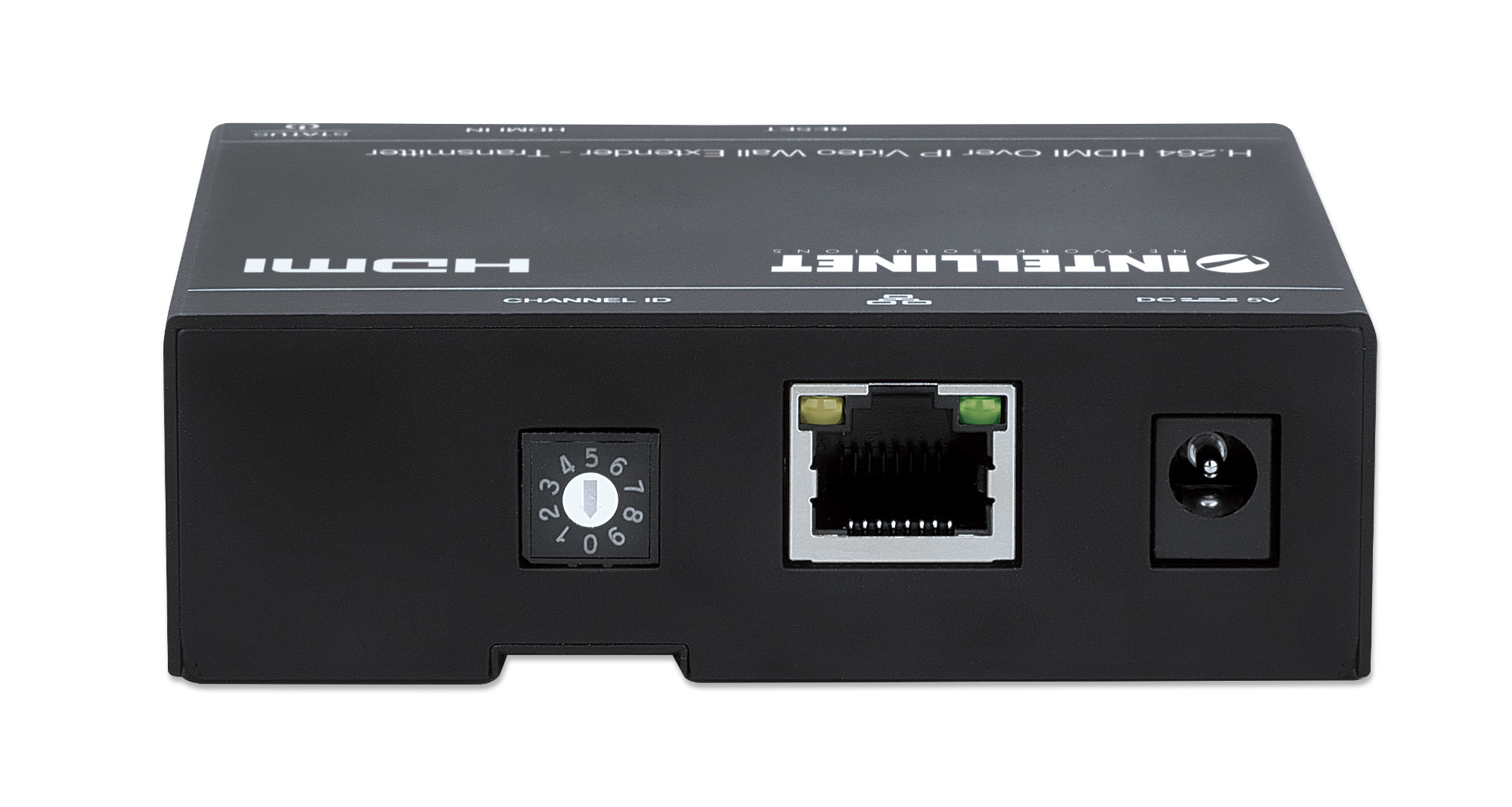

H.264 HDMI Over IP Video Wall Extender - Transmitter Distributes an H.264-compressed 1080p HDMI Signal up to 500 m (1,640 ft.) Over a Network; Video
Model 208338EAN 766623208338
29 specifications
- TypeAV transmitter
- Weight120 g
- RJ-45 output ports1
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)20 - 80%
- Width87.2 mm
Overview
- Type
- AV transmitter
- Weight
- 120 g
- RJ-45 output ports
- 1
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 20 - 80%
- Width
- 87.2 mm
- Brand
- Intellinet
- Category
- AV Extender
- Model
- 208338
- Part number
- 208338
- EAN / UPC
- 766623208338
- Also known as
- Intellinet H.264 HDMI Over IP Video Wall Extender - Transmitter Distributes an H.264-compressed 1080p HDMI Signal up to 500 m (1,640 ft.) Over a Network; Video
Specifications
29 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 500 m |
| Cable length | 1.4 m |
| HDCP | Yes |
| HDCP version | 1.2 |
| LED indicators | Yes |
| Material | Aluminium |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p |
| Video compression formats | H.264 |
| Certification | CE FCC RoHS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87.2 mm |
| Depth | 88 mm |
| Height | 27 mm |
| Weight | 120 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
| Mounting kit | Yes |
