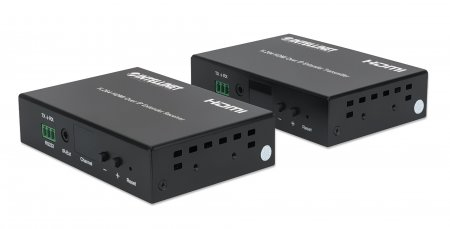

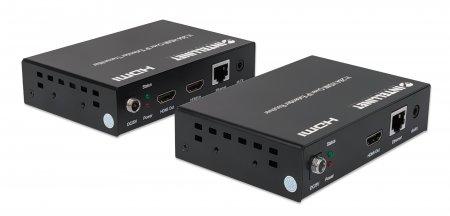

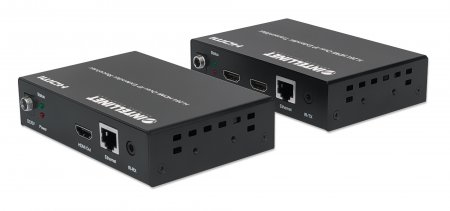

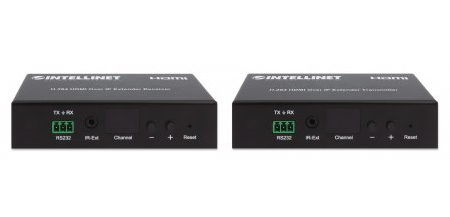

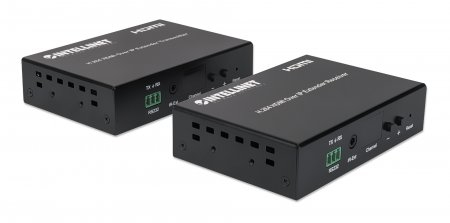

H.264 HDMI Over IP Extender Kit, Up to 100m (Euro 2-pin plug)
Model 208253EAN 766623208253
38 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 96%
- Receiver dimensions (WxDxH)119 x 79.5 x 28 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 96%
- Receiver dimensions (WxDxH)
- 119 x 79.5 x 28 mm
- Brand
- Intellinet
- Category
- AV Extender
- Model
- 208253
- Part number
- 208253
- EAN / UPC
- 766623208253
- Also known as
- Intellinet H.264 HDMI Over IP Extender Kit, Up to 100m (Euro 2-pin plug)
Specifications
38 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Networking standards | IEEE 802.3af |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video compression formats | AVC, H.264, MPEG4 |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 2 |
| RS-232 input ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 96% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 119 x 79.5 x 28 mm |
| Receiver weight | 560 g |
| Transmitter dimensions (WxDxH) | 119 x 79.5 x 28 mm |
| Transmitter weight | 560 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
