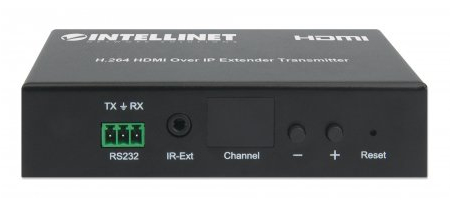

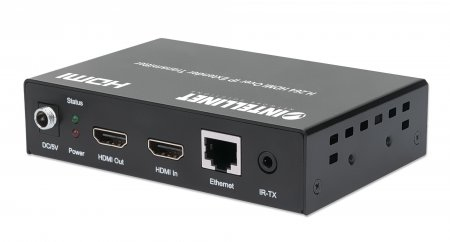

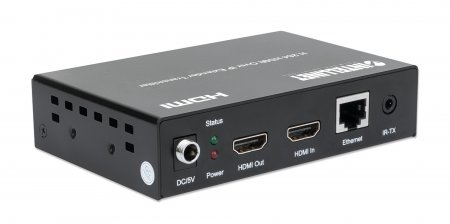

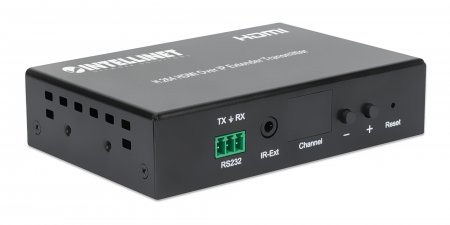

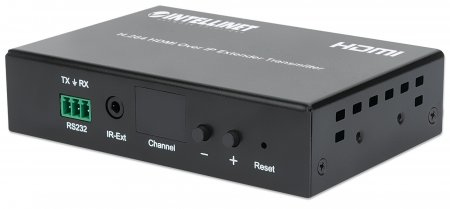

H.264 HDMI Over IP Extender Transmitter (for use with 208246), Up to 100m (Euro 2-pin plug)
Model 207577EAN 766623207577
40 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight280 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 96%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 280 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 96%
- Brand
- Intellinet
- Category
- AV Extender
- Model
- 207577
- Part number
- 207577
- EAN / UPC
- 766623207577
- Also known as
- Intellinet H.264 HDMI Over IP Extender Transmitter (for use with 208246), Up to 100m (Euro 2-pin plug)
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Audio formats supported | LPCM |
| Display Data Channel (DDC) input | 5 V |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Material | Metal |
| Networking standards | IEEE 802.3af |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video compression formats | AVC, H.264, MPEG4 |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 96% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 79.5 mm |
| Height | 28 mm |
| Weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
