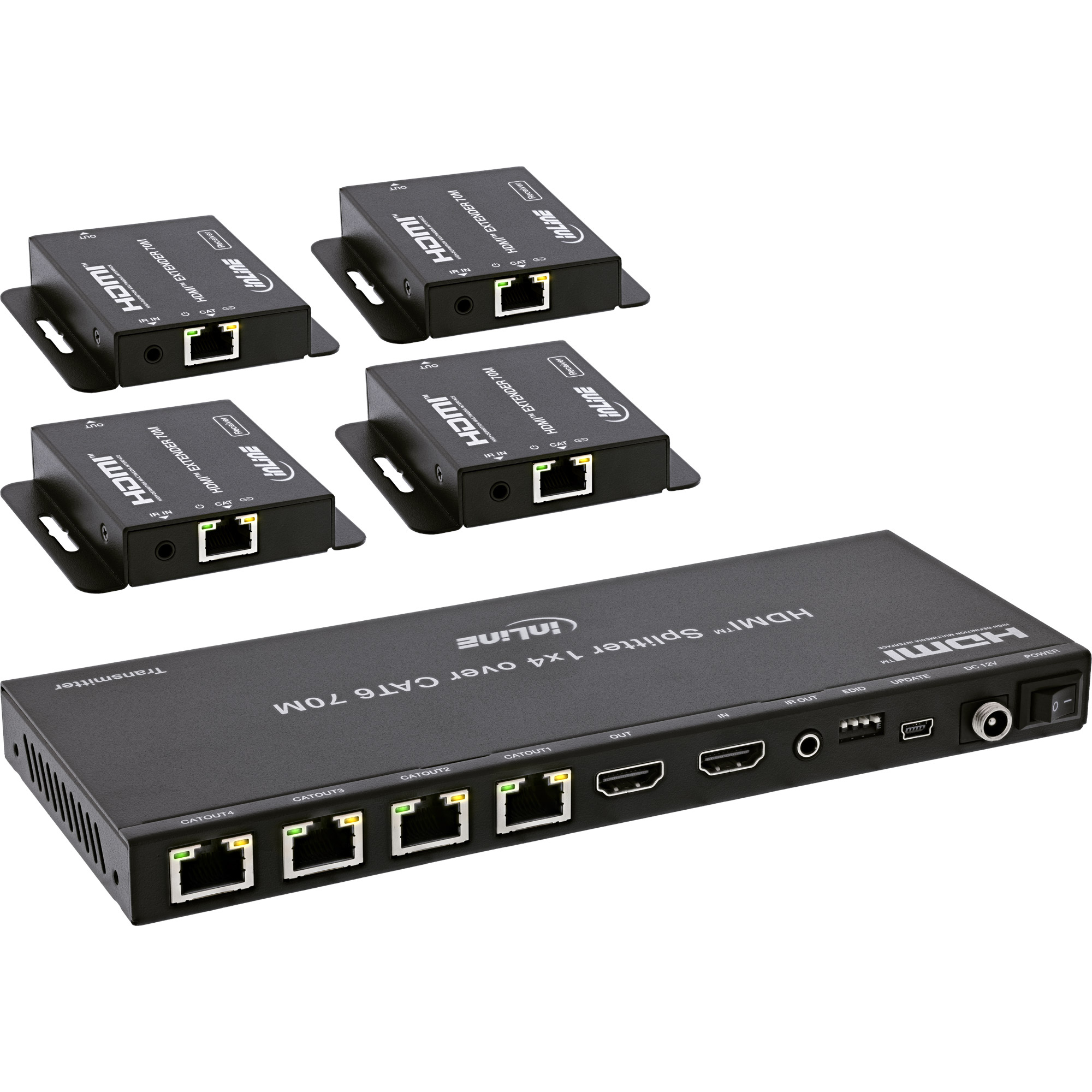

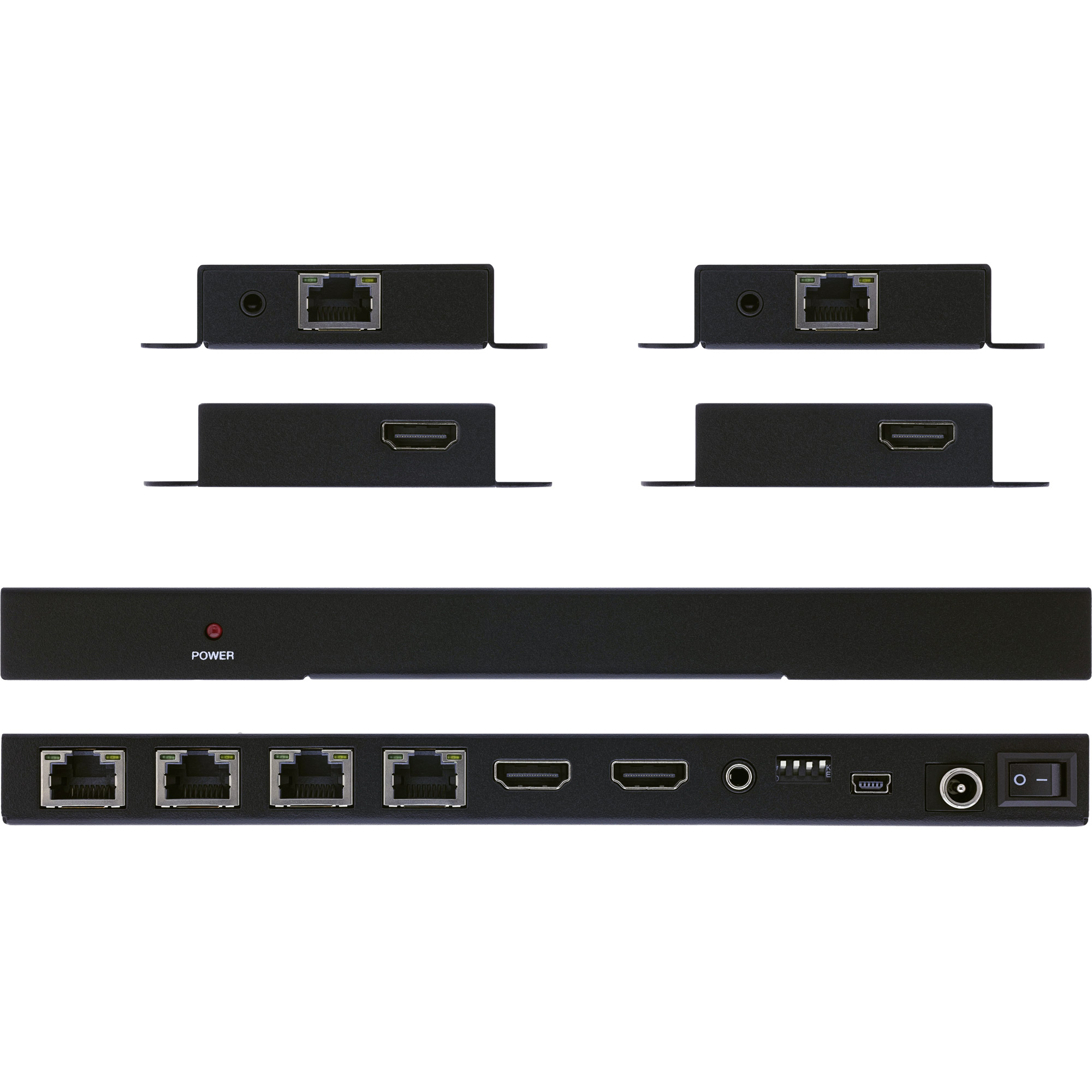

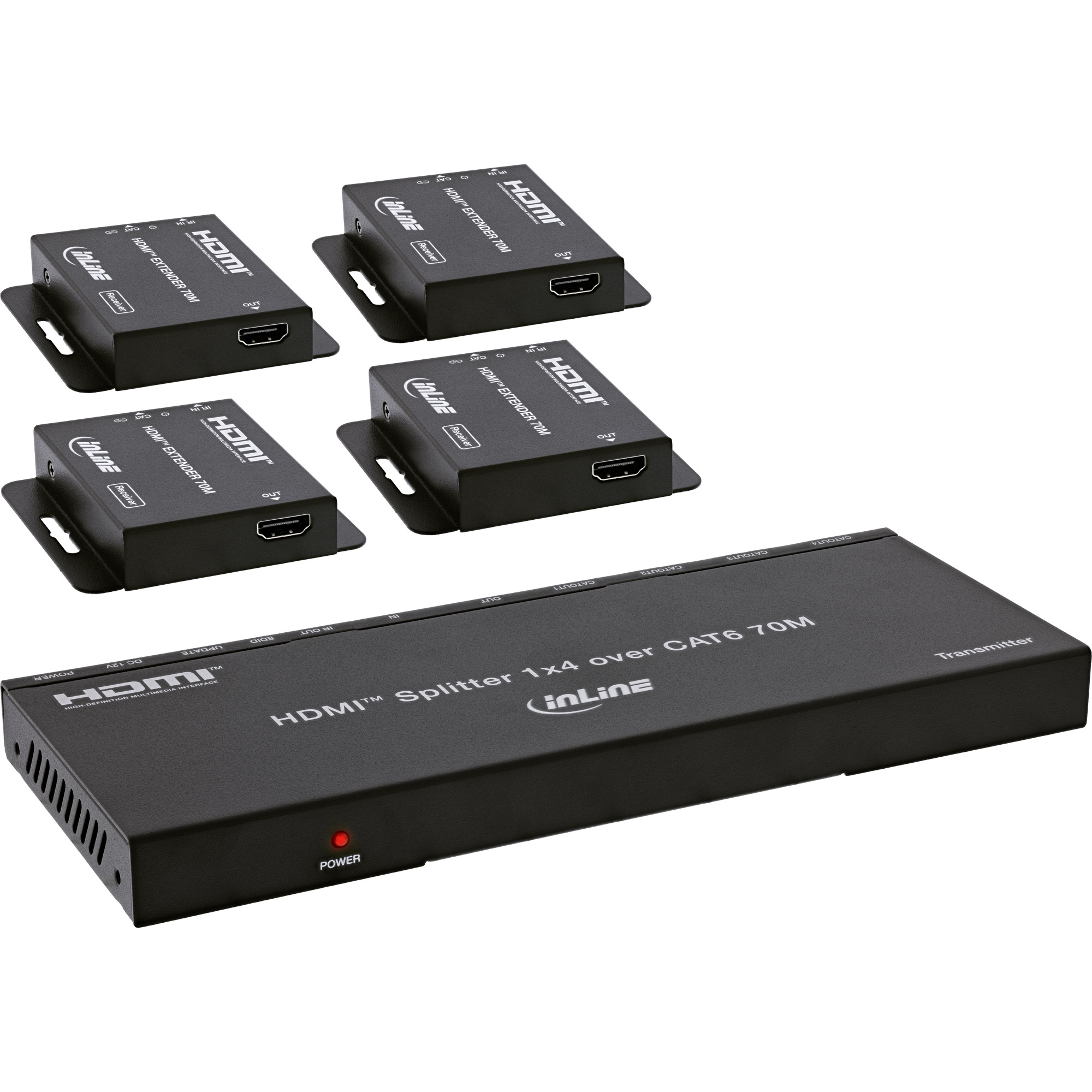

57886B AV extender AV transmitter & receiver Black
Model 57886BEAN 4043718348756
33 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight442 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 442 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- AV Extender
- Model
- 57886B
- Part number
- 57886B
- EAN / UPC
- 4043718348756
- Also known as
- InLine 57886B AV extender AV transmitter & receiver Black
Specifications
33 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| EDID management | Yes |
| Audio formats supported | LPCM |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 297 MHz |
| Colour depth | 12 bit |
| LED indicators | Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI version | 1.4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 85 x 210 x 18 mm |
| Width | 85 mm |
| Depth | 210 mm |
| Height | 18 mm |
| Weight | 442 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 198 mm |
| Package depth | 265 mm |
| Package height | 90 mm |
| Package weight | 1.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Manual | Yes |
| Mounting brackets included | Yes |

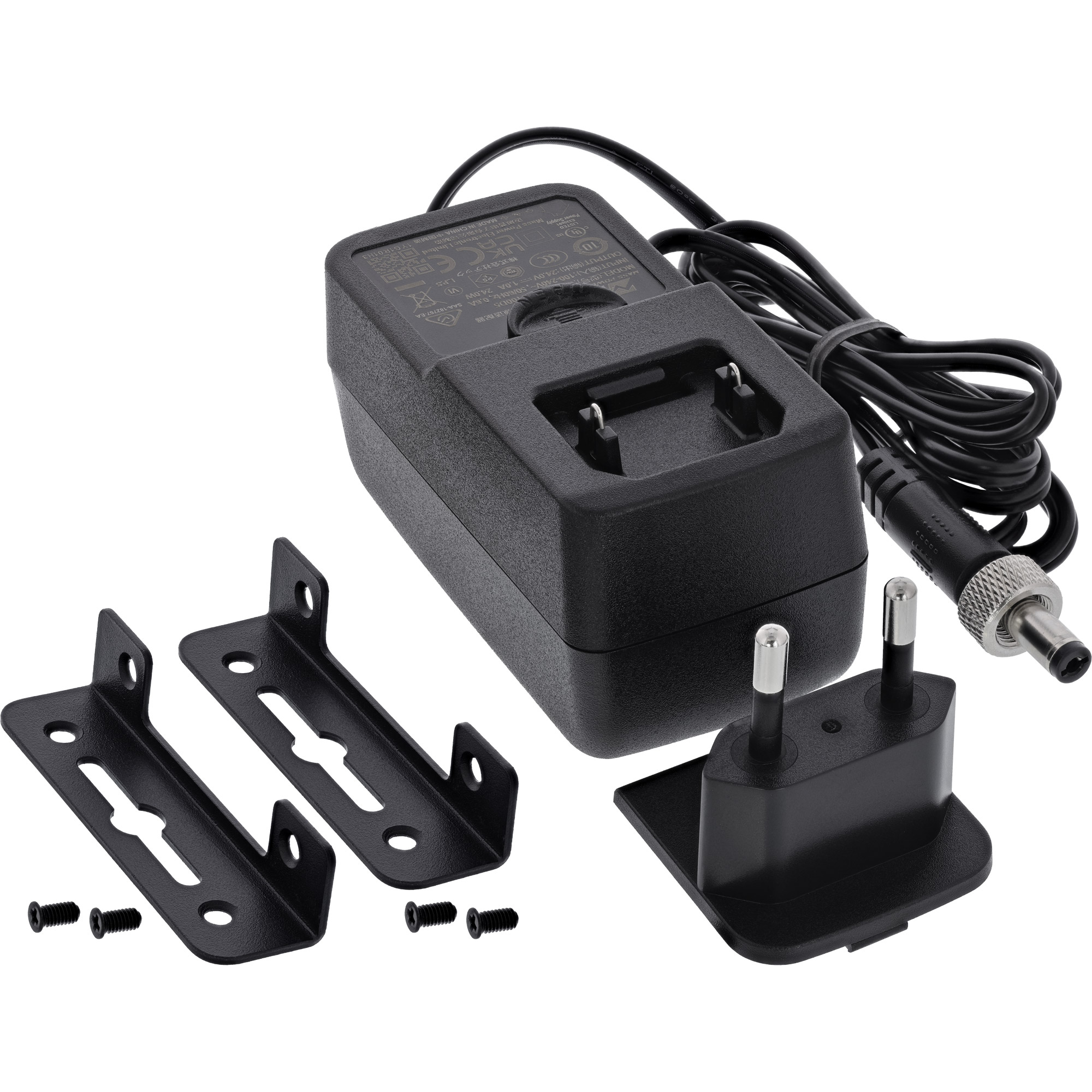

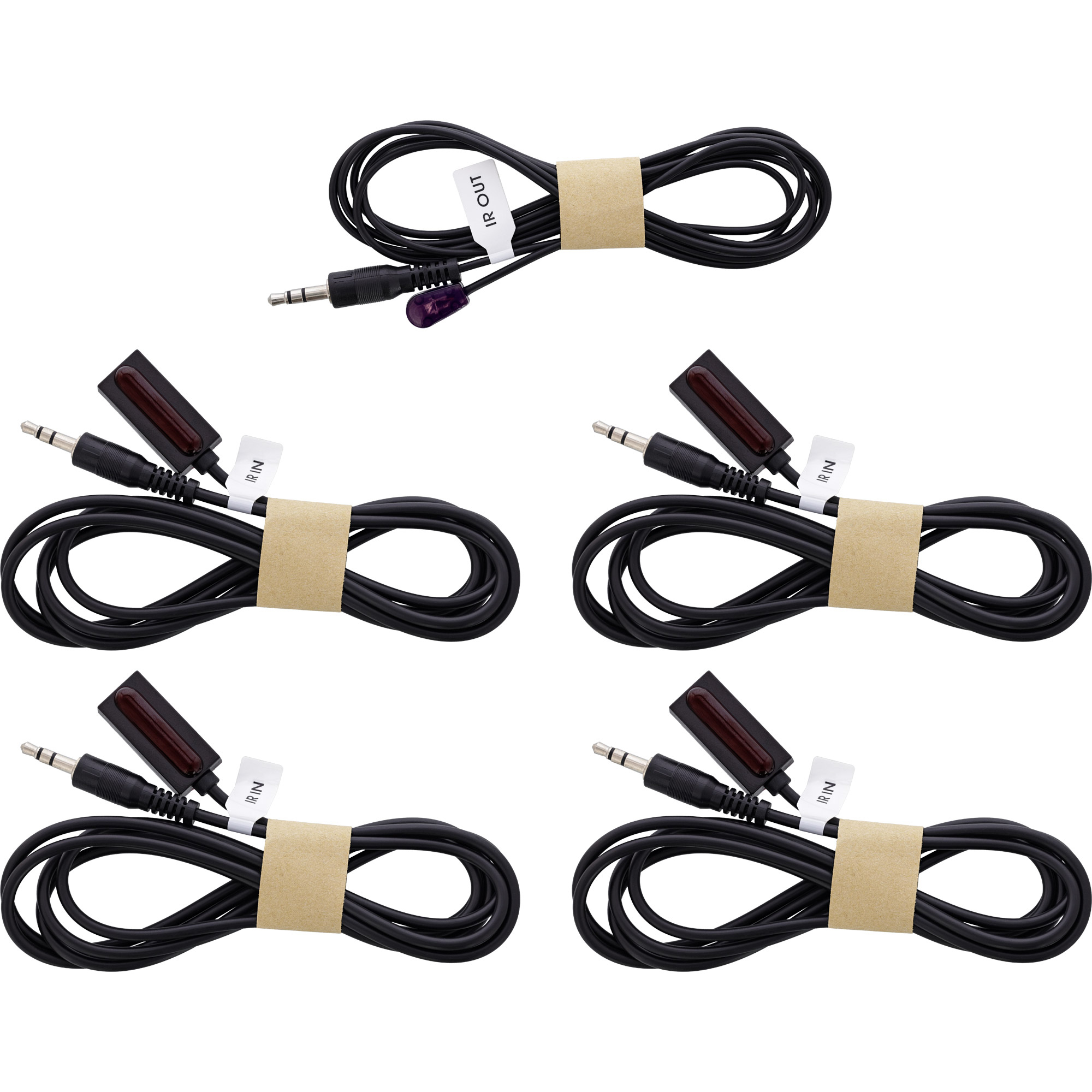

| Packaging content | 1 x HDMI extender – main unit (transmitter) 4 x HDMI extender – receiver 1 x IR transmitter cable (approx. 1.5 m) 4 x IR receiver cables (approx. 1.5 m) 2 x mounting brackets 4 x machine screws (M3x4) 1 x power supply unit (DC 12 V / 2.5 A, lockable) 1 x operating instructions in German/English |
Technical details
| Specification | Value |
|---|---|
| Package volume | 4700 cm³ |
