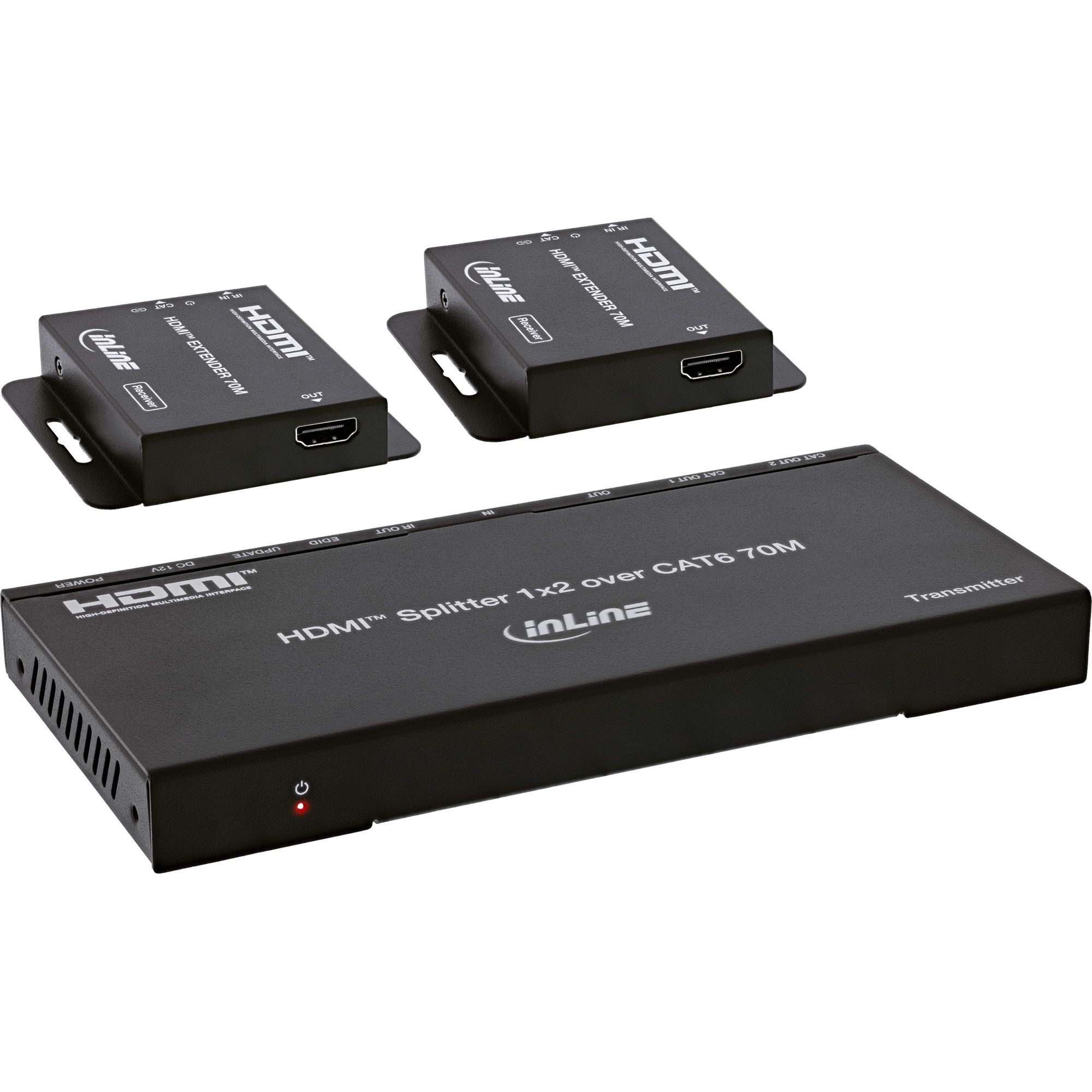

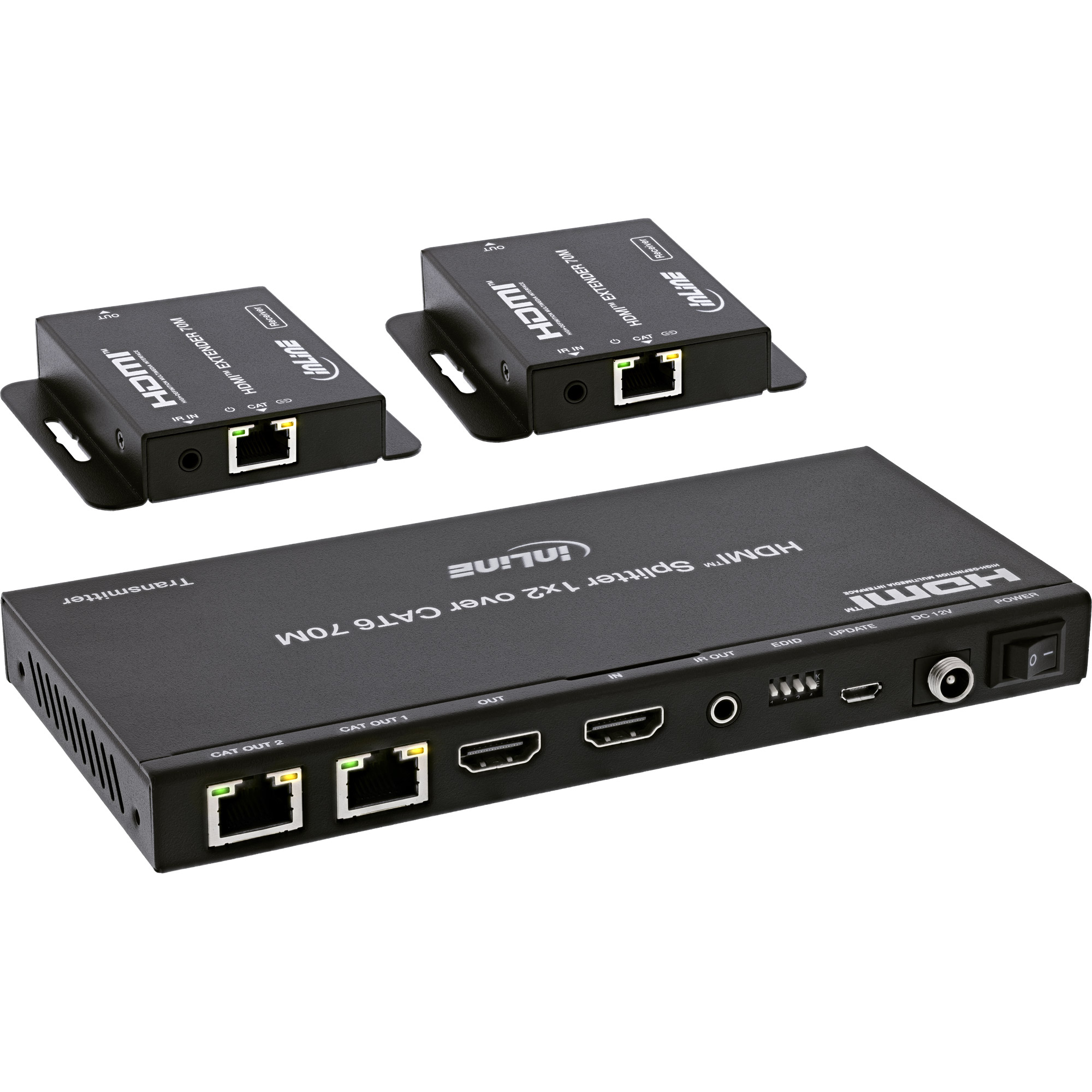

57886A AV extender AV transmitter & receiver
Model 57886AEAN 4043718348749
31 specifications
- TypeAV transmitter & receiver
- Weight366 g
- HDMI version1.4
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)20 - 80%
- Dimensions (WxDxH)85 x 176 x 18 mm
Overview
- Type
- AV transmitter & receiver
- Weight
- 366 g
- HDMI version
- 1.4
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 20 - 80%
- Dimensions (WxDxH)
- 85 x 176 x 18 mm
- Brand
- InLine
- Category
- AV Extender
- Model
- 57886A
- Part number
- 57886A
- EAN / UPC
- 4043718348749
- Also known as
- InLine 57886A AV extender AV transmitter & receiver
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Audio formats supported | LPCM |
| Bandwidth | 10.2 Gbit/s |
| Colour depth | 12 bit |
| HDCP | Yes |
| HDCP version | 1.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 85 x 176 x 18 mm |
| Width | 85 mm |
| Depth | 176 mm |
| Height | 18 mm |
| Weight | 366 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 258 mm |
| Package height | 77 mm |
| Package weight | 986 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Manual | Yes |
| Mounting brackets included | Yes |

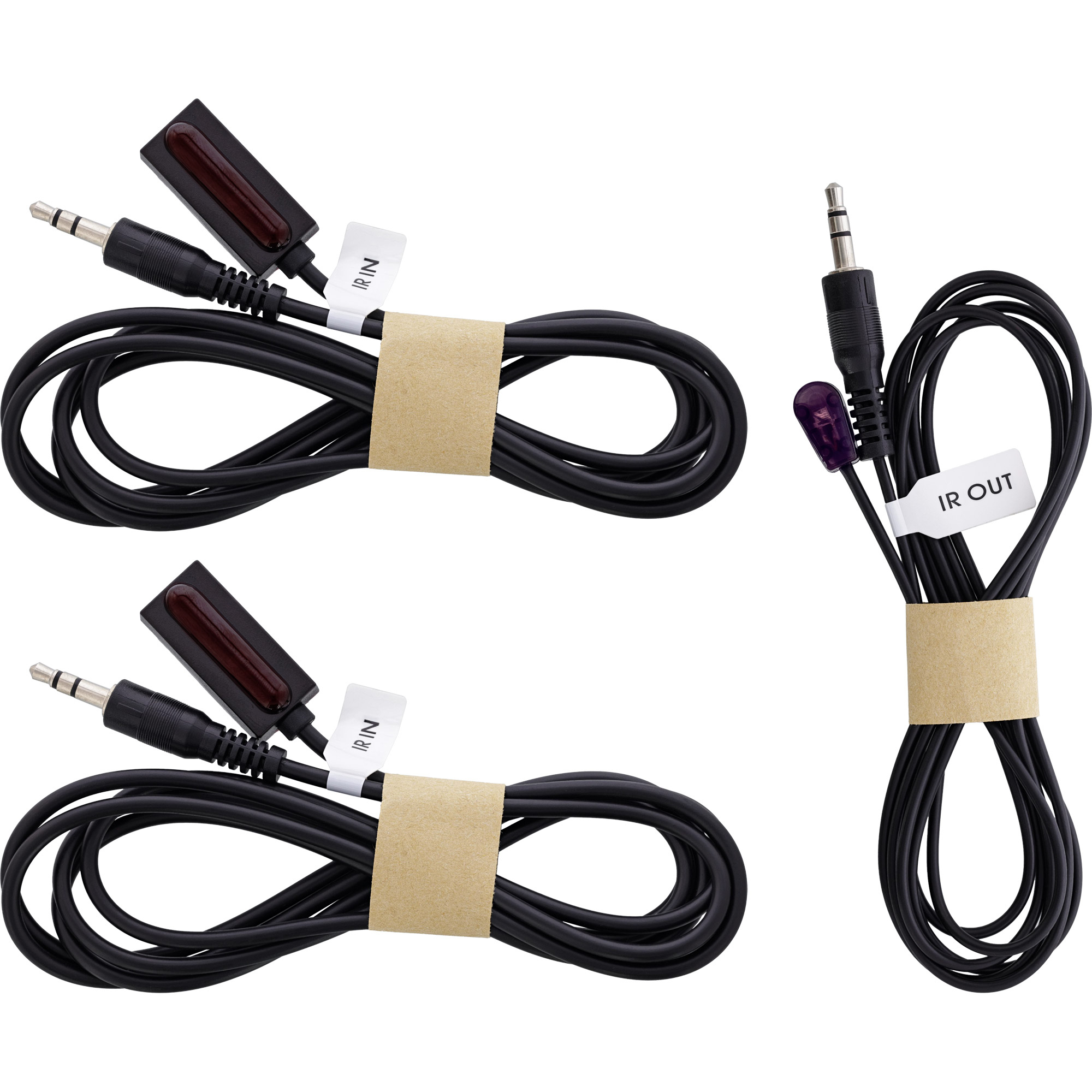

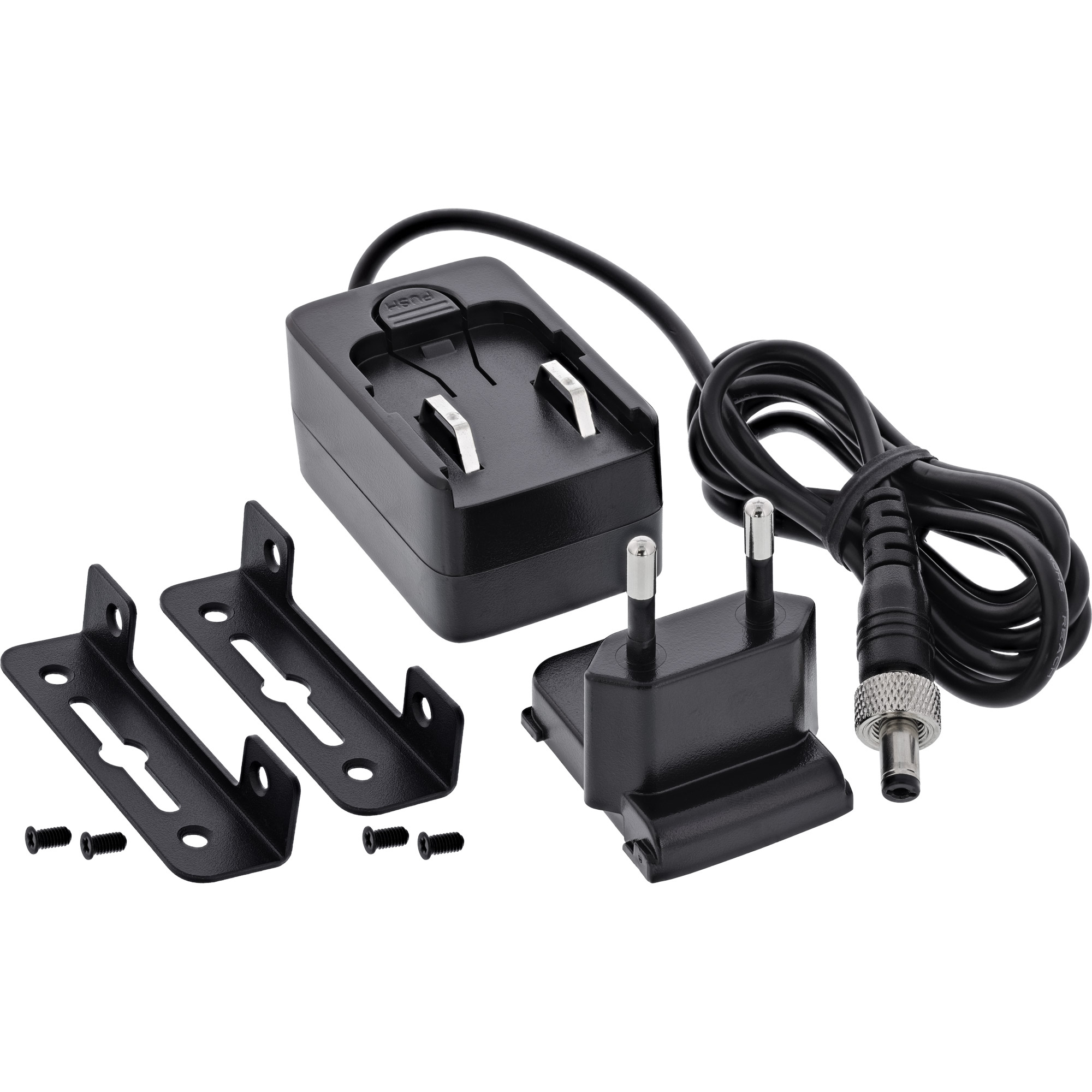

| Packaging content | 1 x HDMI extender – transmitter 2 x HDMI extender – receiver (receiver) 1 x power supply (DC 12 V / 1 A, lockable) 1 x IR transmitter cable (approx. 1.5 m) 2 x IR receiver cables (approx. 1.5 m) 2 x mounting brackets 4 x mounting screws 1 x operating instructions in German/English |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package volume | 3200 cm³ |
