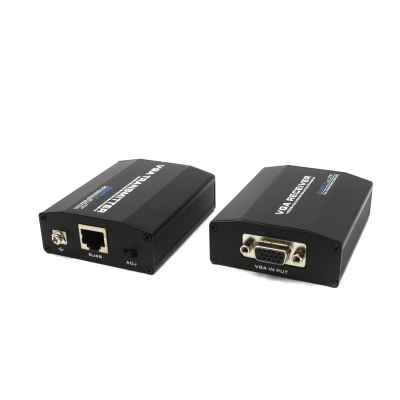

PFM710 AV extender AV transmitter & receiver Black
Model PFM710EAN 6939554931017
19 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating relative humidity (H-H)0 - 95%
- Receiver dimensions (WxDxH)85 x 64 x 28 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 95%
- Receiver dimensions (WxDxH)
- 85 x 64 x 28 mm
- Brand
- Dahua Technology
- Category
- AV Extender
- Model
- PFM710
- Part number
- PFM710
- EAN / UPC
- 6939554931017
- Also known as
- Dahua Technology PFM710 AV extender AV transmitter & receiver Black
Specifications
19 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum transfer distance | 35 m |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 4 kV |
| Mean time between failures (MTBF) | 5000 h |
| Product colour | Black |
| Certification | CE (EN55022, EN55024) FCC (47 CFR PART 15 & ANSI C63.4 ) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 85 x 64 x 28 mm |
| Receiver weight | 110 g |
| Transmitter dimensions (WxDxH) | 85 x 64 x 28 mm |
| Transmitter weight | 111 g |
