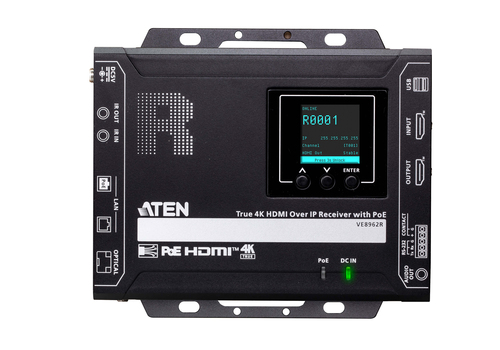

ATEN True 4K HDMI over IP Receiver with PoE
ATEN

True 4K HDMI over IP Receiver with PoE

Model VE8962R-AT-U

54 specifications
  • ConnectivityWired
  • TypeAV receiver
  • Weight740 g
  • ColourBlack
  • Power source typeDC
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV receiver
Weight
740 g
Colour
Black
Power source type
DC
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE8962R-AT-U
Part number
VE8962R-AT-U
Also known as
ATEN True 4K HDMI over IP Receiver with PoE

Specifications

54 specifications in 8 groups

Features

TypeAV receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance10000 m
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10)
Extended display identification data (EDID)Yes
Electrostatic Discharge (ESD) protectionYes
Electrostatic Discharge (ESD) protection15 kV
Baud rate19.2 Kbit/s
HDCPYes
HDCP version2.2/2.3
Impedance100 Ω
LED indicatorsPoE, Power
MaterialMetal
Rack mountingYes
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 800, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Product colourBlack

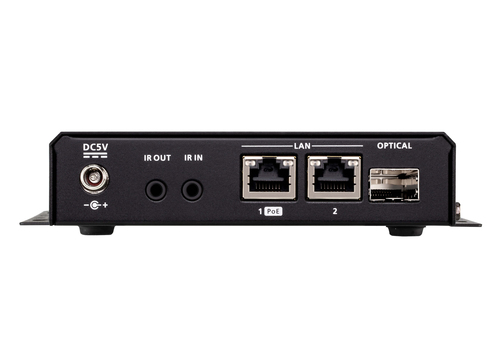

Ports & interfaces

Connectivity technologyWired
RJ-45 output ports2
HDMI in1
Number of HDMI outputs1
Fiber optic connectorSFP+
Fiber ports quantity1
USB ports quantity2
USB connector typeUSB Type-A
Audio output1
Remote (IR) input1
Remote (IR) output1
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

Power source typeDC
Operating voltage5 V
Power consumption (typical)9.1 W
Power consumption (max)11.38 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width146.9 mm
Depth170.2 mm
Height30 mm
Weight740 g

Packaging data

Package weight1.26 kg

Technical details

Country of originTaiwan
Package volume5550.1019 cm³

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width232 mm
Master (outer) case length500 mm
Master (outer) case height283 mm
Master (outer) case gross weight6.91 kg
Master (outer) case net weight5.4 kg
Master (outer) case volume32819.225 cm³
