VE8952T-AT-E AV extender AV transmitter Black
Model VE8952T-AT-EEAN 471046934039
40 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight720 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 720 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE8952T-AT-E
- Part number
- VE8952T-AT-E
- EAN / UPC
- 471046934039
- Also known as
- ATEN VE8952T-AT-E AV extender AV transmitter Black
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Front panel control (TX) | Yes |
| Extended display identification data (EDID) | Yes |
| Daisy chain | Yes |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |

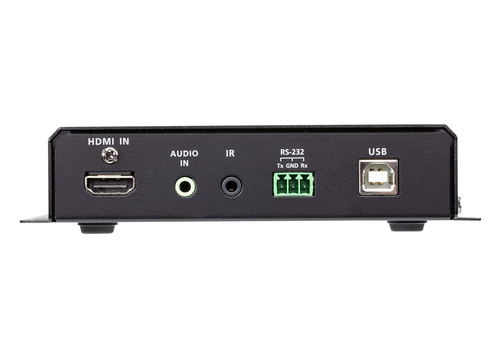

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| RS-232 input ports | 1 |
| Audio input | 1 |
| Remote (IR) input | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166 mm |
| Depth | 124.9 mm |
| Height | 29 mm |
| Weight | 720 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 965 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
