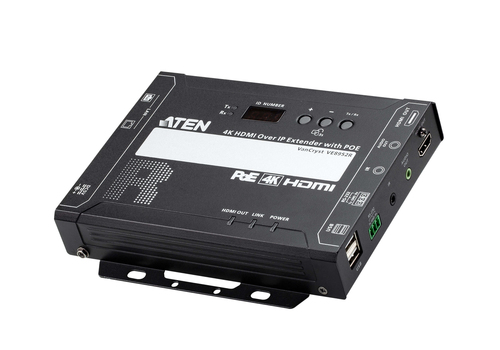

VE8952R-AT-E AV extender AV receiver Black
Model VE8952R-AT-E
37 specifications
- ConnectivityWired
- TypeAV receiver
- Weight730 g
- ColourBlack
- External power adapterYes
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 730 g
- Colour
- Black
- External power adapter
- Yes
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE8952R-AT-E
- Part number
- VE8952R-AT-E
- Also known as
- ATEN VE8952R-AT-E AV extender AV receiver Black
Specifications
37 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Front panel control (RX) | Yes |
| Extended display identification data (EDID) | Yes |
| Daisy chain | Yes |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Rack mounting | Yes |
| Product colour | Black |

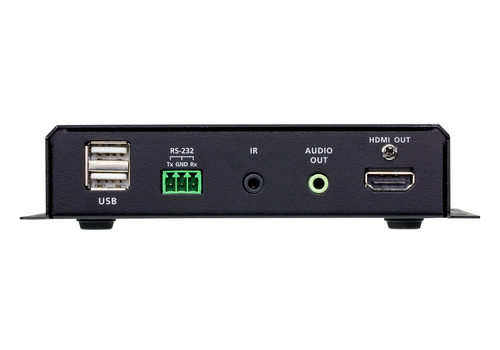

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A |
| RS-232 output ports | 1 |
| Audio output | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124.9 mm |
| Depth | 166 mm |
| Height | 29 mm |
| Weight | 730 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 975 g |
