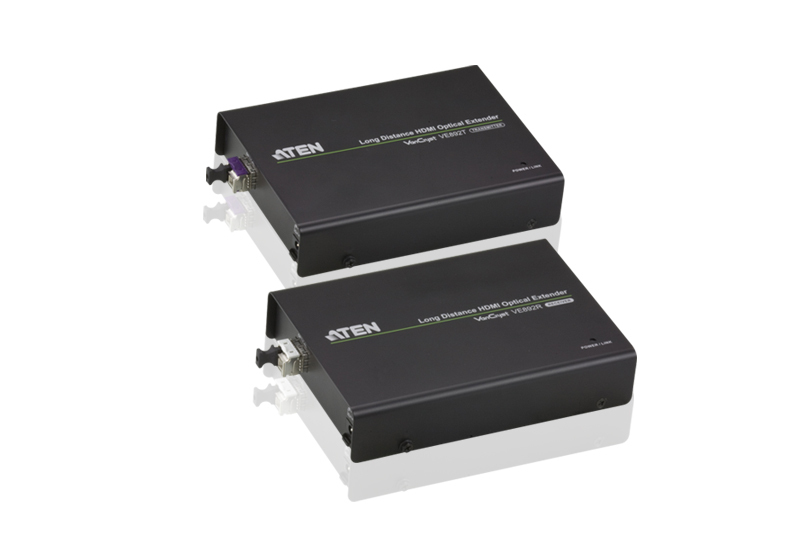

ATEN VE892 AV transmitter & receiver Black

ATEN VE892 AV transmitter & receiver Black

Model VE892Part no. VE892-AT-GEAN 6727920035472

42 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight1.31 kg
  • ColourBlack
  • Operating voltage5.3 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
1.31 kg
Colour
Black
Operating voltage
5.3 V
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE892
Part numbers
VE892-AT-G, VE892-AT-E, VE892
EAN / UPC
6727920035472, 672792003547, 4710423778184
Also known as
ATEN VE892 AV transmitter & receiver Black

Specifications

42 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Maximum transfer distance20000 m
Bandwidth6.75 Gbit/s
HDCPYes
HDCP version1.4
Impedance100 Ω
LED indicatorsYes
Supported video modes1080p
Product colourBlack
CertificationBlu-ray,Supports(3D),Supports(PS3),HDMI,ROHS,Weee
Compatible products2X-EA12,2L-7D02H-1,2L-7D03H,2L-7D05H,2L-7D10H,2L-7D15H,2L-7D20H,2L-7D02H,VE-RMK1U,VE7832,VE7833,VE7834,VE7835,2L-7DA3H,2L-7DA6H,2L-7D01H,2L-7D05H-1,CS1842,CS1844,VE781010,VE781020,VE781030

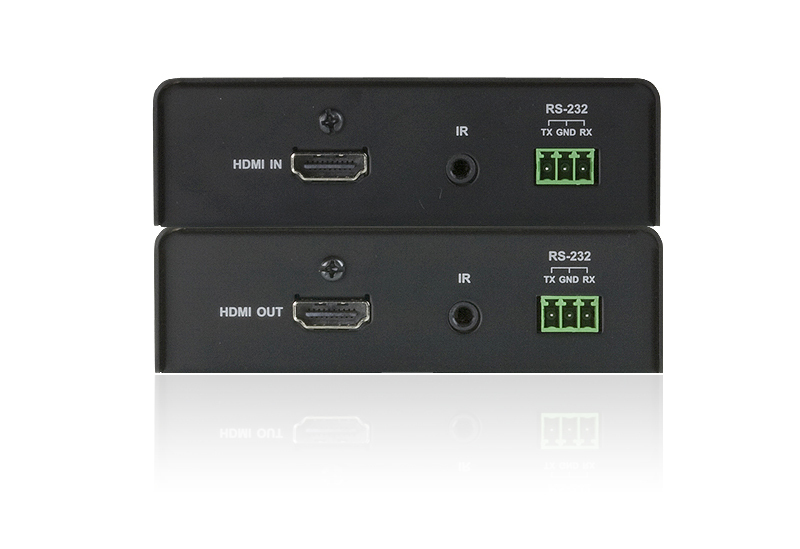

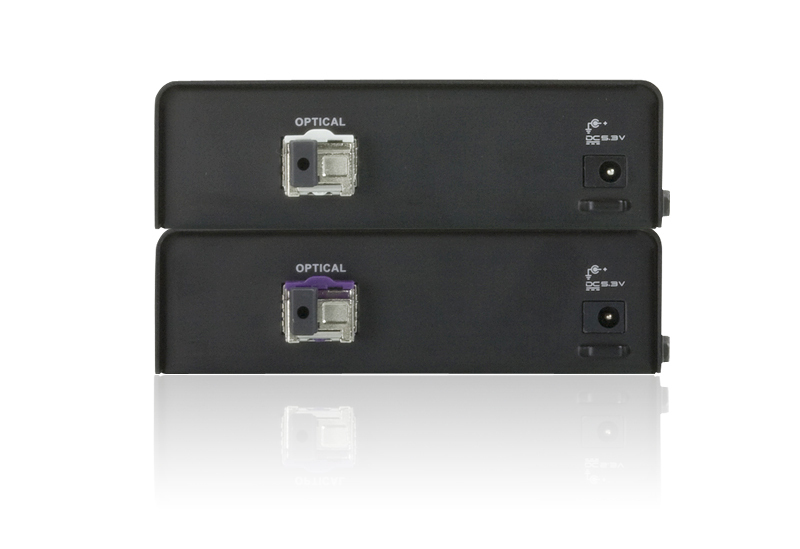

Ports & interfaces

Connectivity technologyWired
HDMI in1
Number of HDMI outputs1
Serial interface typeRS-232
Serial ports quantity2
DC-in jackYes

Power

Operating voltage5.3 V
Power consumption (transmitter) (max)5.8 W
Power consumption (receiver) (max)4.69 W
External power adapterYes

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight1.31 kg
Receiver dimensions (WxDxH)103 x 141.7 x 30 mm
Receiver weight440 g
Transmitter dimensions (WxDxH)103 x 141.7 x 30 mm
Transmitter weight440 g

Packaging data

Quantity per pack2 pc(s)
Package width100 mm
Package depth283 mm
Package height173 mm
Package weight1.59 kg

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width292 mm
Master (outer) case length517 mm
Master (outer) case height194 mm
Master (outer) case gross weight8.53 kg
Master (outer) case net weight655 g
Master (outer) case volume29166.35 cm³
