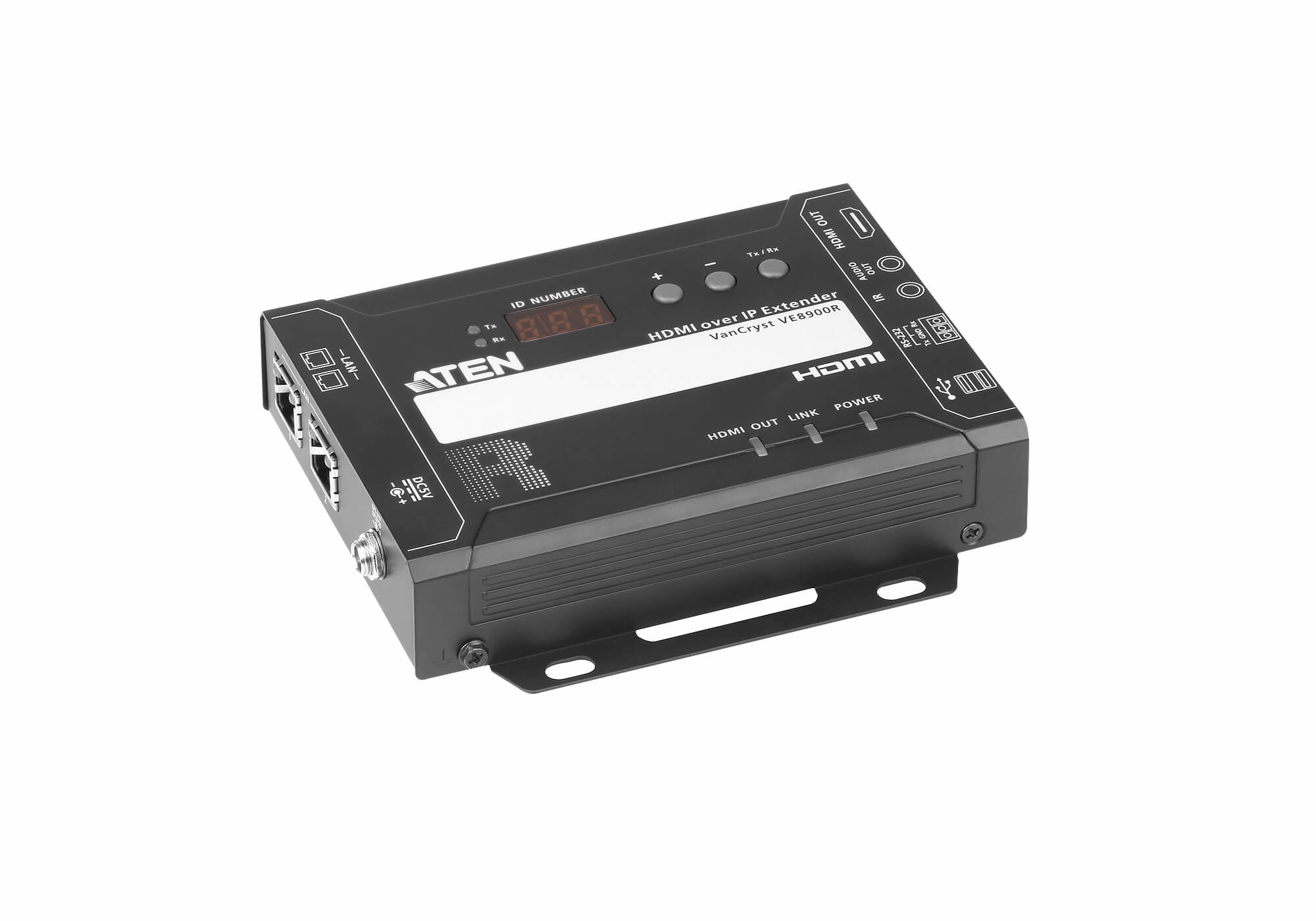

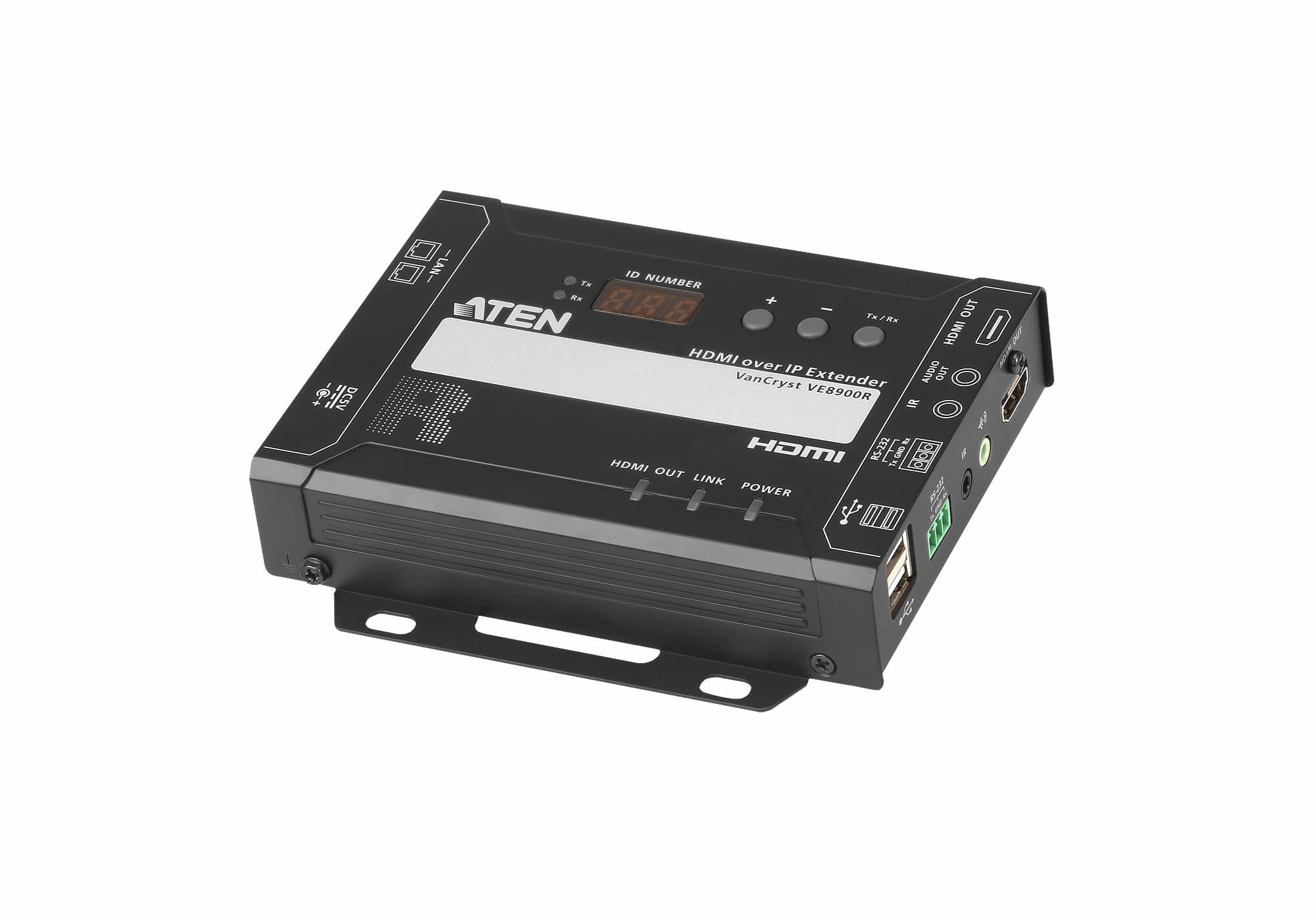

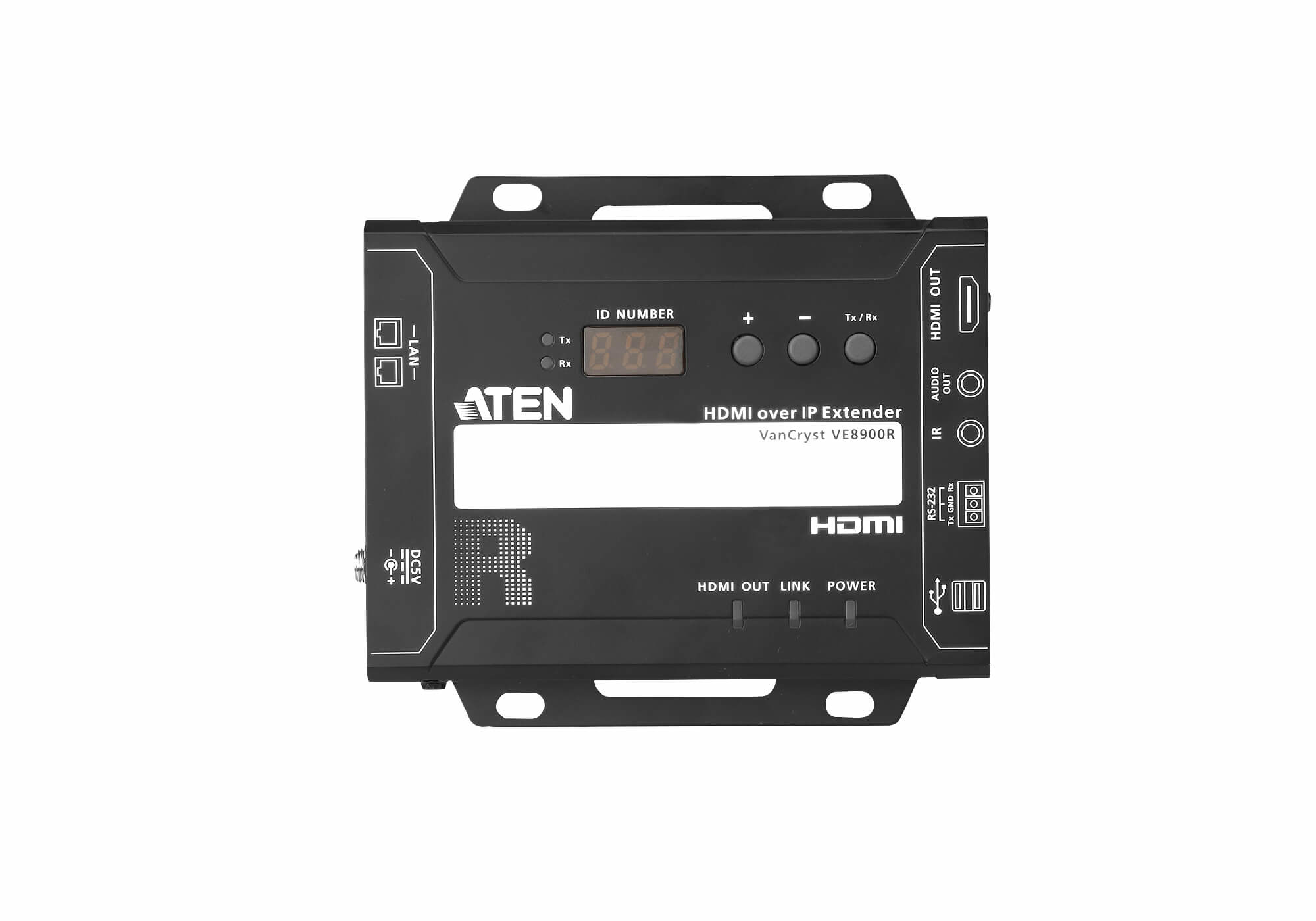

HDMI over IP Receiver
Model VE8900R-AT-GEAN 4719264645662
39 specifications
- ConnectivityWired
- TypeAV receiver
- Weight630 g
- ColourBlack
- Operating voltage (receiver)5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 630 g
- Colour
- Black
- Operating voltage (receiver)
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE8900R-AT-G
- Part number
- VE8900R-AT-G
- EAN / UPC
- 4719264645662
- Also known as
- ATEN HDMI over IP Receiver
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Impedance | 100 Ω |
| Material | Metal |
| Supported video modes | 1080p |
| Product colour | Black |

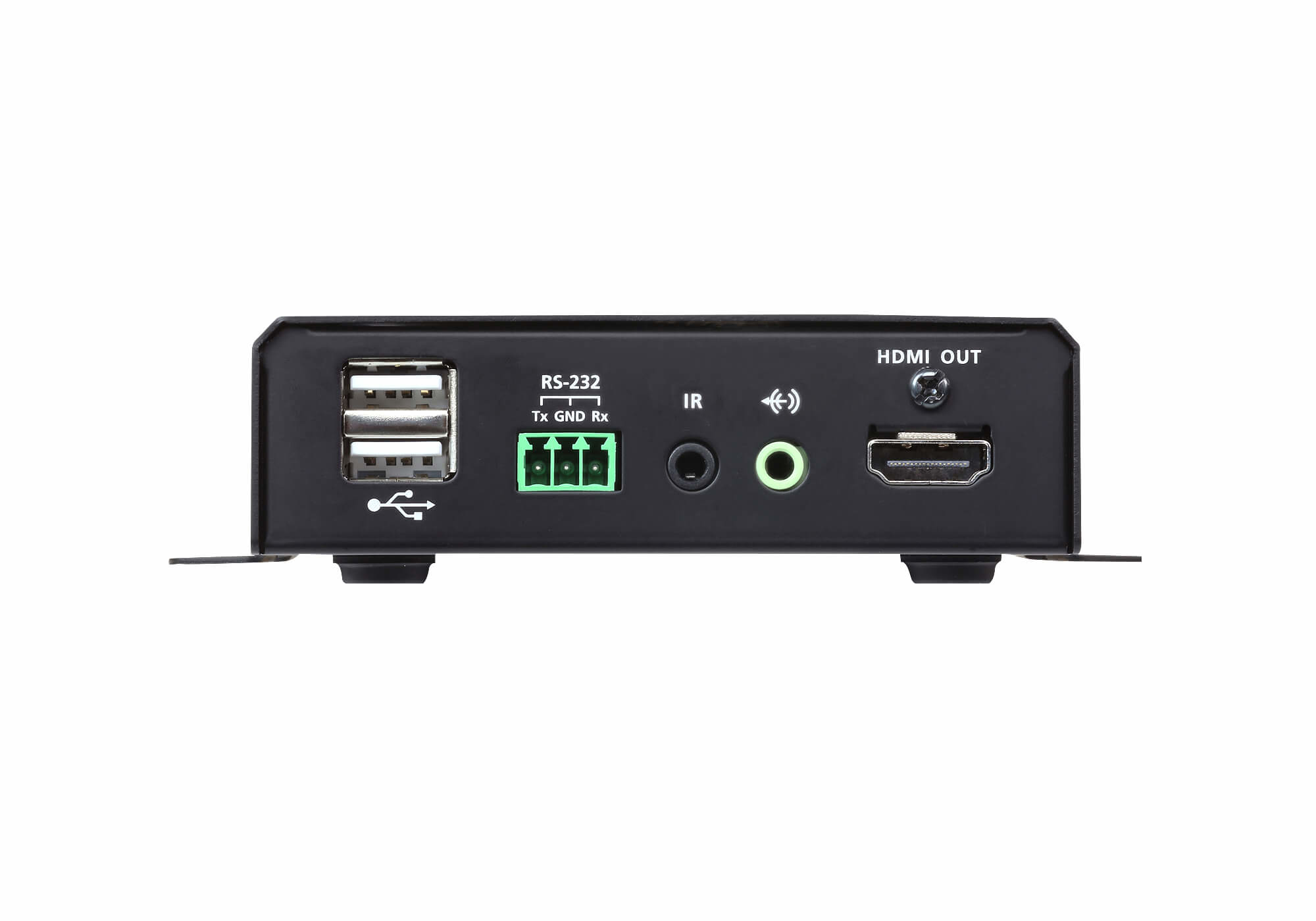

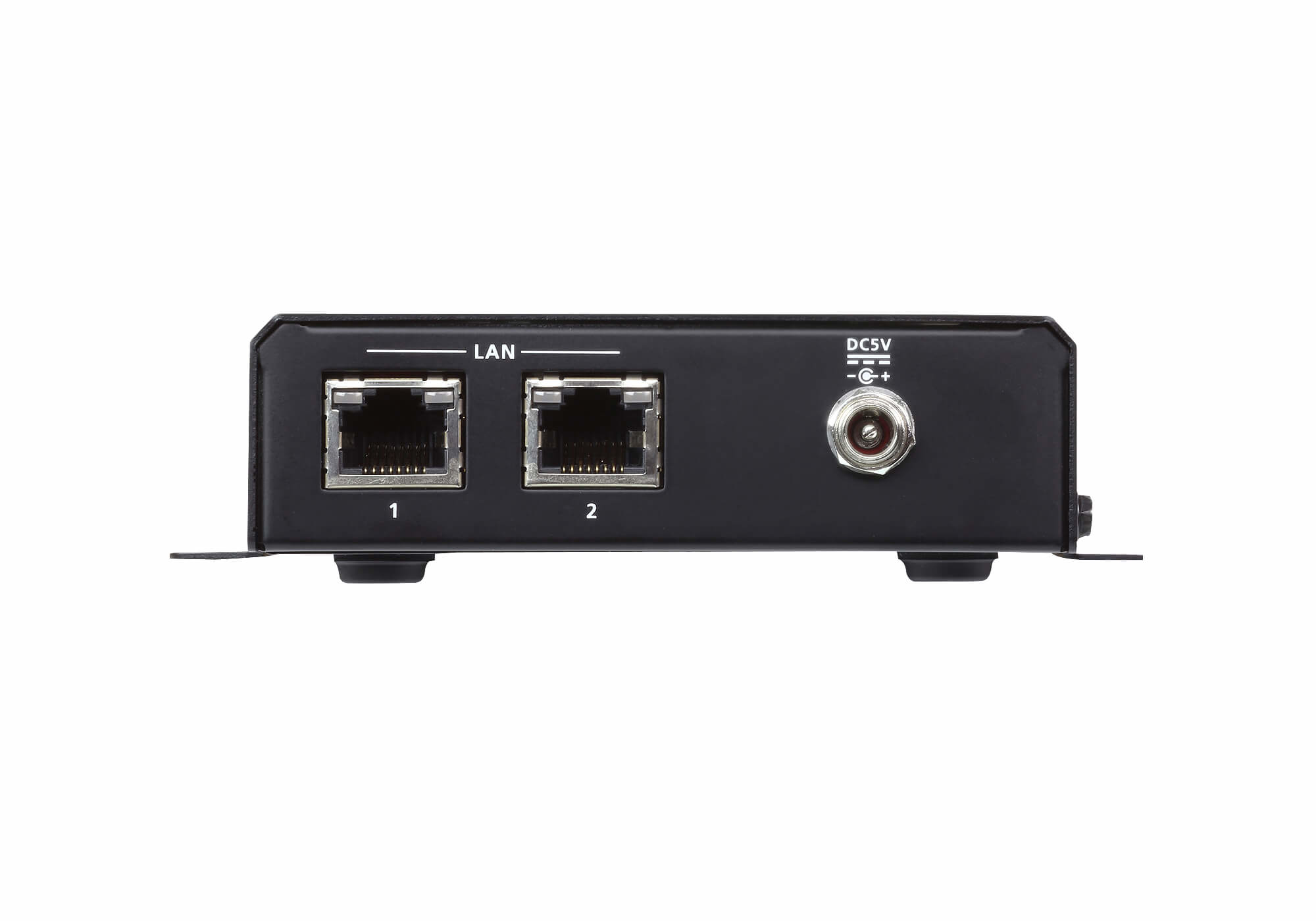

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (RX) | 4.28 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 136 mm |
| Depth | 101 mm |
| Height | 29.6 mm |
| Weight | 630 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 784 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.28 kg |
| Master (outer) case net weight | 3.15 kg |
| Products per master (outer) case | 5 pc(s) |
