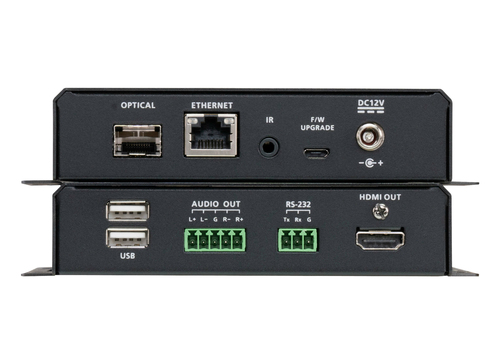

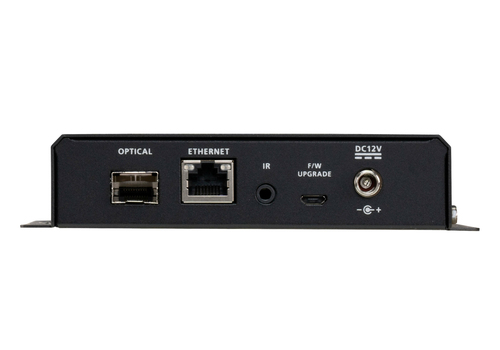

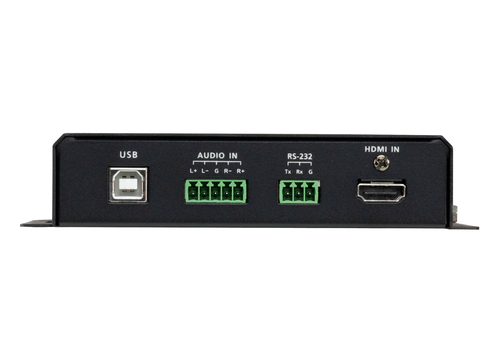

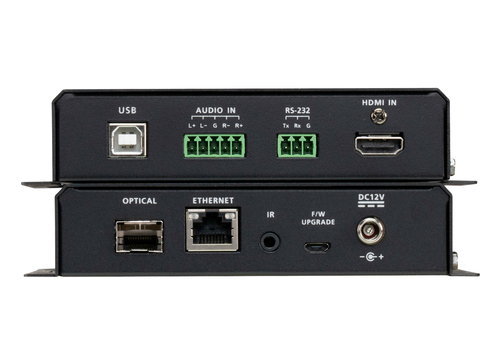

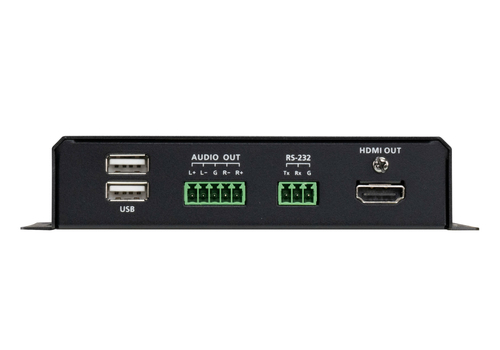

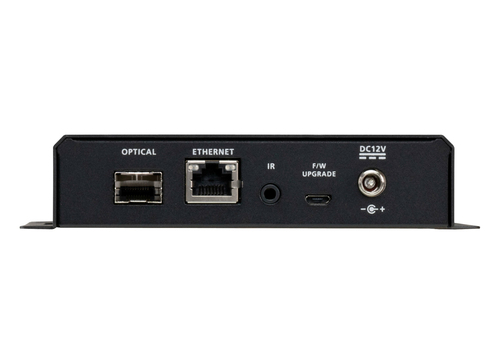

True 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))
Model VE883AK2-AT-E
56 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)146.9 x 169.4 x 30 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 146.9 x 169.4 x 30 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE883AK2-AT-E
- Part number
- VE883AK2-AT-E
- Also known as
- ATEN True 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))
Specifications
56 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Fiber optic wavelengths supported | 1310 nm |
| Bidirectional | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | LC |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | Micro-USB B |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 7.01 W |
| Power consumption (receiver) (max) | 6.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 146.9 x 169.4 x 30 mm |
| Receiver weight | 660 g |
| Transmitter dimensions (WxDxH) | 146.9 x 169.4 x 30 mm |
| Transmitter weight | 670 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.73 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| IR emitter included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Country of origin | Taiwan |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 8.83 kg |
