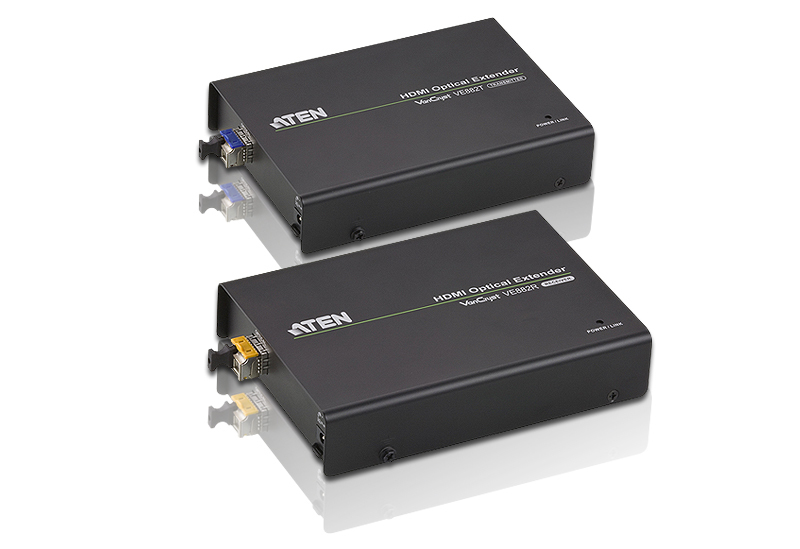

HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m)
Model VE882-AT-GEAN 4710423778177
47 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight1.43 kg
- ColourBlack
- Operating voltage (transmitter)5.3 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 1.43 kg
- Colour
- Black
- Operating voltage (transmitter)
- 5.3 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE882-AT-G
- Part number
- VE882-AT-G
- EAN / UPC
- 4710423778177
- Also known as
- ATEN HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m)
Specifications
47 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 600 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Impedance | 100 Ω |
| Material | Metal |
| Rack mounting | Yes |
| Supported video modes | 1080p |
| Product colour | Black |

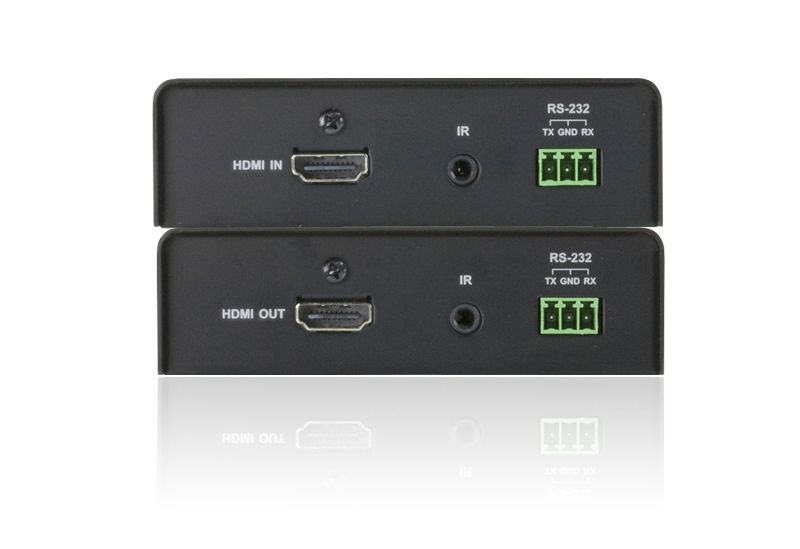

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |

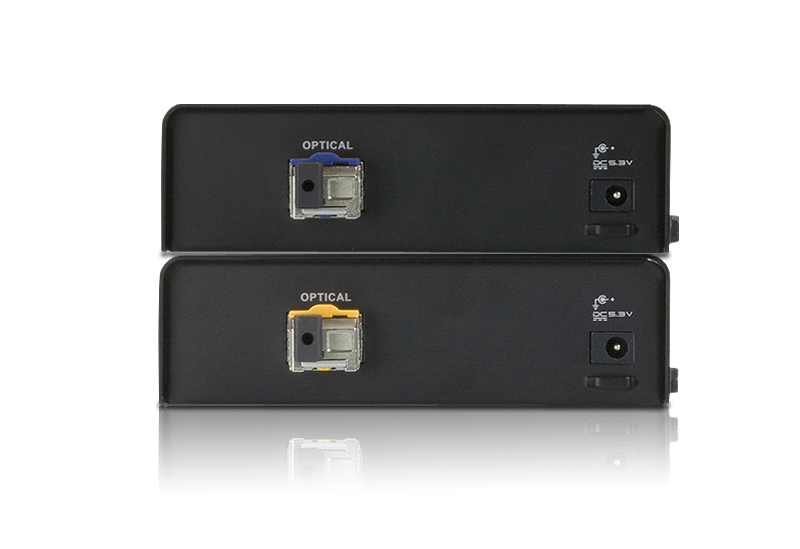

| Fiber optic connector | SFP |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5.3 V |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (TX) | 5.8 W |
| Power consumption (RX) | 4.69 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.43 kg |
| Receiver dimensions (WxDxH) | 141.7 x 103 x 30 mm |
| Receiver weight | 440 g |
| Transmitter dimensions (WxDxH) | 141.7 x 103 x 30 mm |
| Transmitter weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.57 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 8.66 kg |
| Master (outer) case net weight | 7.15 kg |
| Products per master (outer) case | 5 pc(s) |
