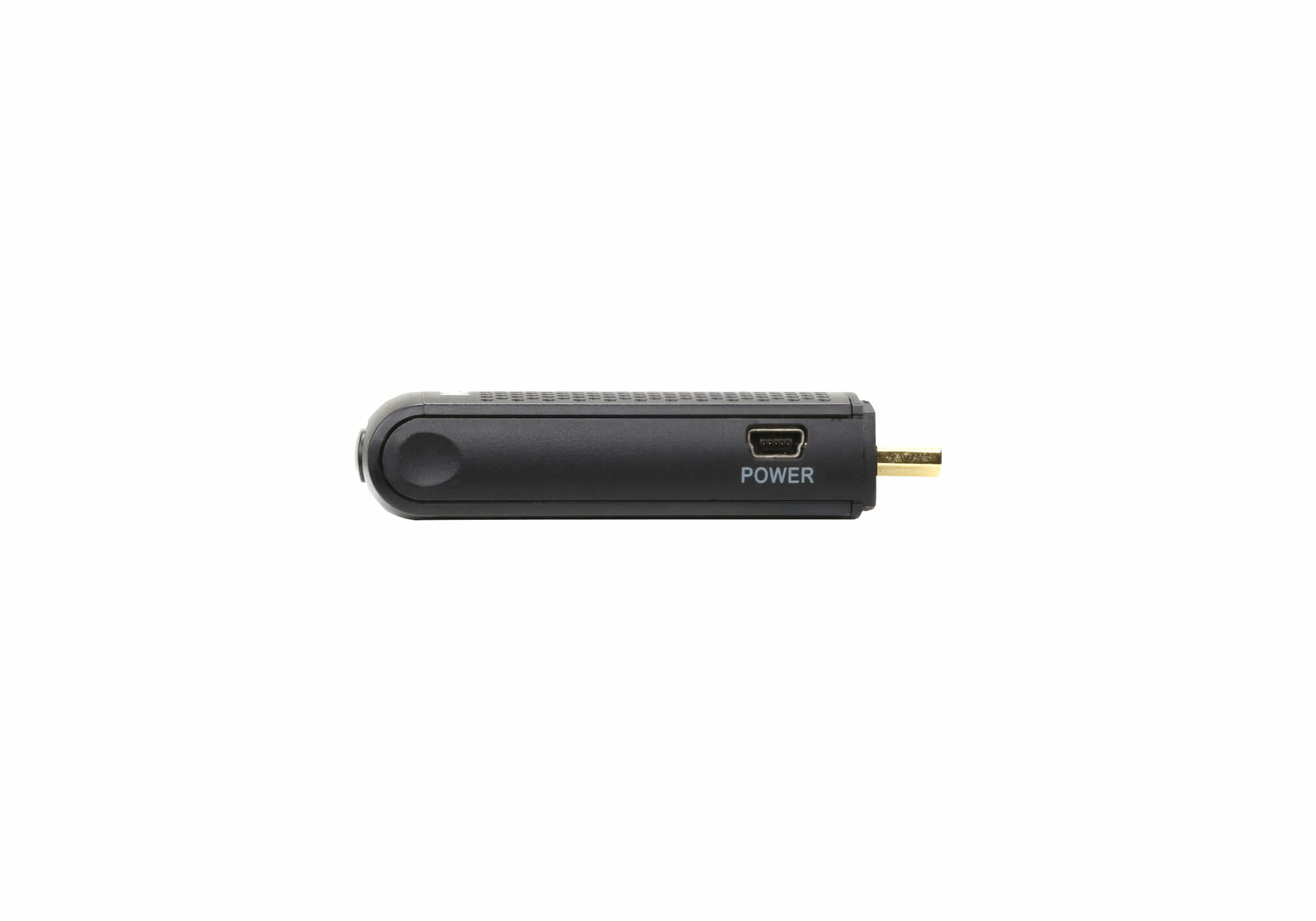

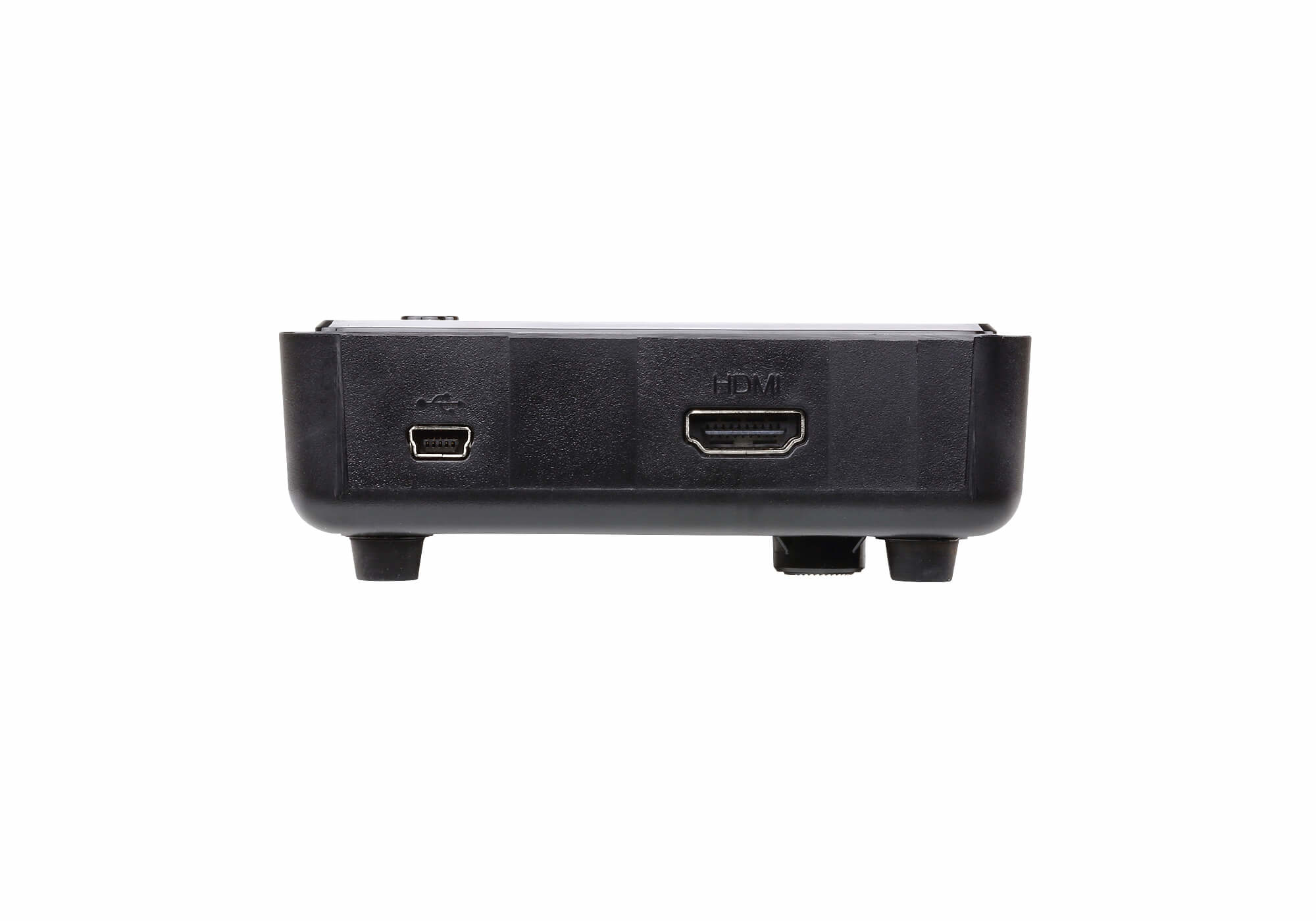

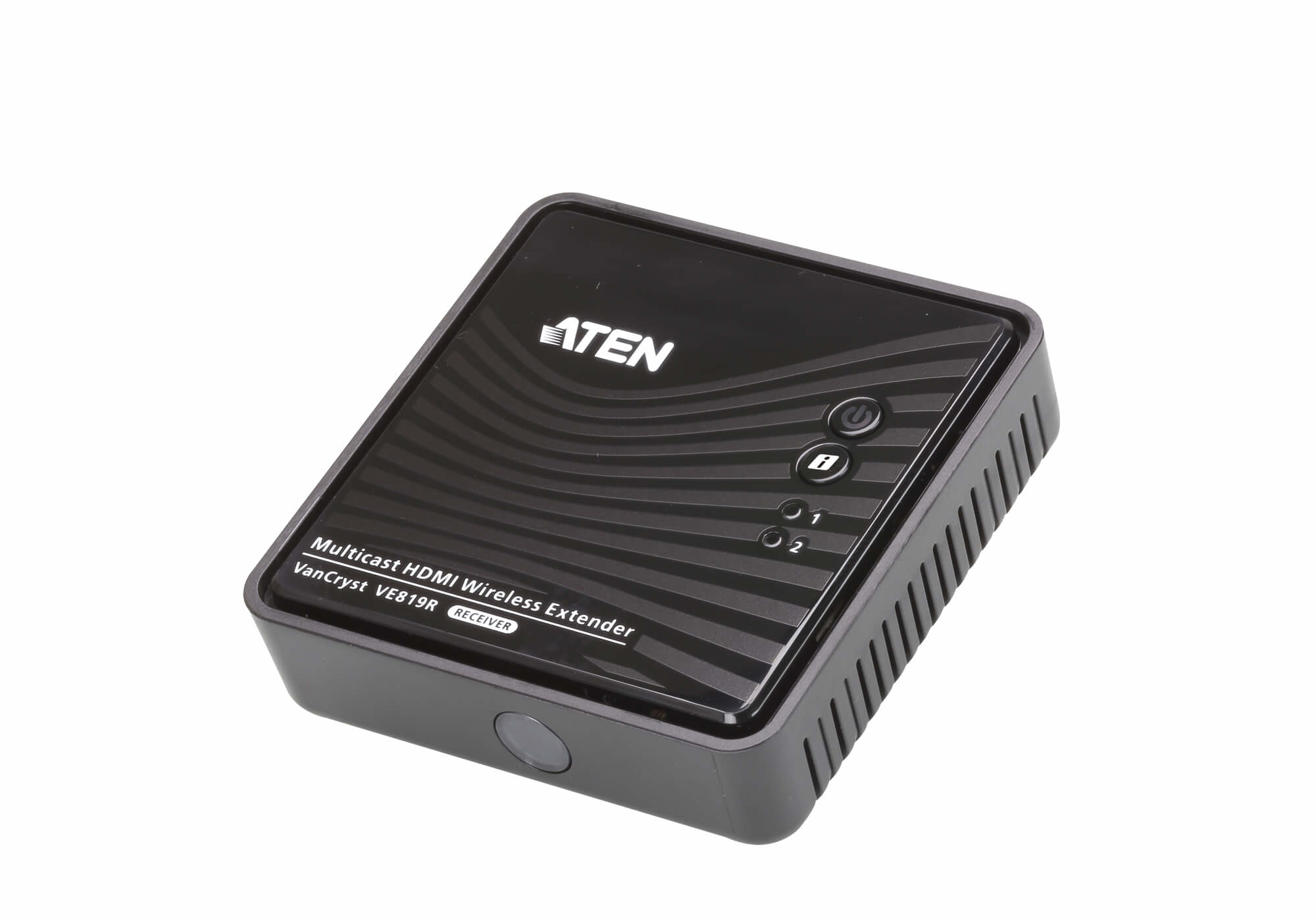

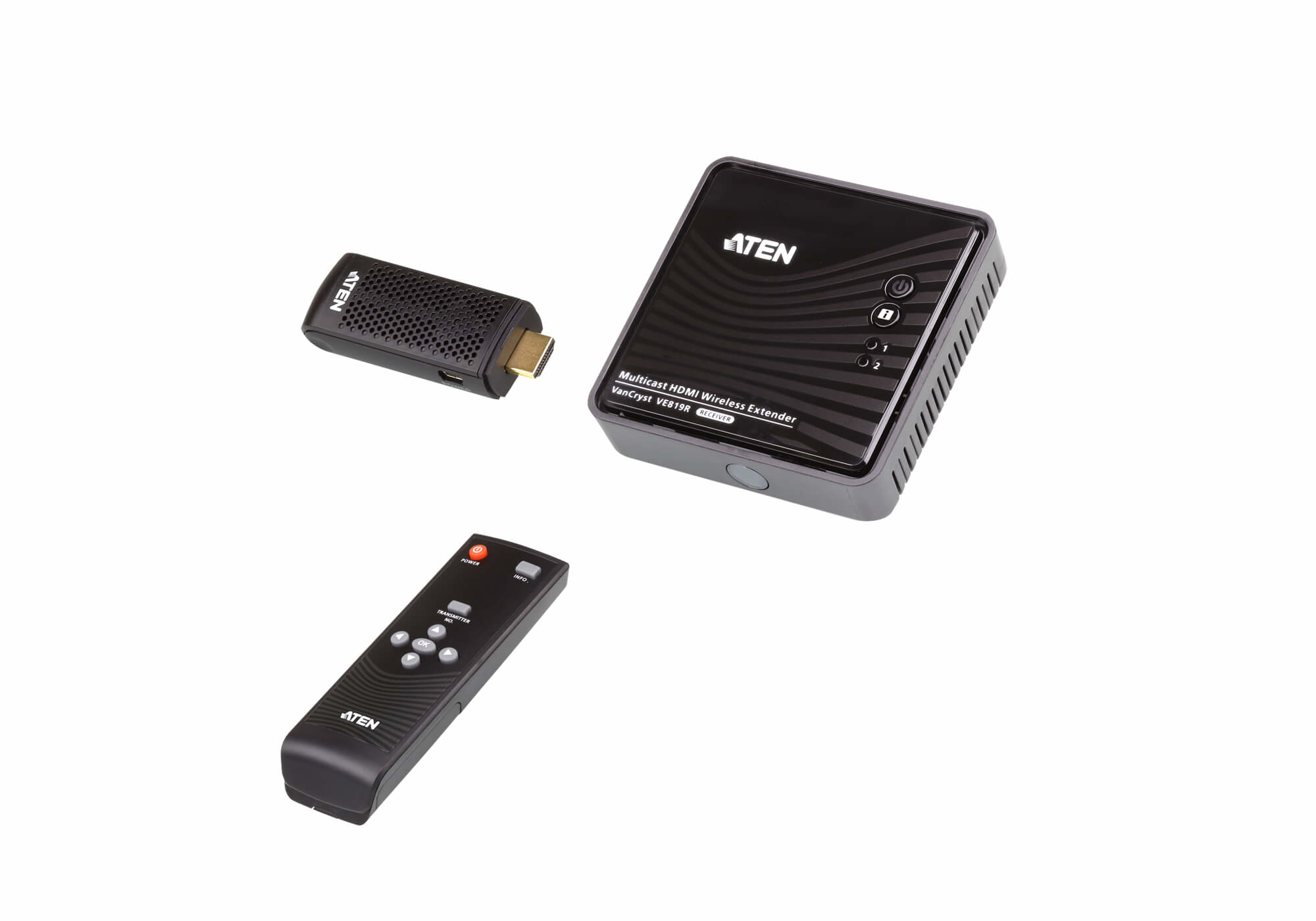

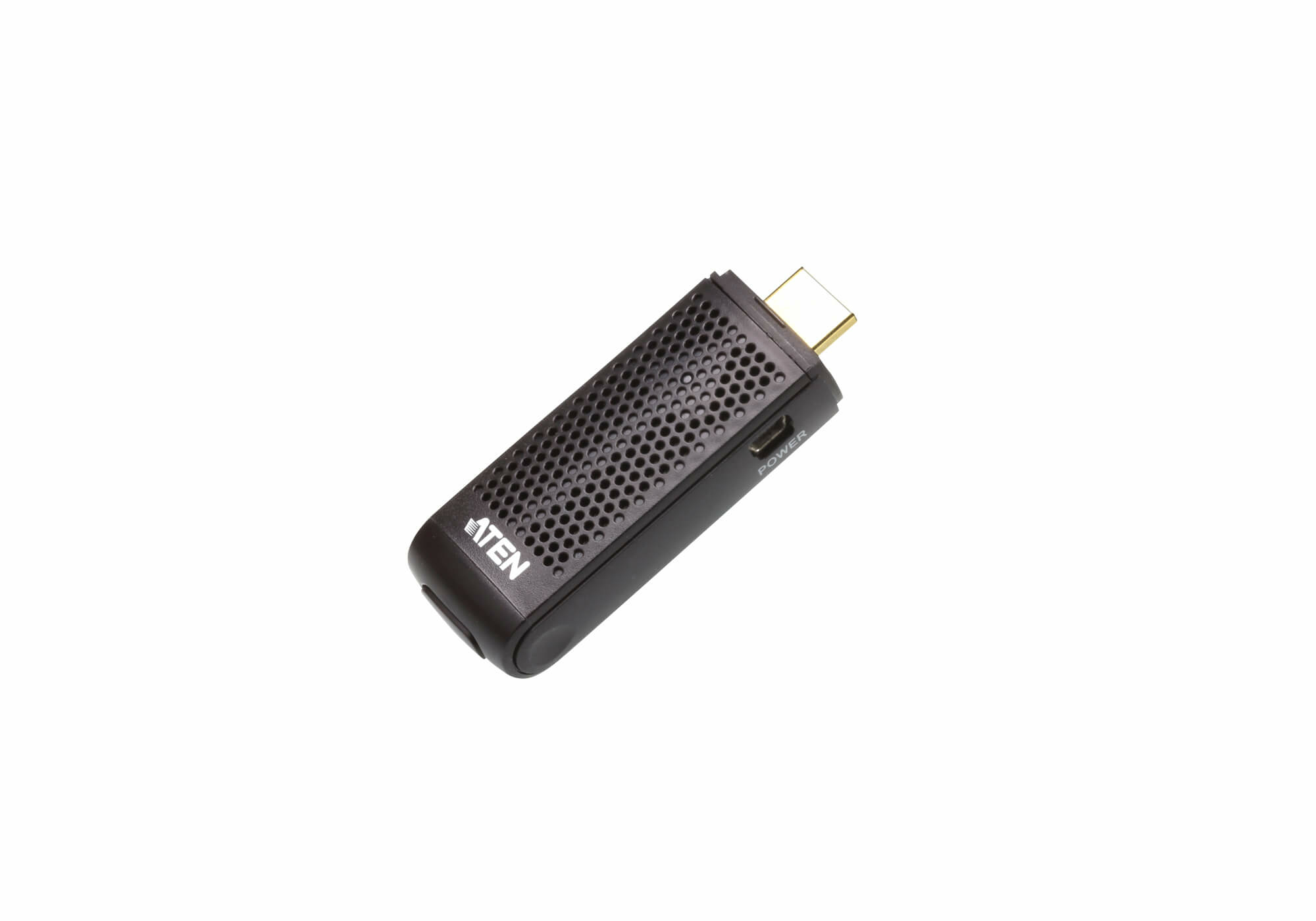

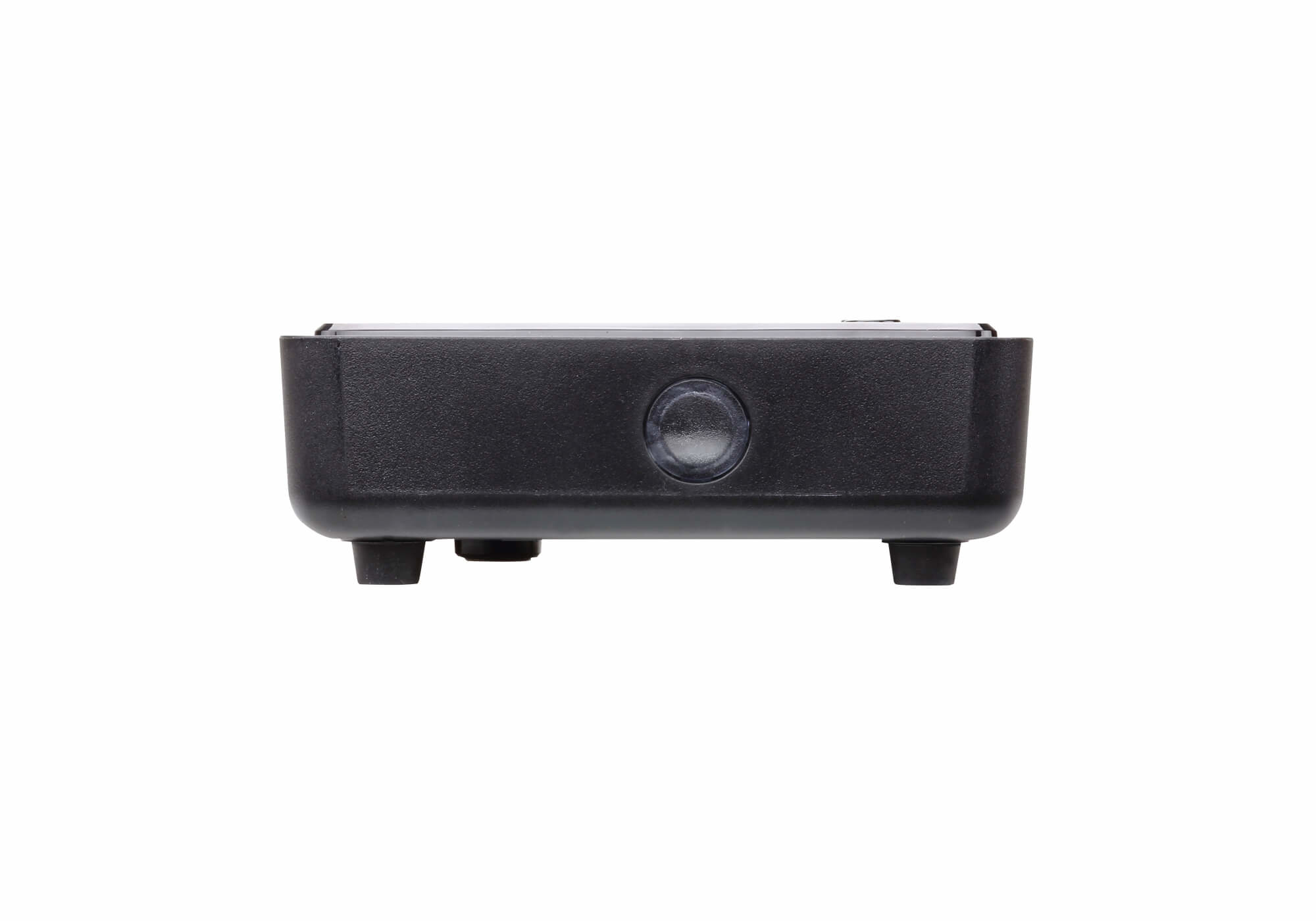

VE819-ATA-E AV extender AV transmitter & receiver Black
Model VE819-ATA-E
24 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)95 x 95 x 33.3 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 95 x 95 x 33.3 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE819-ATA-E
- Part number
- VE819-ATA-E
- Also known as
- ATEN VE819-ATA-E AV extender AV transmitter & receiver Black
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 10 m |
| Maximum refresh rate | 60 Hz |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| USB connector type | Mini-USB |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 95 x 95 x 33.3 mm |
| Receiver weight | 130 g |
| Transmitter dimensions (WxDxH) | 30 x 70.3 x 17.5 mm |
| Transmitter weight | 30 g |
