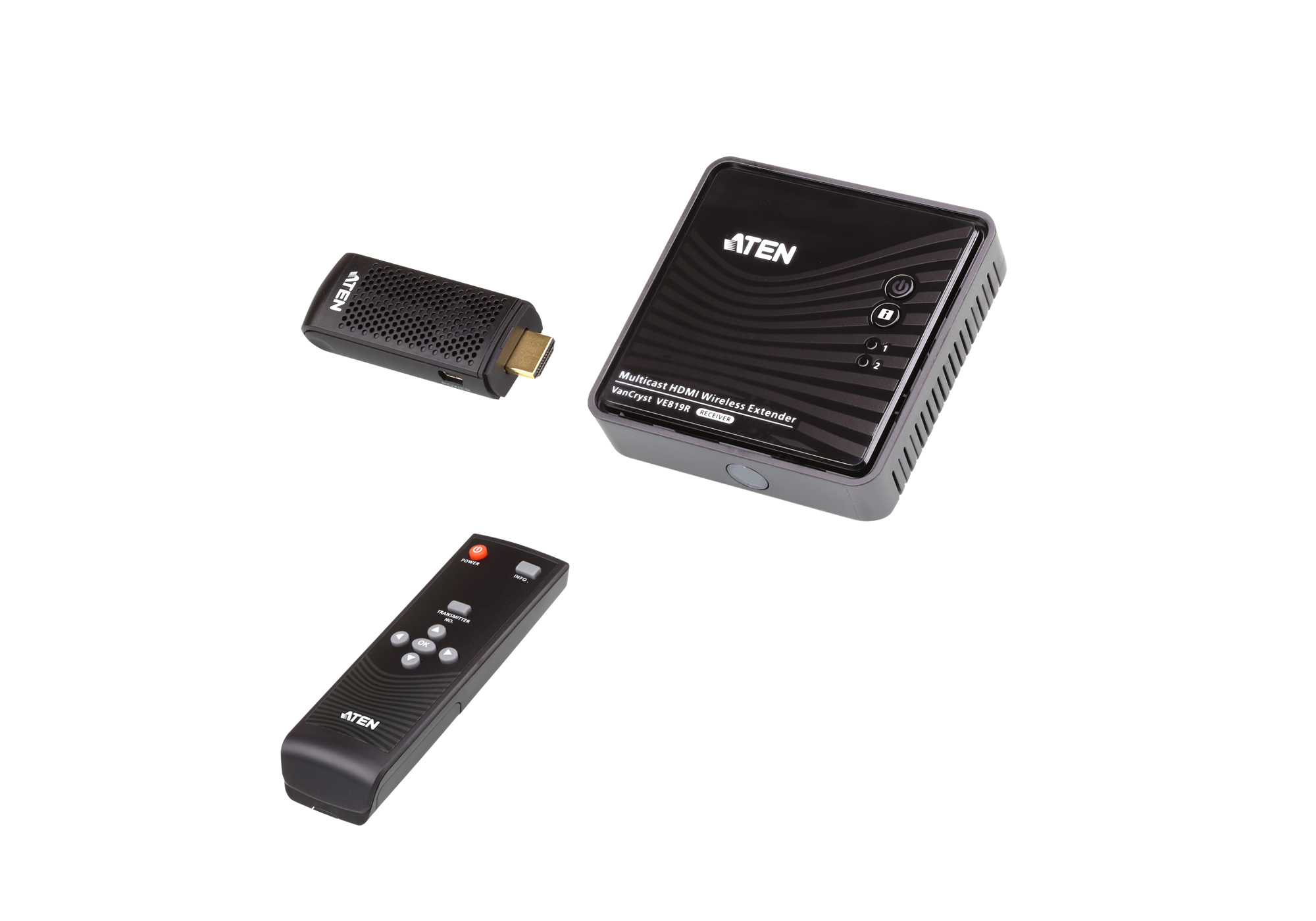

VE819-AT-E AV extender AV transmitter & receiver Black
Model VE819-AT-E
40 specifications
- ConnectivityWireless
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage (transmitter)5 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)95 x 95 x 33.3 mm
Overview
- Connectivity
- Wireless
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage (transmitter)
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 95 x 95 x 33.3 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE819-AT-E
- Part number
- VE819-AT-E
- Also known as
- ATEN VE819-AT-E AV extender AV transmitter & receiver Black
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 10 m |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Plastic |
| Plug and Play | Yes |
| Remote control type | IR |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Certification | FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Video in | 1 |
| Video out | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (transmitter) (max) | 7.5 W |
| Power consumption (receiver) (max) | 7.5 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 95 x 95 x 33.3 mm |
| Receiver weight | 130 g |
| Transmitter dimensions (WxDxH) | 30 x 70.3 x 17.5 mm |
| Transmitter weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Warranty card | Yes |
| Manual | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
