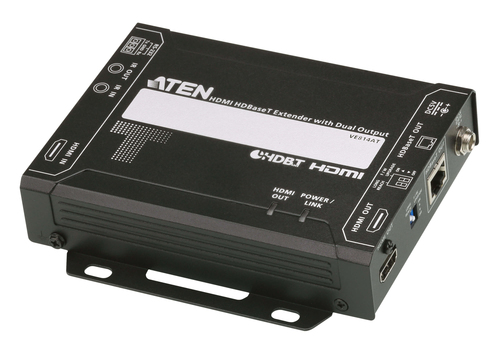

VE814AT-ATA-E AV extender AV transmitter Black
Model VE814AT-ATA-E
43 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight450 g
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Width123 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 450 g
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Width
- 123 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE814AT-ATA-E
- Part number
- VE814AT-ATA-E
- Also known as
- ATEN VE814AT-ATA-E AV extender AV transmitter Black
Specifications
43 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| Material | Metal |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2160 |
| Product colour | Black |

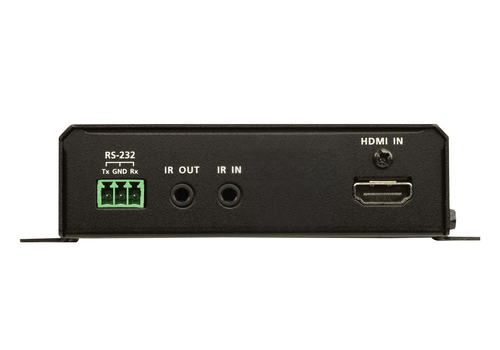

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | No |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 140.2 mm |
| Height | 30 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
