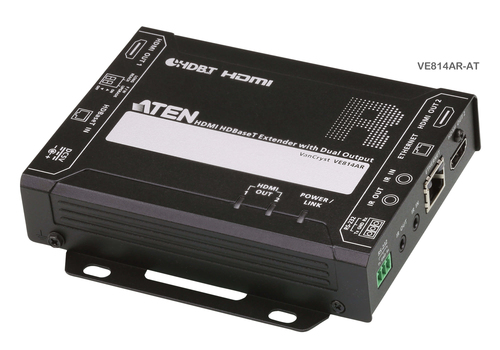

VE814AR-ATA-E AV extender AV receiver Black
Model VE814AR-ATA-E
38 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)123 x 140.2 x 30 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 123 x 140.2 x 30 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE814AR-ATA-E
- Part number
- VE814AR-ATA-E
- Also known as
- ATEN VE814AR-ATA-E AV extender AV receiver Black
Specifications
38 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Infrared (IR) frequency range | 30 - 56 kHz |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDBaseT port | Yes |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 7.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 123 x 140.2 x 30 mm |
| Receiver weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
