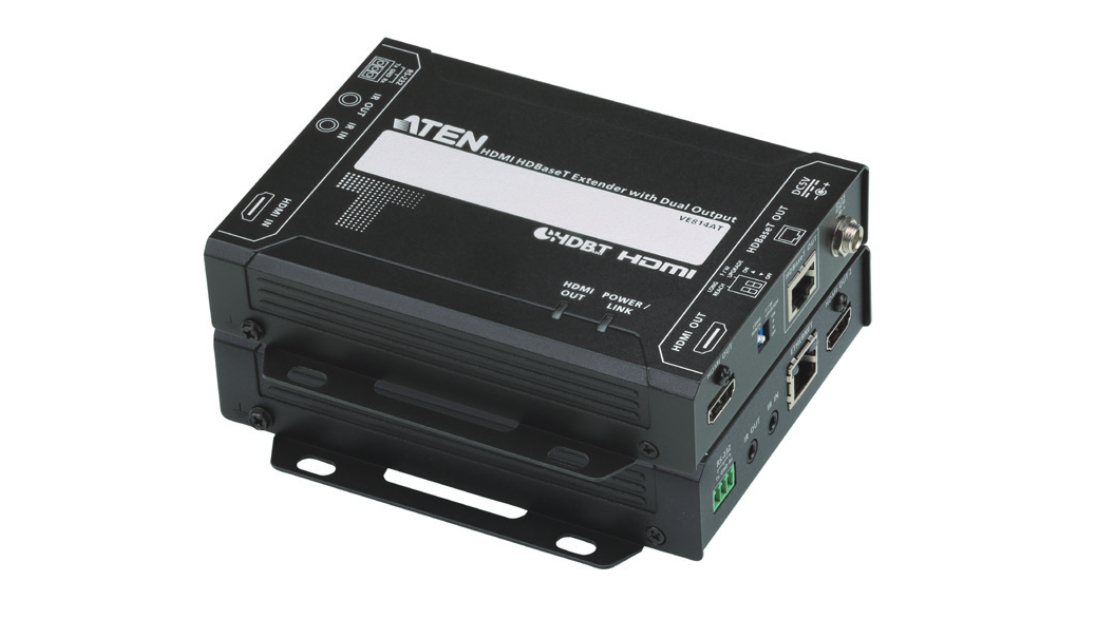

HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
Model VE814A-ATA-GEAN 4710469342318
51 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)123 x 140.2 x 30 mm
- Package volume4813.86 cm³
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 123 x 140.2 x 30 mm
- Package volume
- 4813.86 cm³
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE814A-ATA-G
- Part number
- VE814A-ATA-G
- EAN / UPC
- 4710469342318
- Also known as
- ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
Specifications
51 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Infrared (IR) frequency range | 30 - 56 kHz |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 3 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 450 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 123 x 140.2 x 30 mm |
| Receiver weight | 470 g |
| Transmitter dimensions (WxDxH) | 123 x 140.2 x 30 mm |
| Transmitter weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.44 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Package volume | 4813.86 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 7.89 kg |
| Master (outer) case net weight | 6.25 kg |
| Master (outer) case volume | 29166.35 cm³ |
