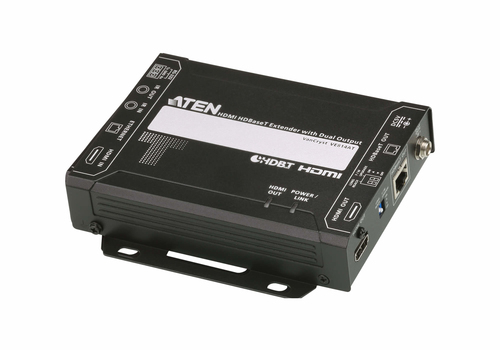

ATEN VE814A AV extender AV transmitter & receiver Black

ATEN VE814A AV extender AV transmitter & receiver Black

Model VE814AEAN 881317518361

35 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)123 x 140.4 x 30 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
123 x 140.4 x 30 mm
Brand
ATEN
Category
AV Extender
Model
VE814A
Part numbers
VE814A, VE814A-AT-E
EAN / UPC
881317518361
Also known as
ATEN VE814A AV extender AV transmitter & receiver Black

Specifications

35 specifications in 7 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance150 m
3DYes
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
Consumer Electronics Control (CEC) supportYes
HDCPYes
Impedance100 Ω
MaterialMetal
Plug and PlayYes
Rack mountingYes
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs3
Remote (IR) input2
Remote (IR) output2
DC-in jackYes

Power

Operating voltage5 V
Power consumption (transmitter) (max)5.1 W
Power consumption (receiver) (max)7.9 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)123 x 140.4 x 30 mm
Receiver weight470 g
Transmitter dimensions (WxDxH)123 x 140.4 x 30 mm
Transmitter weight450 g

Packaging content

AC adapter includedYes
ManualYes

Technical details

Compliance certificatesRoHS
