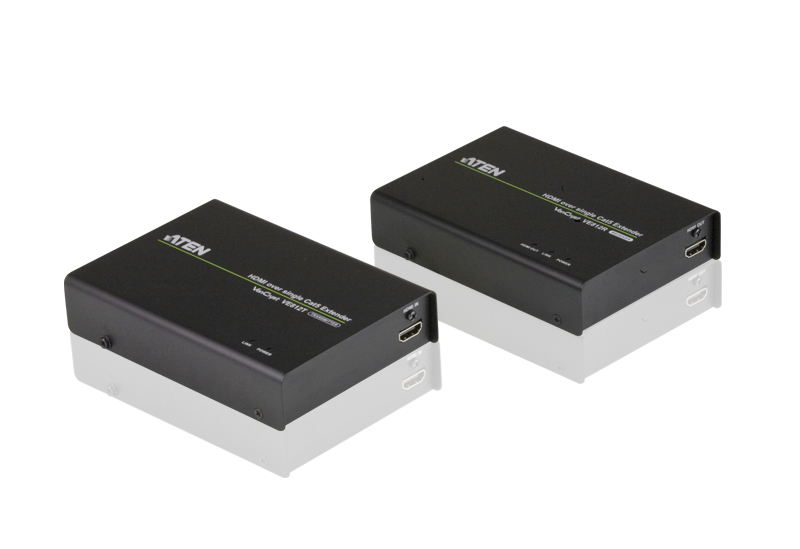

ATEN VE812-AT-G AV extender AV transmitter & receiver Black
ATEN

VE812-AT-G AV extender AV transmitter & receiver Black

Model VE812-AT-GEAN 4054842369241

50 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight1.16 kg
  • ColourBlack
  • Operating voltage (transmitter)5.3 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
1.16 kg
Colour
Black
Operating voltage (transmitter)
5.3 V
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE812-AT-G
Part number
VE812-AT-G
EAN / UPC
4054842369241, 5054533727168, 5054629608272, 6727920044382
Also known as
ATEN VE812-AT-G AV extender AV transmitter & receiver Black

Specifications

50 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5, Cat5e, Cat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Electrostatic Discharge (ESD) protectionYes
Electrostatic Discharge (ESD) protection15 kV
3DYes
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
Consumer Electronics Control (CEC) supportYes
HDCPYes
HDCP version2.2
Impedance100 Ω
MaterialMetal
Supported graphics resolutions3840 x 2160, 4096 x 2160
Supported video modes1080p
Product colourBlack

Ports & interfaces

Connectivity technologyWired

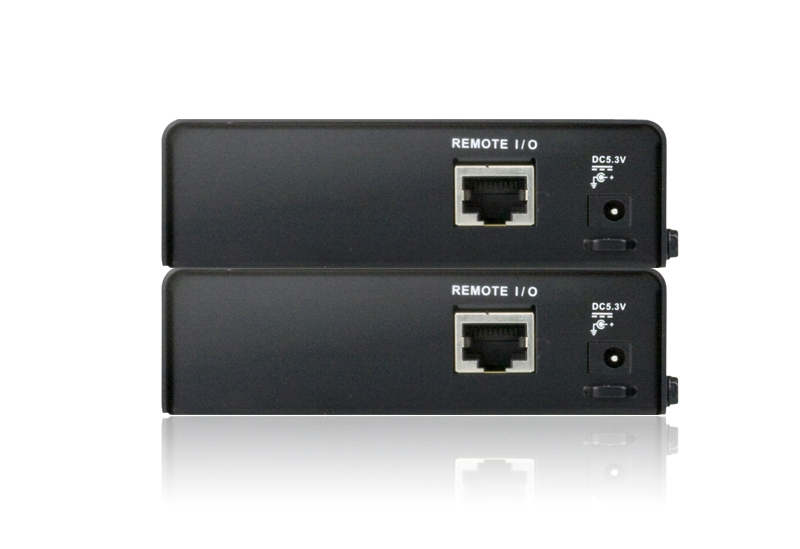

RJ-45 input ports1
RJ-45 output ports1

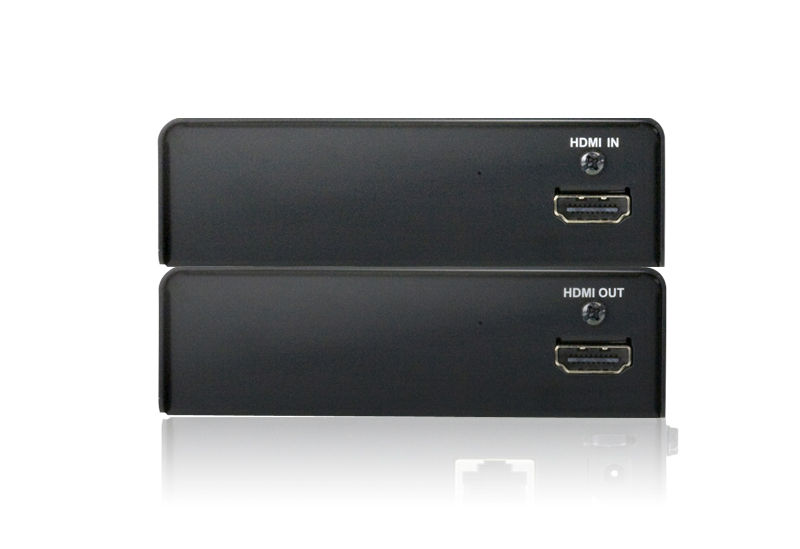

HDMI in1
Number of HDMI outputs1
DC-in jackYes

Power

Operating voltage (transmitter)5.3 V
Operating voltage (receiver)5.3 V
Power consumption (TX)2.22 W
Power consumption (RX)5.06 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight1.16 kg
Receiver dimensions (WxDxH)141.7 x 103 x 30 mm
Receiver weight410 g
Transmitter dimensions (WxDxH)141.7 x 103 x 30 mm
Transmitter weight400 g

Packaging data

Package width100 mm
Package depth283 mm
Package height173 mm
Package weight1.47 kg

Packaging content

AC adapter includedYes
ManualYes
Mounting kitYes

Logistics data

Master (outer) case width292 mm
Master (outer) case length517 mm
Master (outer) case height194 mm
Master (outer) case gross weight7.87 kg
Master (outer) case net weight5.8 kg
Products per master (outer) case5 pc(s)
