ATEN VE810

ATEN VE810

Model VE810EAN 5054484876847

39 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)90 x 57.4 x 24 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
90 x 57.4 x 24 mm
Brand
ATEN
Category
AV Extender
Model
VE810
Part numbers
VE810, VE810-AT-G
EAN / UPC
5054484876847, 672792003165, 4710423777729, 6727920031658
Also known as
ATEN AT-VE810

Specifications

39 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5e
Maximum transfer distance60 m
Audio systemMultichannel
Bandwidth6.75 Gbit/s
Impedance100 Ω
LED indicatorsYes
MaterialMetal
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes1080i, 1080p, 480p, 720p
Product colourBlack

Ports & interfaces

Connectivity technologyWired

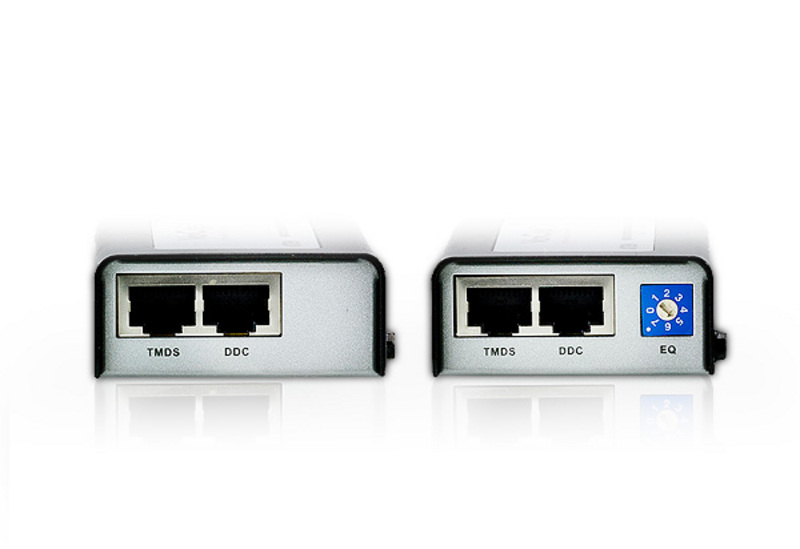

RJ-45 input ports2
RJ-45 output ports2

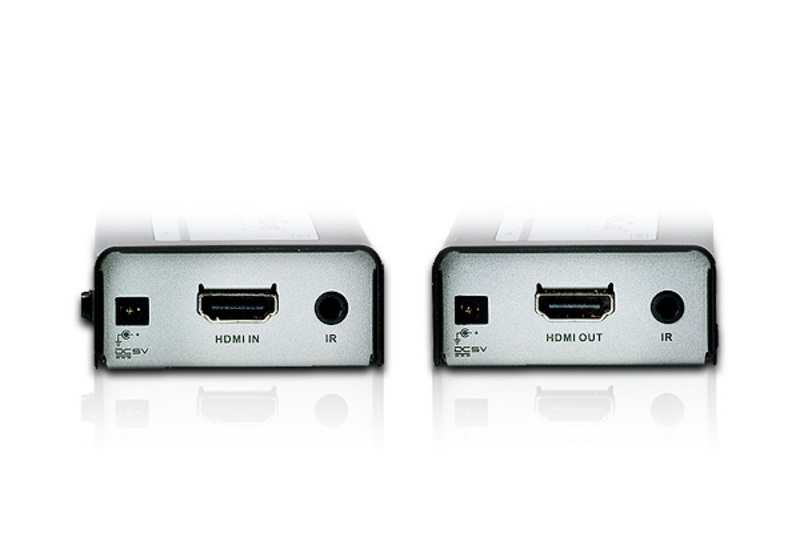

HDMI in1
Number of HDMI outputs1
Audio input1
Audio output1
DC-in jackYes

Power

Operating voltage5 V

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)90 x 57.4 x 24 mm
Receiver weight160 g
Transmitter dimensions (WxDxH)90 x 57.4 x 24 mm
Transmitter weight160 g

Packaging data

Package width59 mm
Package depth239 mm
Package height160 mm

Packaging content

AC adapter includedYes
Quick start guideYes
ManualYes

Logistics data

Master (outer) case width315 mm
Master (outer) case length490 mm
Master (outer) case height338 mm
Master (outer) case gross weight13.4 kg
Master (outer) case net weight10.6 kg
