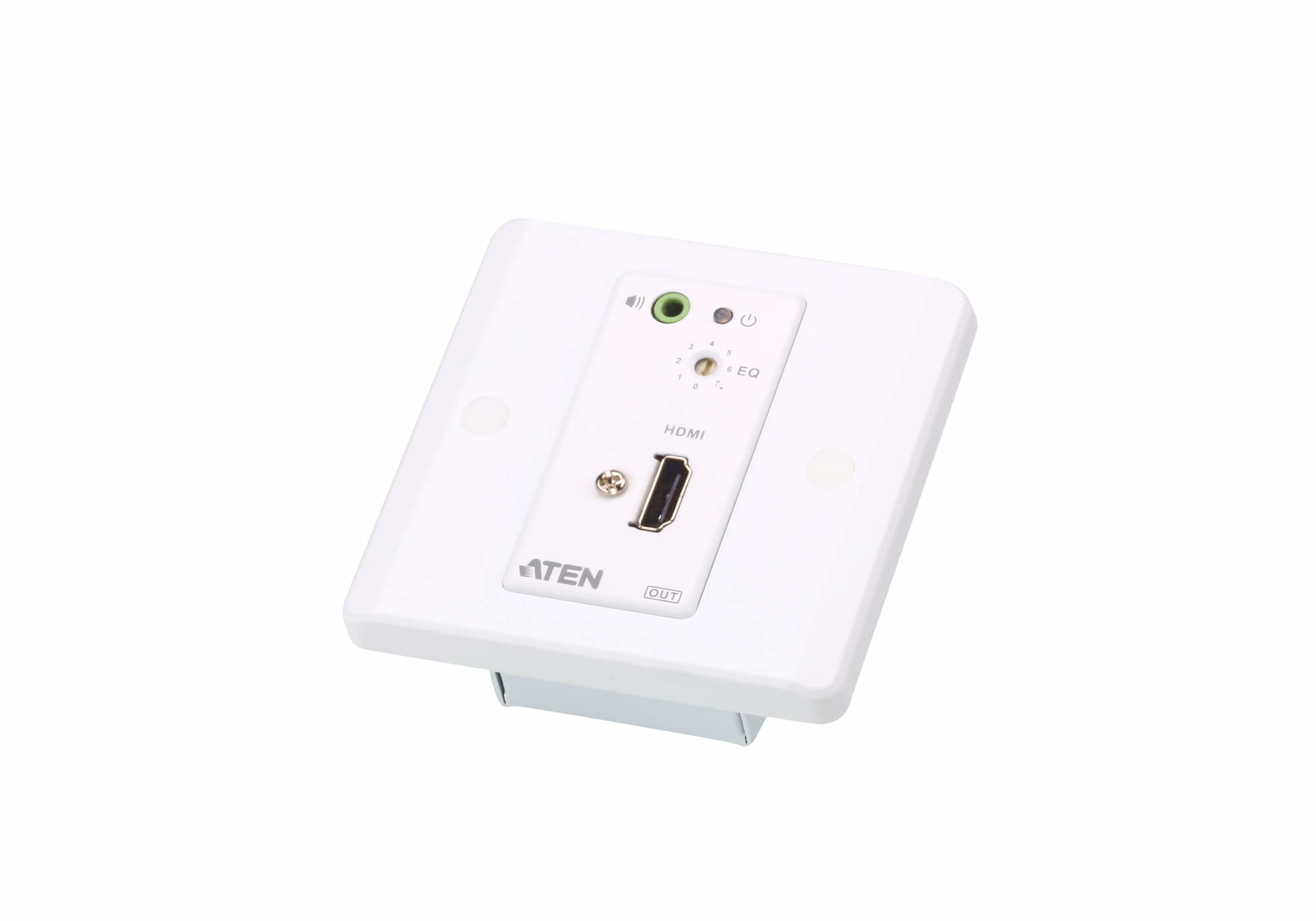

HDMI/Audio Over Cat5 Extender with MK
Model VE807-AT-GEAN 4719264645716
53 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight500 g
- ColourWhite
- Operating voltage (transmitter)9 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 500 g
- Colour
- White
- Operating voltage (transmitter)
- 9 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE807-AT-G
- Part number
- VE807-AT-G
- EAN / UPC
- 4719264645716
- Also known as
- ATEN HDMI/Audio Over Cat5 Extender with MK
Specifications
53 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 60 m |
| Audio system | stereo |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported video modes | 1080i, 1080p |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 9 V |
| Operating voltage (receiver) | 9 V |
| Power consumption (transmitter) (max) | 1.35 W |
| Power consumption (receiver) (max) | 0.81 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 500 g |
| Receiver dimensions (WxDxH) | 44.4 x 68.6 x 40 mm |
| Receiver weight | 180 g |
| Transmitter dimensions (WxDxH) | 44.4 x 68.6 x 40 mm |
| Transmitter weight | 180 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 610 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.41 kg |
| Master (outer) case net weight | 2.5 kg |
| Products per master (outer) case | 5 pc(s) |
