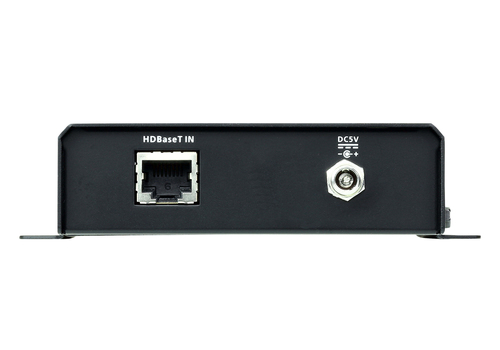

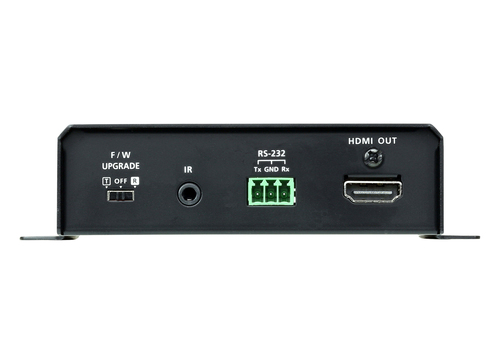

ATEN HDMI HDBaseT-Lite/Class B Receiver with POH (70m)

ATEN HDMI HDBaseT-Lite/Class B Receiver with POH (70m)

Model VE802R-AT-GEAN 4719264642838

42 specifications
  • ConnectivityWired
  • TypeAV receiver
  • Weight654 g
  • ColourBlack
  • AC input frequency60 Hz
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV receiver
Weight
654 g
Colour
Black
AC input frequency
60 Hz
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE802R-AT-G
Part number
VE802R-AT-G
EAN / UPC
4719264642838
Also known as
ATEN HDMI HDBaseT-Lite/Class B Receiver with POH (70m)

Specifications

42 specifications in 8 groups

Features

TypeAV receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5, Cat6, Cat6a
Maximum transfer distance70 m
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
Consumer Electronics Control (CEC) supportYes
HDCPYes
HDCP version2.2
Impedance100 Ω
MaterialMetal
Supported graphics resolutions4096 x 2160
Supported video modes2160p
Product colourBlack

Ports & interfaces

Connectivity technologyWired
Number of HDMI outputs1
RS-232 output ports1
Audio output1
Remote (IR) output1
DC-in jackYes

Power

AC input frequency60 Hz
Operating voltage5 V
Power consumption (receiver) (max)4.37 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight654 g
Receiver dimensions (WxDxH)123 x 140.4 x 30 mm
Receiver weight460 g

Packaging data

Quantity per pack1 pc(s)
Package width59 mm
Package depth239 mm
Package height160 mm
Package weight768 g

Packaging content

ManualYes
IR receiver includedYes

Logistics data

Master (outer) case width250 mm
Master (outer) case length325 mm
Master (outer) case height175 mm
Master (outer) case gross weight4.32 kg
Master (outer) case net weight3.27 kg
Products per master (outer) case5 pc(s)
