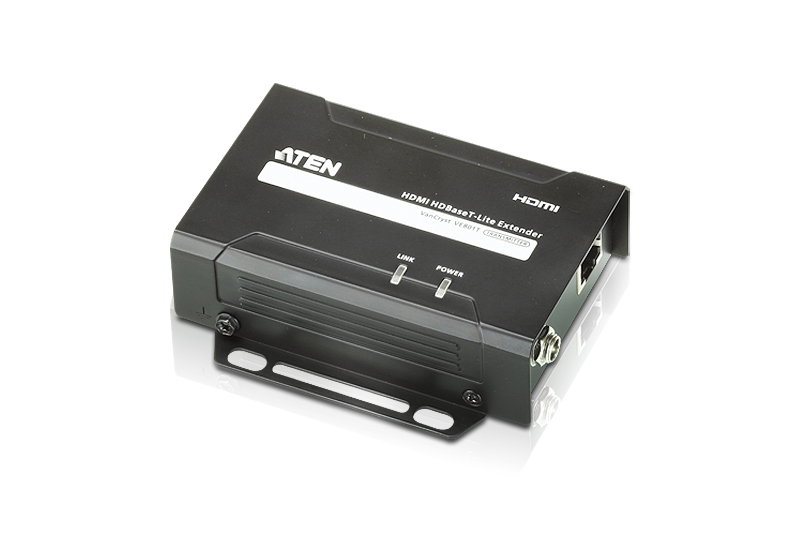

VE801T-AT-U AV extender AV transmitter Black
Model VE801T-AT-U
26 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight240 g
- ColourBlack
- Power consumption (typical)1.85 W
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 240 g
- Colour
- Black
- Power consumption (typical)
- 1.85 W
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE801T-AT-U
- Part number
- VE801T-AT-U
- Also known as
- ATEN VE801T-AT-U AV extender AV transmitter Black
Specifications
26 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Supported video modes | 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.85 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 103 mm |
| Height | 30 mm |
| Weight | 240 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
