VE800AR AV extender AV receiver Black
Model VE800AREAN 4719264642272
26 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)55 x 90 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 55 x 90 x 23 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE800AR
- Part numbers
- VE800AR, VE800AR-AT-E, VE800AR-AT-G
- EAN / UPC
- 4719264642272, 672792005763, 4710423777767
- Also known as
- ATEN VE800AR AV extender AV receiver Black
Specifications
26 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Impedance | 100 Ω |
| Material | Metal |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080i, 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

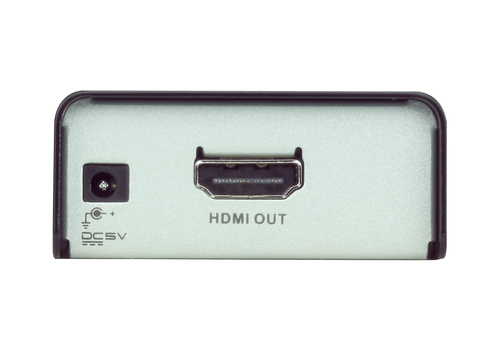

| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (receiver) (max) | 0.75 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 55 x 90 x 23 mm |
| Receiver weight | 160 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
