HDMI Over Cat5e/6 Audio/Video Extender (60m)
Model VE800AEAN 700315919799
36 specifications
- ConnectivityWired
- TypeAV receiver
- Weight484 g
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Width55 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 484 g
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Width
- 55 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE800A
- Part numbers
- VE800A, VE800A-AT-G
- EAN / UPC
- 700315919799, 4719264642241, 672792005749, 5055309615559
- Also known as
- ATEN HDMI Over Cat5e/6 Audio/Video Extender (60m)
Specifications
36 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 3 m |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |

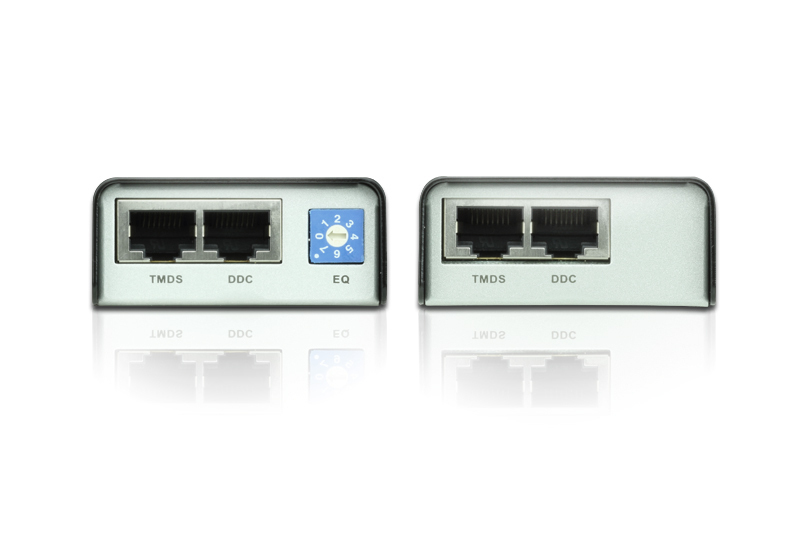

| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 0 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 90 mm |
| Height | 22 mm |
| Weight | 484 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 644 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.52 kg |
| Master (outer) case net weight | 2.42 kg |
| Products per master (outer) case | 5 pc(s) |
