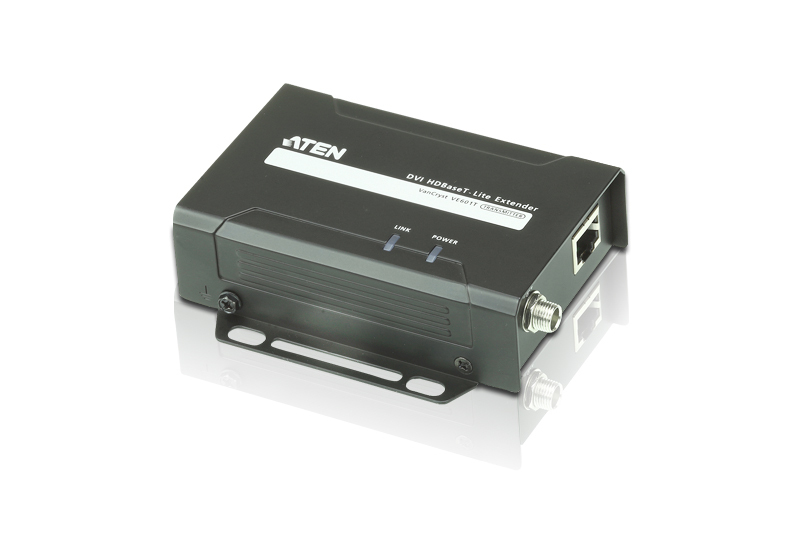

VE601T-AT-E AV extender AV transmitter Black
Model VE601T-AT-E
28 specifications
- ConnectivityWired
- TypeAV transmitter
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
- Transmitter dimensions (WxDxH)87 x 103 x 30 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Transmitter dimensions (WxDxH)
- 87 x 103 x 30 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE601T-AT-E
- Part number
- VE601T-AT-E
- Also known as
- ATEN VE601T-AT-E AV extender AV transmitter Black
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Cable length | 1.8 m |
| HDCP | Yes |
| Impedance | 100 Ω |
| Material | Metal |
| Rack mounting | Yes |
| Resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |

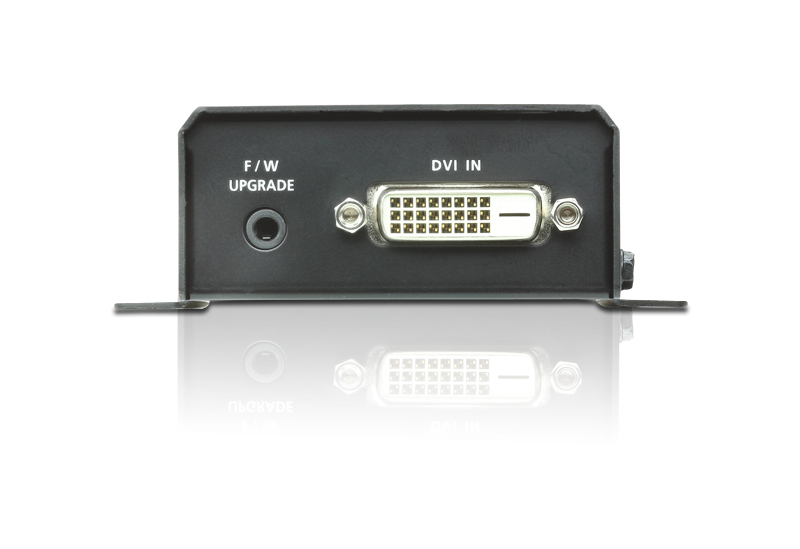

| DVI input ports | 1 |
| Video in | DVI-D |

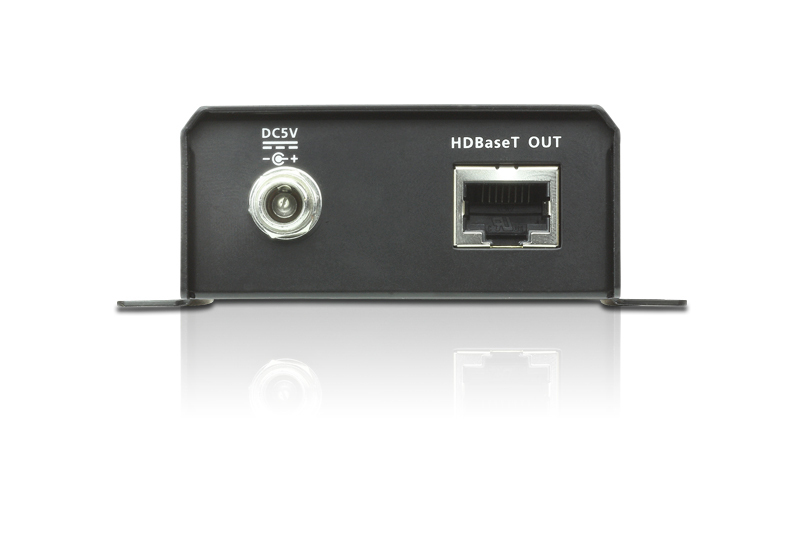

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 1.85 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter dimensions (WxDxH) | 87 x 103 x 30 mm |
| Transmitter weight | 250 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
