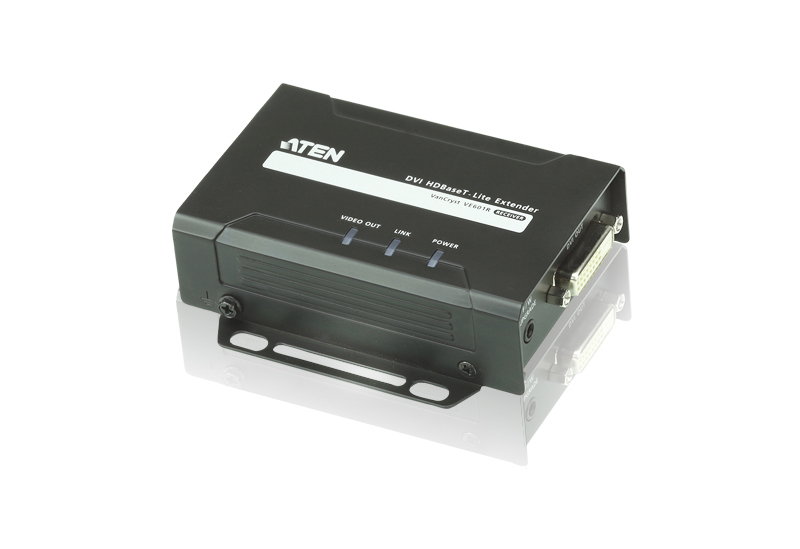

VE601R-AT-E AV extender AV receiver Black
Model VE601R-AT-E
21 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)87 x 102 x 30 mm
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 87 x 102 x 30 mm
- Compliance certificates
- RoHS
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE601R-AT-E
- Part number
- VE601R-AT-E
- Also known as
- ATEN VE601R-AT-E AV extender AV receiver Black
Specifications
21 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Supported video modes | 1080p |
| Product colour | Black |
| HDBaseT certified | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

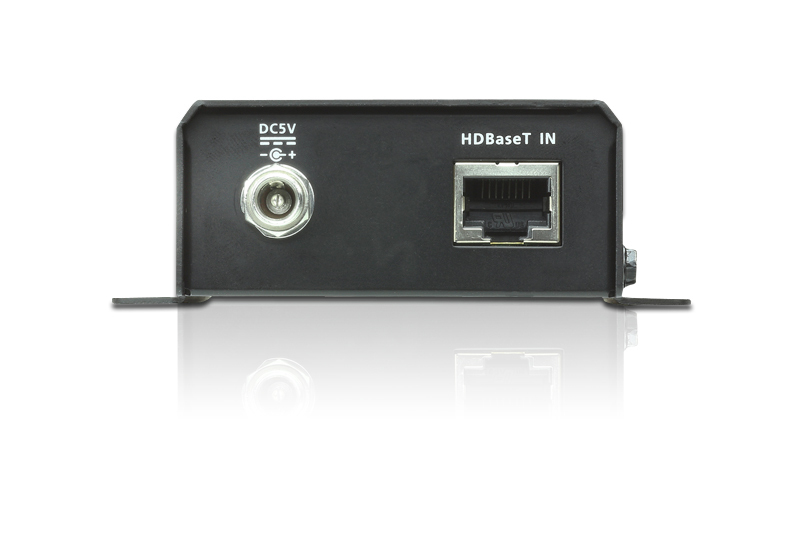

| HDBaseT port | Yes |

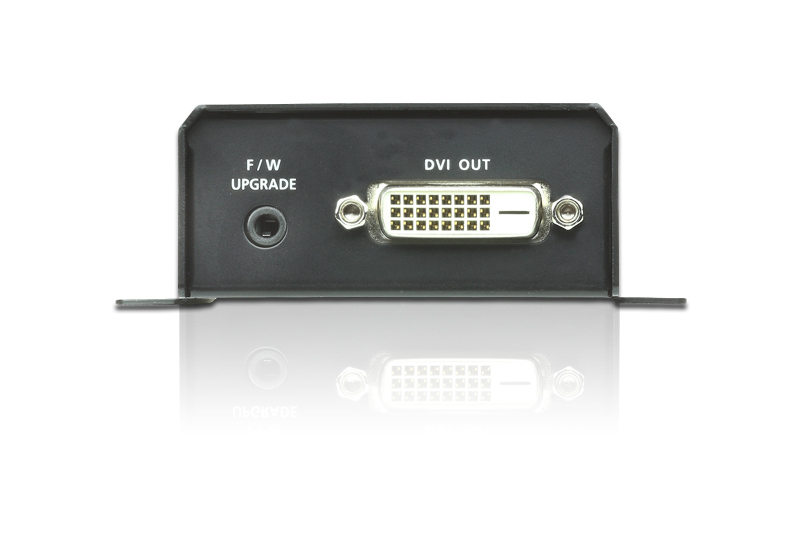

| DVI input ports | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 87 x 102 x 30 mm |
| Receiver weight | 250 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
