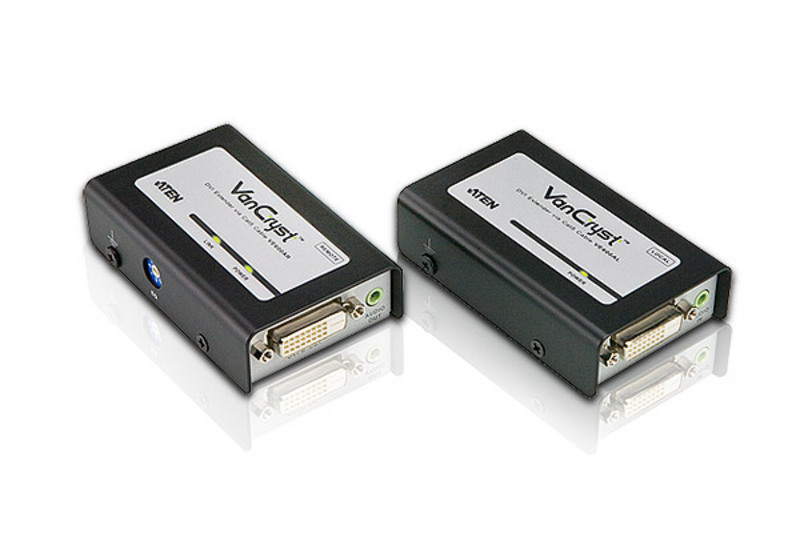

DVI Over Cat5e/6 Audio/Video Extender (60m)
Model VE600A-AT-GEAN 999997176815
49 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight490 g
- ColourBlack
- Power consumption (max)2.05 W
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 490 g
- Colour
- Black
- Power consumption (max)
- 2.05 W
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE600A-AT-G
- Part number
- VE600A-AT-G
- EAN / UPC
- 999997176815, 4710423777736, 7072262008929
- Also known as
- ATEN DVI Over Cat5e/6 Audio/Video Extender (60m)
Specifications
49 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Impedance | 100 Ω |
| Material | Metal |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080i, 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |

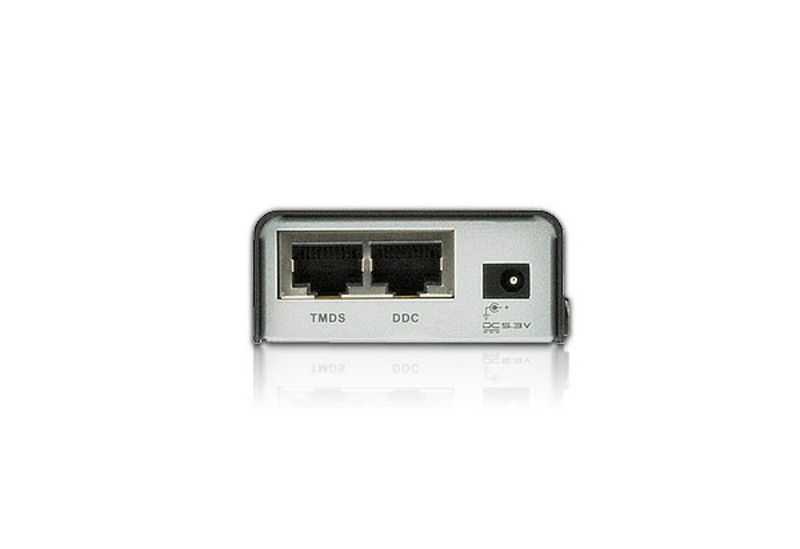

| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| DVI input ports | 2 |
| DVI output ports | 2 |

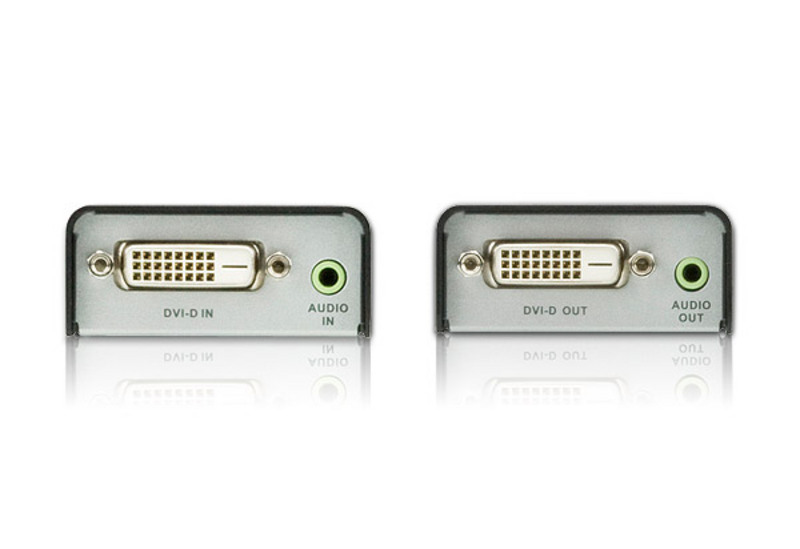

| Video in | 1 x DVI-D |
| Video out | 1 x DVI-D |
| Audio input | 1 |
| Audio output | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.05 W |
| Power consumption (transmitter) (max) | 1.56 W |
| Power consumption (receiver) (max) | 0.76 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 490 g |
| Receiver dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Transmitter weight | 170 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Grounding wire | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 14 kg |
| Master (outer) case net weight | 9.8 kg |
| Products per master (outer) case | 20 pc(s) |
