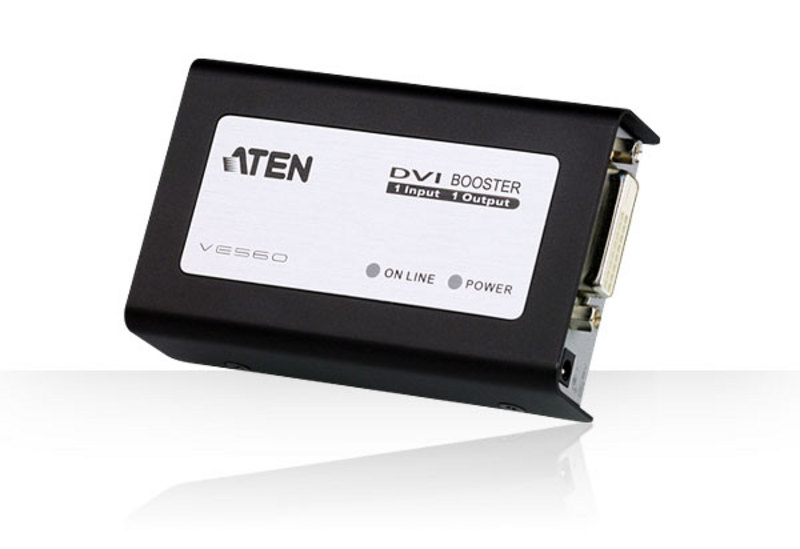

VE560-AT-G AV extender AV transmitter Black
Model VE560-AT-GEAN 5711045064258
33 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight160 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 160 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE560-AT-G
- Part number
- VE560-AT-G
- EAN / UPC
- 5711045064258
- Also known as
- ATEN VE560-AT-G AV extender AV transmitter Black
Specifications
33 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 50 m |
| Bandwidth | 165 MHz |
| Bandwidth | 4.95 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Wall mountable | Yes |
| Product colour | Black |
| Windows operating systems supported | Windows 2000, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

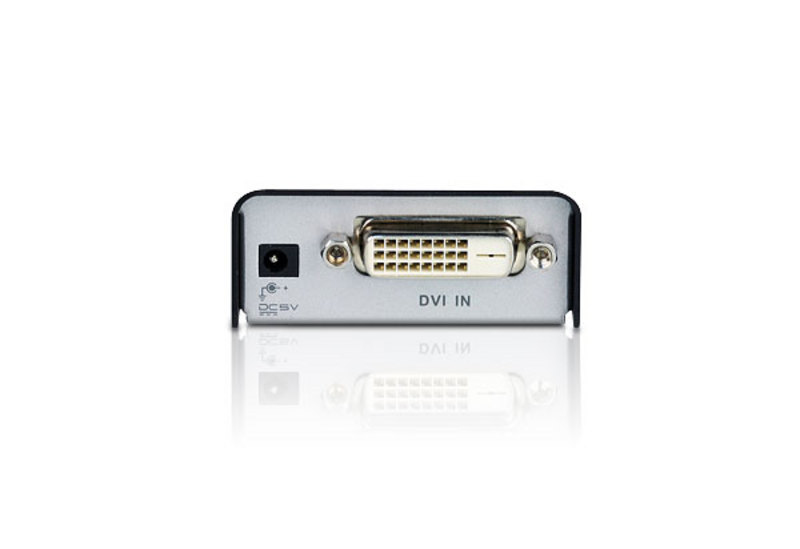

| DVI input ports | 1 |

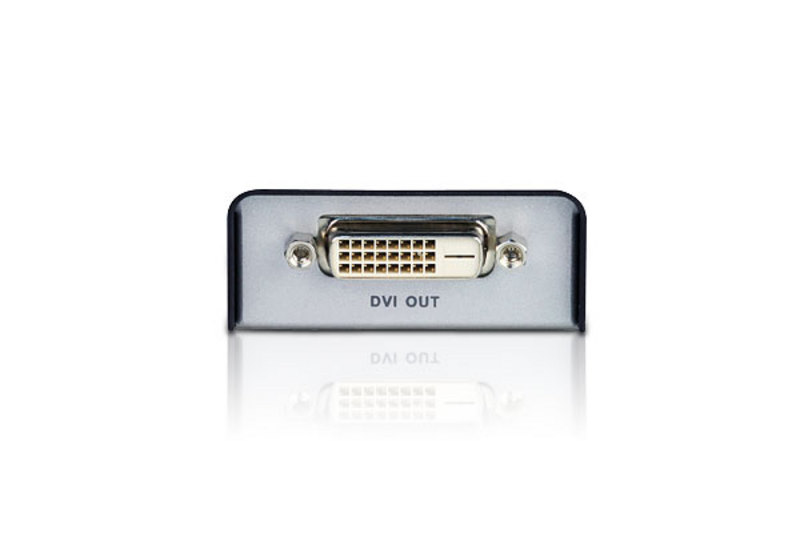

| DVI output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 0.86 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 55 mm |
| Height | 24 mm |
| Weight | 160 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
