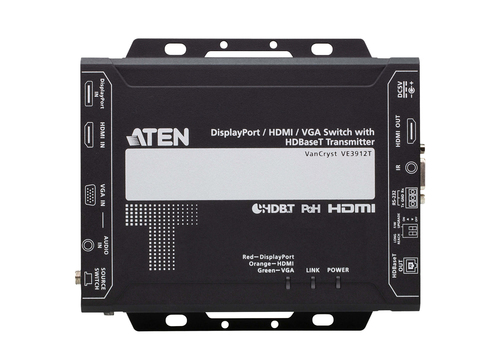

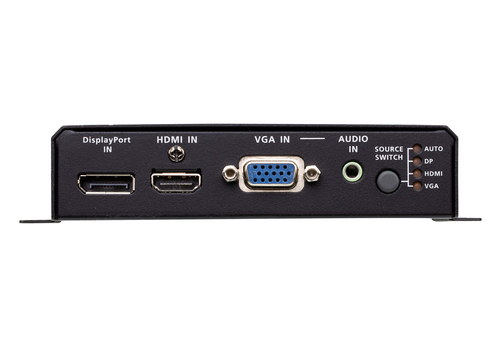

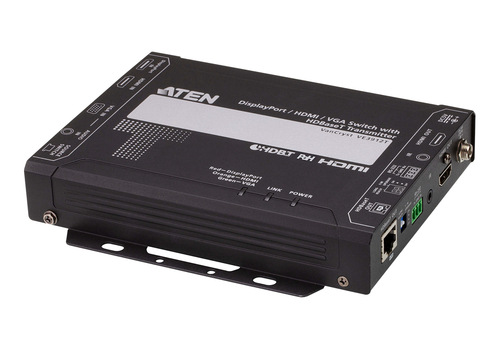

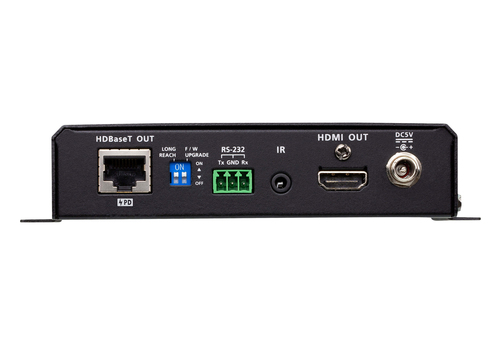

VE3912T AV extender AV transmitter Black
Model VE3912TEAN 672792011627
44 specifications
- Power8.77 W
- ConnectivityWired
- TypeAV transmitter
- Weight650 g
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
Overview
- Power
- 8.77 W
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 650 g
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE3912T
- Part number
- VE3912T
- EAN / UPC
- 672792011627
- Also known as
- ATEN VE3912T AV extender AV transmitter Black
Specifications
44 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| HDCP pass-through | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Consumer Electronics Control (CEC) support | Yes |
| Control type | Buttons |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| Material | Metal |
| On/off switch | Yes |
| Power | 8.77 W |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| Video in | 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black) |
| Video out | 1 x HDMI Type A Female (Black) |
| AUX in | Yes |
| Audio input | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x DisplayPort Female (Black) |
| VGA (D-Sub) ports quantity | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 8.77 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 147 mm |
| Depth | 173 mm |
| Height | 30 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
