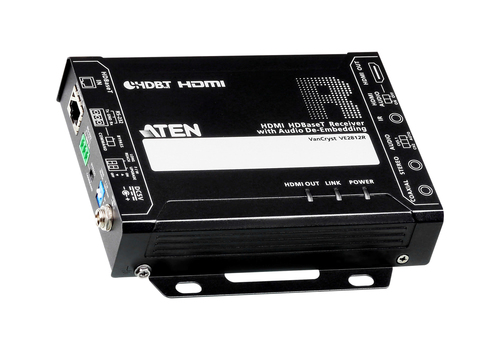

HDMI HDBaseT Receiver W/Audio De-embeddi
Model VE2812R-AT-GEAN 2000001220849
57 specifications
- ConnectivityWired
- TypeAV receiver
- Weight720 g
- ColourBlack
- Operating voltage (receiver)5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 720 g
- Colour
- Black
- Operating voltage (receiver)
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE2812R-AT-G
- Part number
- VE2812R-AT-G
- EAN / UPC
- 2000001220849, 4719264648786
- Also known as
- ATEN HDMI HDBaseT Receiver W/Audio De-embeddi
Specifications
57 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Baud rate | 19.2 Kbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p |
| Product colour | Black |

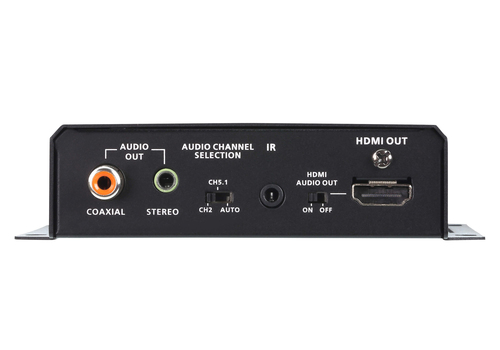

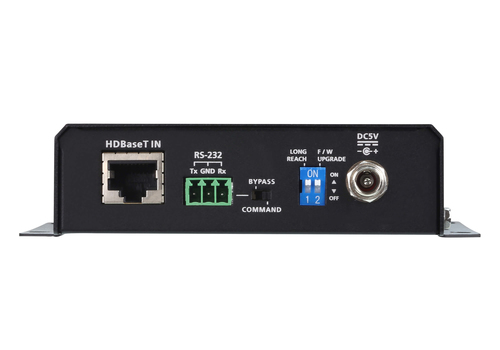

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDBaseT port | Yes |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| Digital audio coaxial out | 2 |
| Video out | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| Audio output | 2 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 4.98 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101 mm |
| Depth | 136 mm |
| Height | 29 mm |
| Weight | 720 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 740 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.8 kg |
| Master (outer) case net weight | 3.6 kg |
| Products per master (outer) case | 5 pc(s) |
