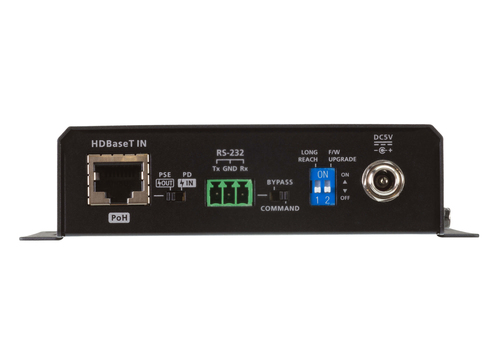

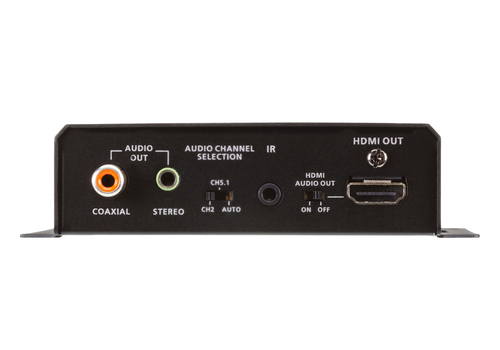

HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)
ATEN

HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)

Model VE2812PRPart no. VE2812PR-AT-GEAN 4710469341199

57 specifications
  • ConnectivityWired
  • TypeAV receiver
  • Weight500 g
  • ColourBlack
  • Power source typeDC
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV receiver
Weight
500 g
Colour
Black
Power source type
DC
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE2812PR
Part numbers
VE2812PR-AT-G, VE2812PR-AT-U
EAN / UPC
4710469341199
Also known as
ATEN HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)

Specifications

57 specifications in 9 groups

Features

TypeAV receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance100 m
Maximum refresh rate60 Hz
IR pass-throughYes
Electrostatic Discharge (ESD) protectionYes
Electrostatic Discharge (ESD) protection15 kV
3DYes
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
Baud rate115.2 Kbit/s
Consumer Electronics Control (CEC) supportYes
Firmware upgradeableYes
HDCPYes
HDCP version2.2
Impedance100 Ω
MaterialMetal
Plug and PlayYes
Rubber feetYes
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
HDBaseT portYes
Number of HDMI outputs1
Digital audio coaxial out1
Audio output3.5mm
Remote (IR) output1
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

Power source typeDC
Operating voltage5 V
Power consumption (typical)5.83 W
External power adapterYes

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width123 mm
Depth145.3 mm
Height30 mm
Weight500 g

Packaging data

Package width59 mm
Package depth239 mm
Package height160 mm
Package weight760 g

Packaging content

AC adapter includedYes
ManualYes

Technical details

Country of originTaiwan
Package volume2265.35 cm³

Logistics data

Master (outer) case width250 mm
Master (outer) case length325 mm
Master (outer) case height175 mm
Master (outer) case gross weight4.19 kg
Master (outer) case net weight3.1 kg
Master (outer) case volume14158.42 cm³
