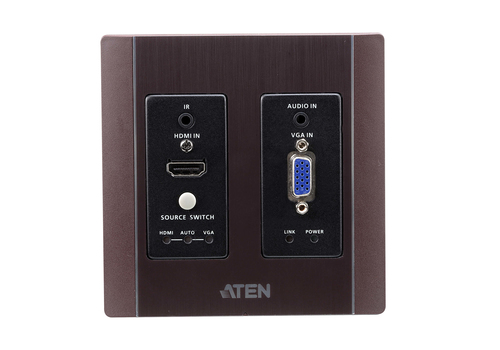

VE2812AUST2-AT-U AV extender AV transmitter Black, Brown
Model VE2812AUST2-AT-U
25 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight210 g
- ColourBlack, Brown
- Operating relative humidity (H-H)0 - 80%
- Width87.9 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 210 g
- Colour
- Black, Brown
- Operating relative humidity (H-H)
- 0 - 80%
- Width
- 87.9 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE2812AUST2-AT-U
- Part number
- VE2812AUST2-AT-U
- Also known as
- ATEN VE2812AUST2-AT-U AV extender AV transmitter Black, Brown
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black, Brown |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Audio input | 1 |
| Remote (IR) input | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87.9 mm |
| Depth | 104.2 mm |
| Height | 51.9 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
