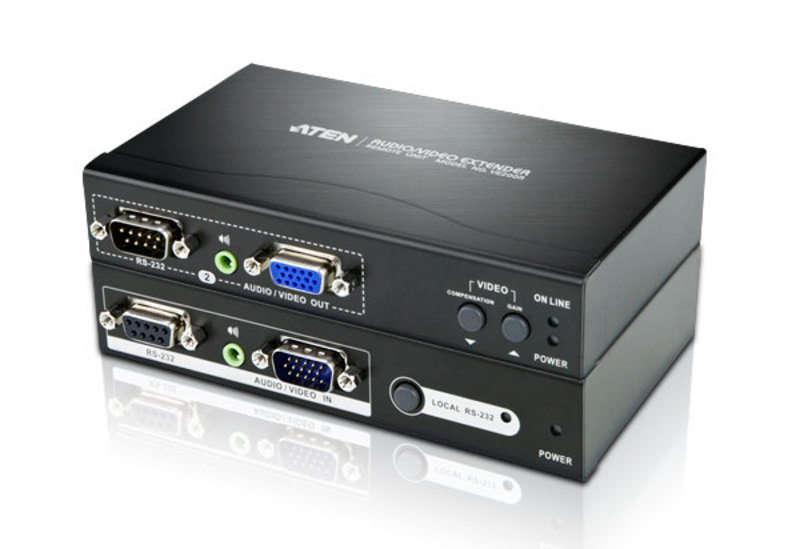

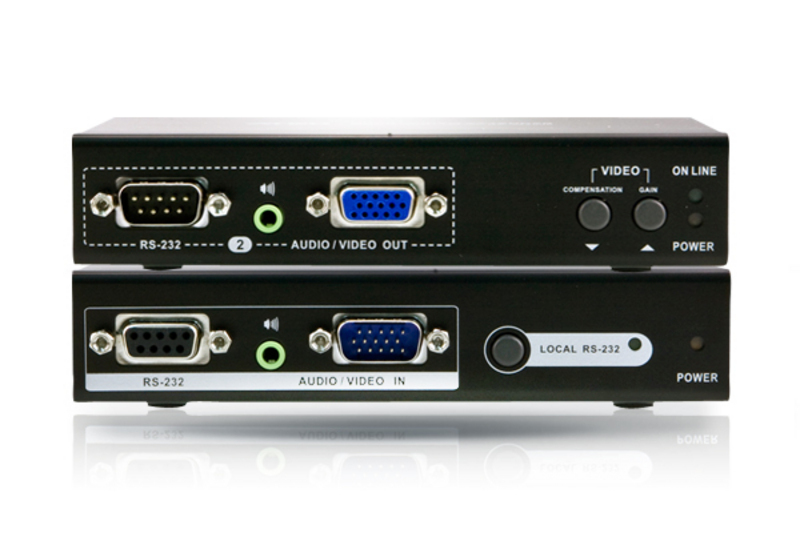

ATEN VE200-AT-U AV extender AV transmitter & receiver Black

ATEN VE200-AT-U AV extender AV transmitter & receiver Black

Model VE200-AT-U

36 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Operating voltage (transmitter)5.3 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)139 x 88 x 28.6 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Operating voltage (transmitter)
5.3 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
139 x 88 x 28.6 mm
Brand
ATEN
Category
AV Extender
Model
VE200-AT-U
Part number
VE200-AT-U
Also known as
ATEN VE200-AT-U AV extender AV transmitter & receiver Black

Specifications

36 specifications in 6 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5, Cat5e
Maximum transfer distance200 m
Maximum refresh rate60 Hz
Cable length1.8 m
Control typeButtons
Impedance75 Ω
LED indicatorsYes
MaterialMetal
Rack mountingYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Product colourBlack

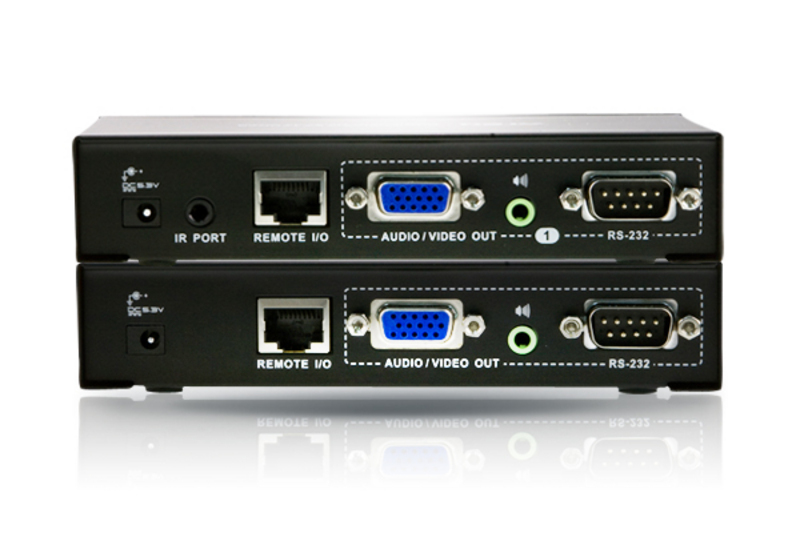

Ports & interfaces

Connectivity technologyWired
VGA (D-Sub) output ports1
RS-232 output ports2
Audio output2
DC-in jackYes

Power

Operating voltage (transmitter)5.3 V
Operating voltage (receiver)5.3 V
Power consumption (TX)3.65 W
Power consumption (RX)2.22 W
External power adapterYes

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)139 x 88 x 28.6 mm
Receiver weight350 g
Transmitter dimensions (WxDxH)139 x 88 x 28.6 mm
Transmitter weight350 g

Packaging content

AC adapter includedYes
ManualYes
IR receiver includedYes
Mounting kitYes
Remote control includedYes
