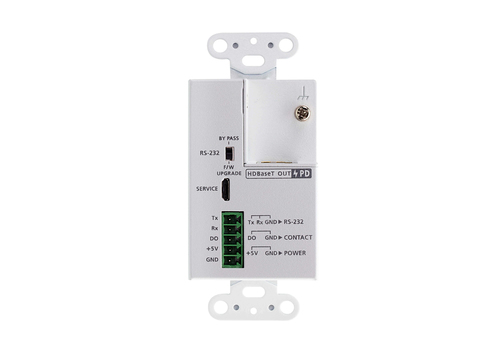

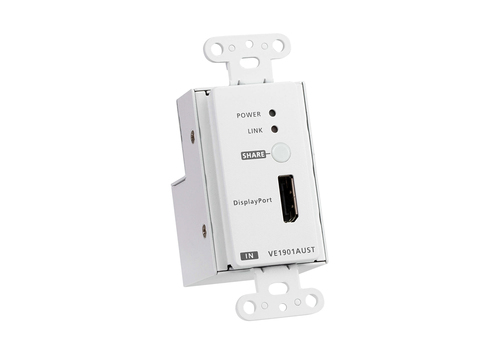

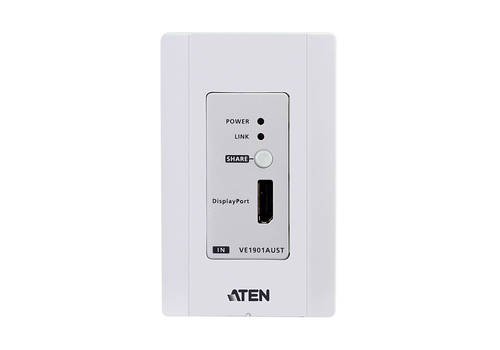

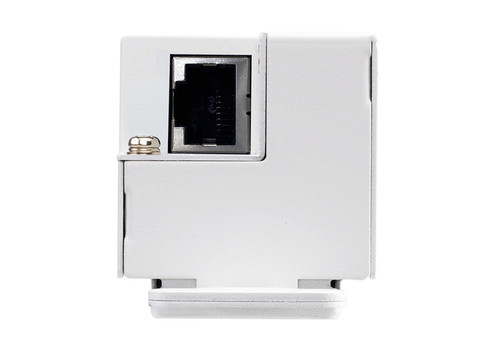

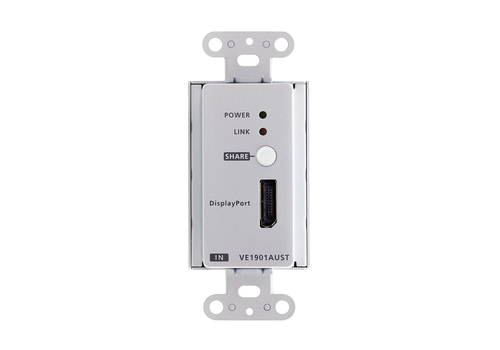

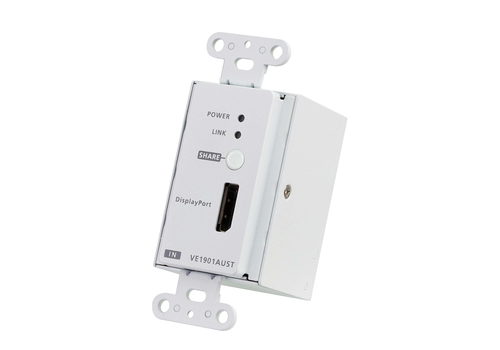

DisplayPort HDBaseT-Lite Transmitter with US Wall Plate / PoH
Model VE1901AUST-AT-U
29 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight210 g
- ColourSilver
- Power consumption (typical)2.97 W
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 210 g
- Colour
- Silver
- Power consumption (typical)
- 2.97 W
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE1901AUST-AT-U
- Part number
- VE1901AUST-AT-U
- Also known as
- ATEN DisplayPort HDBaseT-Lite Transmitter with US Wall Plate / PoH
Specifications
29 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 297 MHz |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| LED indicators | Link, Power |
| Material | Metal |
| Plug and Play | Yes |
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| DisplayPorts in | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.97 W |
| Power consumption (max) | 3.71 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 104.1 mm |
| Height | 50 mm |
| Weight | 210 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Packaging content | 1x 5-pin terminal block 1x faceplate 2x flat head screws |
