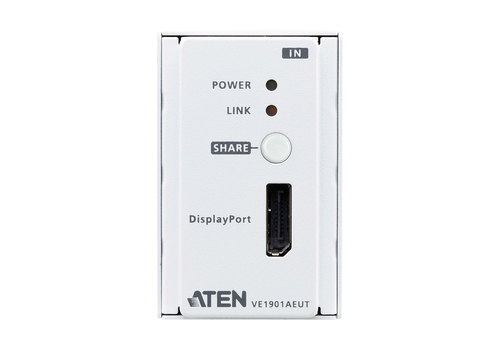

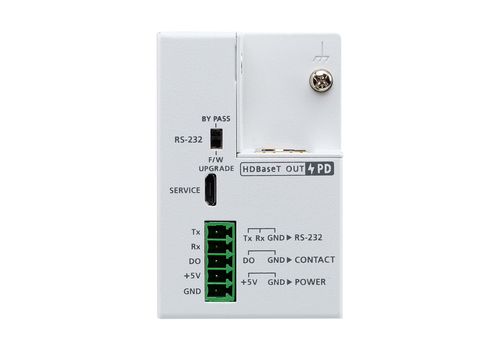

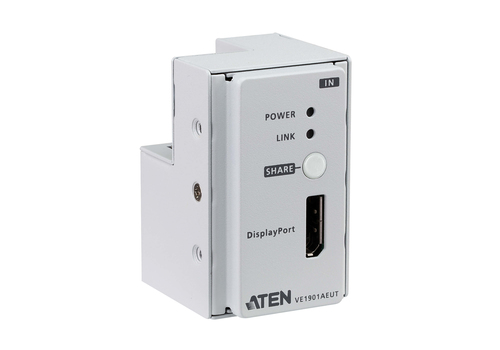

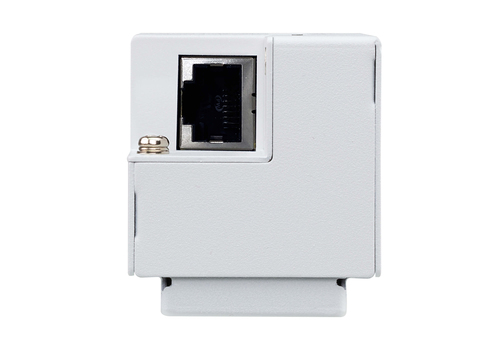

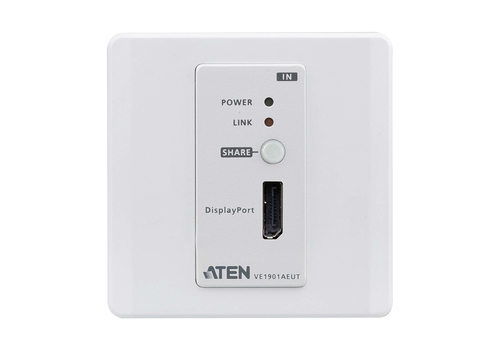

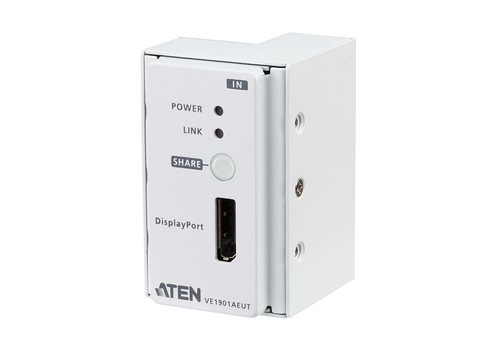

DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
Model VE1901AEUT-AT-E
40 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight200 g
- ColourWhite
- Operating relative humidity (H-H)0 - 80%
- Width44.4 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 200 g
- Colour
- White
- Operating relative humidity (H-H)
- 0 - 80%
- Width
- 44.4 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE1901AEUT-AT-E
- Part number
- VE1901AEUT-AT-E
- Also known as
- ATEN DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 60 m |
| Electrostatic Discharge (ESD) protection | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 297 MHz |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Wall mountable | Yes |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| DisplayPorts in | 1 |
| Serial interface type | RS-232 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44.4 mm |
| Depth | 68.6 mm |
| Height | 50 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 590 g |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Package volume | 2265.35 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.57 kg |
| Master (outer) case net weight | 1.85 kg |
| Master (outer) case volume | 14158.42 cm³ |
| Products per master (outer) case | 5 pc(s) |
