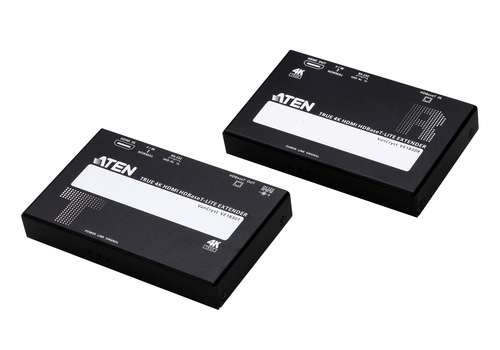

VE1830-AT-E AV extender AV transmitter & receiver Black
Model VE1830-AT-E
31 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)71.9 x 118.9 x 16.8 mm
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 71.9 x 118.9 x 16.8 mm
- Compliance certificates
- RoHS
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE1830-AT-E
- Part number
- VE1830-AT-E
- Also known as
- ATEN VE1830-AT-E AV extender AV transmitter & receiver Black
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 5 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| Material | Metal |
| On/off switch | Yes |
| Product colour | Black |

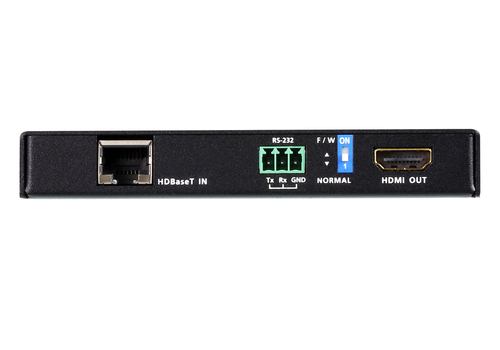

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 71.9 x 118.9 x 16.8 mm |
| Receiver weight | 120 g |
| Transmitter dimensions (WxDxH) | 71.9 x 118.9 x 16.8 mm |
| Transmitter weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
